Teltonika RUT901 industrial LTE router with Ethernet backup, 1x WAN 3x LAN, LTE Cat4/3G/2G, Wi-Fi

Teltonika RUT901 industrial LTE router with Ethernet backup, 1x WAN 3x LAN, LTE Cat4/3G/2G, Wi-Fi

152,52 €

SKU: PhonesTELTONIKA-RUT901-IND-12709 Category: Tag:

Description

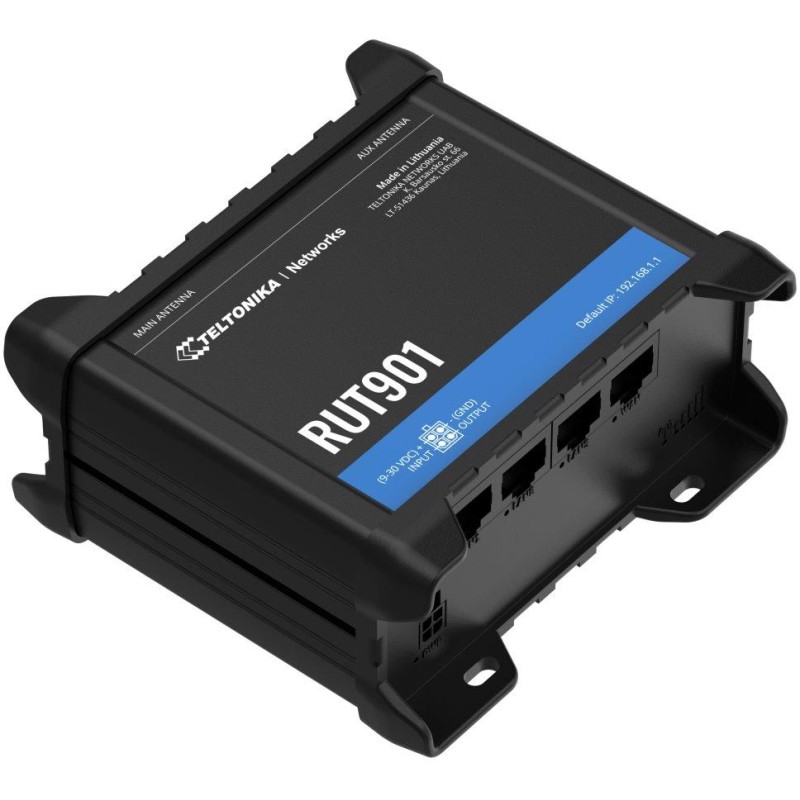

Teltonika RUT901

Industrial mobile router that provides reliable connectivity in demanding industrial environments (automation, transportation, manufacturing, etc.).

The RUT901 delivers the cutting-edge features of its predecessors, the RUT950 and RUT951. The device delivers high performance, providing automatic WAN failover to an available backup connection, ensuring network continuity and eliminating outages.

  • Connectivity: 4G/LTE (Cat 4), 3G, 2G
  • Wi-Fi: wireless access point with Hotspot function
  • Dual SIM: automatic failover, WAN backup and other switching options
  • Protocols: Support for many protocols including MQTT, Modbus TCP and DNP3

More detailed information can be found in the attached manual, in the documents tab or on the pagewiki.teltonika-networks.com/view/RUT901 .

BASIC SPECIFICATIONS

Wi-Fi standard: IEEE 802.11b/g/n

Data transfer speed: 4G (LTE) – up to 150 Mbps, 3G – up to 21 Mbps, 2G – up to 236.8 kbps

Antenna: 2× SMA connector (LTE), 2× RP-SMA connector (Wi-Fi)

Ports: 4x RJ-45 (3x LAN, 1x WAN), 2x SIM slot (mini SIM, 2FF format)

PoE support: yes, passive PoE

Power supply: DC 9-30V (4pin industrial connector)

Dimensions: 110 × 100 × 50 mm

Additional information

Brand

TELTONIKA
Model

Teltonika
Execution

Freestanding
Color

Black
Warranty period for registration number (months)

26
Manufacturer

TELTONICS
Warranty length (months)

26
Processed

Approved
Wi-Fi

Yes
Weight (g)

297
RJ-45 (number)

4
Weight (kg)

0.297
Dimensions

110 × 100 × 50mm
Outdoor use

No
Indoor use

Yes
Gigabit LAN

No
WEP security

Yes
PoE support

Yes
Port speed

100 Mbps
Operating temperature min. (°C)

-40
Transmission speed (Mbps)

150 (LTE)
Wi-Fi standard

802.11b/g/n
Wi-Fi frequency

2400MHz
Standards

802.11b/g/n, 802.11e, 802.3, 802.3u
WPA2 security

Yes
Operating temperature max. (°C)

75
Power supply (V)

9 – 30 (DST)
WPA security

Yes
Operating mode

AP, STA
Encryption

WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP, WPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE; AES-CCMP, TKIP
DHCP

Yes
Antenna design

Removable
HIND

Yes
SIM slot

Yes
Consumption (W)

7
Degree of protection

IP30
Interface

LAN, WAN, Wi-Fi, 2G, 3G, 4G/LTE
Conformity

CE/RED, UKCA, EAC, UCRF, EN, ESD, EFT, EN IEC
4G/LTE support

Yes
Connector

4× RJ-45, 2× SIM, 1× 4pin
LED indication

Yes
Power supply max. (jack) (V)

30
NAND (MB)

16
Number of connectable antennas

4
LTE/4G/5G (Mbps)

150
Output to external antenna

Yes
Operating system

RutOS
WPA3 security

Yes
Memory size (MB)

128
Ethernet (Mbps)

100
Processor

MediaTek MIPS 24KEc, 580 MHz
3G support

Yes
Power supply min. (jack) (V)

9
Default IP

192.168.1.1
Default name

Admin
Default password

Admin01
