Teltonika LTE Wi-Fi Router RUT951, 2.4 GHz, 802.11b/g/n, 2/3/4G, LTE

Description

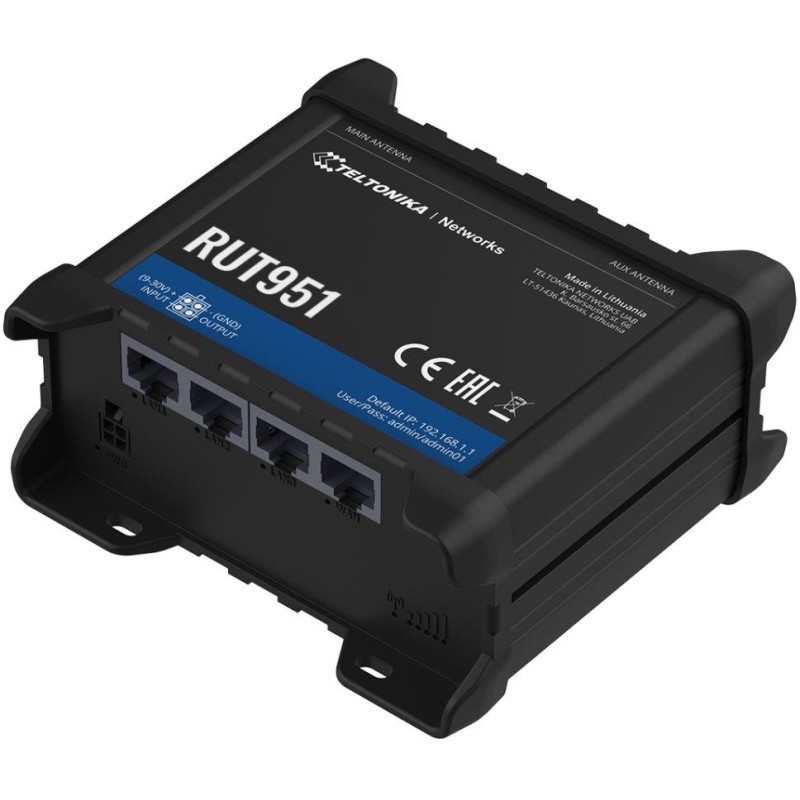

Teltonika RUT951

---

The RUT951 is the equivalent of the RUT950 (code NARTEL0004) . This version has a different but comparable chipset and MediaTek MT7628 CPU.

---

Highly reliable and secure LTE router for professional applications. It offers two SIM card slots , allowing you to use two different mobile service providers and build redundant 4G/LTE or 2G/3G connections with Failover and Fallback functions.

The router will find use, for example, in devices that need to be remotely monitored, such as vending machines, sensors in the energy sector, SCADA systems, public transport vehicles, or Smart City projects.

Mobile part

– Module: 4G (LTE) category 4 – up to 150 Mbps, 3G – up to 42 Mbps, 2G – up to 236.8 kbps

– Status: Signal strength, SINR, RSRPO and RSRQ, data transfer

– SMS notifications

Wireless part

– Wireless modes: IEEE 802.11b/g/n, AP and Station (STA)

– Encryption: WPA2-Enterprise – PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation

– Antennas: 2x SMA for LTE, 2x RP-SMA Wi-Fi

Ethernet part

– 1x WAN 10/100 Mb/s (auto MDI/MDIX)

– 3x LAN 10/100 Mb/s (auto MDI/MDIX)

Network part

– Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)

– Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT

– VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers (allow proper routing of VoIP packets).

– Firewall: defines rules for communication (port forwarding, traffic rules, etc.)

– Network backup: backup with failover (connection/power). VRRP, cellular, network or Wi-Fi.

– Load balancing: optimizes network traffic.

VPN

– OpenVPN: encrypted VPN tunnel between host stations and server, 12 encryption methods

– OpenVPN encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

– IPsec: IKEv1, IKEv2, support for up to 4 VPN IPsec tunnels (instances) with five encryption methods (DES, 3DES, AES128, AES192, AES256)

– GRE: GRE tunnel (Generic Encapsulation Protocol)

– PPTP, L2TP: client/server services can be run simultaneously

– Stunnel: an encrypted network tunnel, mainly for programs that do not support SSL. It allows connecting two networks via an encrypted TCP tunnel, or securing the operation of unencrypted protocols or daemons such as IMAP, MySQL, POP, IRC, and others. It adds TLS encryption functionality to existing clients/servers without any code changes.

– SSTP: SSTP protocol support

Firmware customization

– Operating system: RutOS (OpenWrt based Linux OS)

– Supported programming languages: Busybox shell, Lua, C, C++

– Development tools: GPL package (with development environment)

System characteristics

– CPU: Mediatek MT7628, 580 MHz

– RAM: 128 MB, DDR2

– FLASH memory: 16MB SPI Flash

Power supply

– 4pin DC, 9-30V

– passive PoE (not compatible with 802.3af/at)

– consumption less than 7 W

---

More detailed information can be found in the attached manual, in the documents tab or on the page wiki.teltonika-networks.com/view/RUT951 .

---

BASIC SPECIFICATIONS

Standard: IEEE 802.11b/g/n

Data transfer speed: 4G – up to 150 Mbps, 3G – up to 42 Mbps, 2G – up to 236.8 kbps

Antenna: 2x SMA connector (LTE), 2x RP-SMA connector (Wi-Fi)

Ports: 3x RJ-45 LAN, 1x RJ-45 WAN

Frequency band: 2.4 GHz

Security: WPA2-Enterprise, WPA2-PSK, WPA-PSK, WEP, MAC Filter

PoE support: yes, passive

Power supply: DC 9-30V

Dimensions: 110 x 100 x 50 mm

---

---

---

---
