Teltonika OTD144 outdoor router 4G

Teltonika OTD144 outdoor router 4G

142,16 €

SKU: PhonesTELTONIKA-OTD144-OUT-41121 Category: Tag:

Description

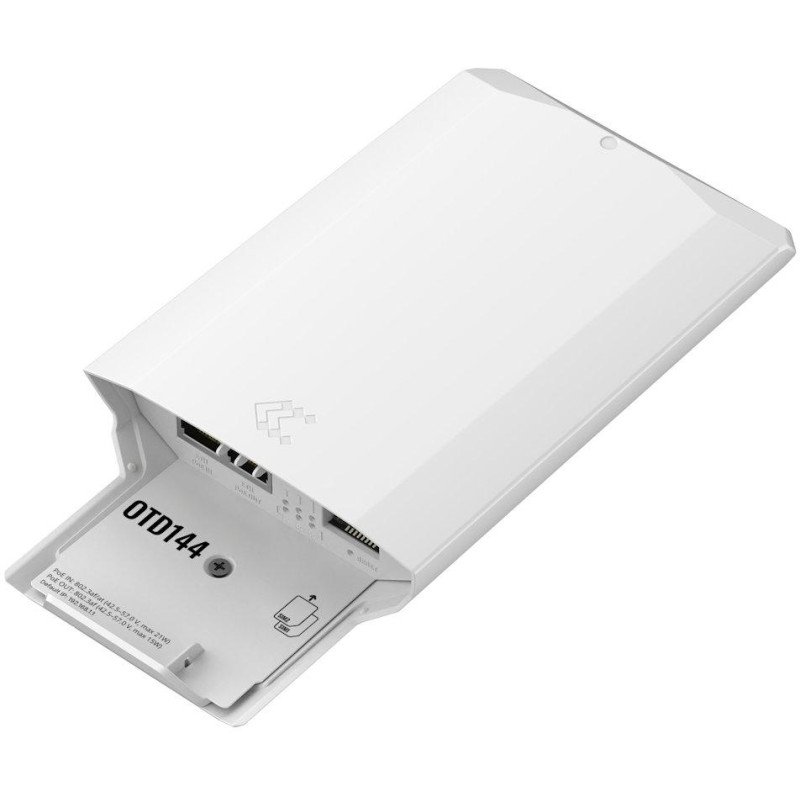

Teltonika OTD144

Outdoor Wi-Fi router with LTE connectivity designed for demanding conditions and reliable networking.

The OTD144 router combines LTE Cat 4 connectivity with integrated Wi-Fi 802.11b/g/n and two Ethernet ports for a comprehensive networking solution for outdoor applications. Equipped with dual SIM with automatic failover, it ensures uninterrupted internet connection even if one network is down.

Rugged design with IP55 protection and operating temperature of -40°C to +70°C allows installation in the most demanding conditions. Power supply via PoE In 802.3af/at with PoE Out option for connected devices simplifies installation with a single cable. RutOS operating system provides advanced features including VPN, firewall and remote management.

  • LTE Cat 4 module with speeds up to 150/50 Mbps and support for 3G/2G networks
  • Dual SIM slots with automatic switching when signal drops
  • Integrated Wi-Fi 802.11b/g/ns supporting up to 50 simultaneous connections
  • Two 10/100 Mbps Ethernet ports with the option of configuring as WAN
  • PoE In 802.3af/at power and PoE Out for powering other devices
  • Rugged IP55 design with operating temperature -40°C to +70°C
  • RutOS operating system with advanced VPN and security features
  • Remote management via RMS platform with FOTA updates
  • Integrated mounting bracket for easy installation

Advanced network features
The router supports a wide range of VPN protocols including OpenVPN, IPsec, WireGuard and more for secure remote connections. An integrated firewall with advanced attack protection and QoS options ensure optimal network performance.

Industrial protocols and IoT integration
Support for BACnet, Modbus, DNP3 and OPC UA protocols enables integration into industrial systems. Compatibility with cloud platforms Azure IoT Hub, AWS IoT Core and others expands remote monitoring capabilities.

Flexible power supply and mounting
PoE power supply of 42.5-57 VDC with a maximum power consumption of 21 W eliminates the need for a separate power cable. Compact dimensions of 110 × 49.3 × 235 mm and weight of 315 g with an integrated mounting bracket allow installation on poles or vertical surfaces.

BASIC SPECIFICATIONS

Processor: Mediatek 580 MHz MIPS 24KEc

PamMemory: 64 MB DDR2 RAM, 16 MB Flash

Mobile module: 4G LTE Cat 4 (150/50 Mbps), 3G (21/5.76 Mbps), 2G

Wi-Fi: 802.11b/g/n, AP/STA mode, up to 50 connections

Ethernet: 2x RJ45 10/100 Mbps

Power supply: PoE In 802.3af/at (42.5-57 VDC, max 21 W)

PoE Out: 802.3af (max 15W)

SIM: 2x Mini SIM slots (2FF), 1.8/3 V

Operating temperature: -40°C to +70°C

Protection: IP55

Dimensions: 110 × 49.3 × 235 mm

Weight: 315g

Additional information

Brand

TELTONIKA
Model

Teltonika
Execution

On the pole
Color

White
Warranty period for registration number (months)

26
Manufacturer

TELTONICS
Warranty length (months)

26
Processed

Approved
Wi-Fi

Yes
Weight (g)

315
RJ-45 (number)

2
Weight (kg)

0.315
Dimensions

235 × 110 × 49.3mm
ESIM support

No
Outdoor use

Yes
Indoor use

Yes
Gigabit LAN

No
WEP security

No
PoE support

Yes
Port speed

100 Mbps
Operating temperature min. (°C)

-40
Transmission speed (Mbps)

150 (4G), 21 (3G), 0.2368 (2G)
Wi-Fi standard

802.11b/g/n
Wi-Fi frequency

2400MHz/5000MHz
WPA2 security

Yes
Operating temperature max. (°C)

75
Power supply (V)

42.5 – 57 (PoE)
WPA security

Yes
MicroSD card support

No
Antenna design

Internal
HIND

Yes
SIM slot

Yes
Consumption (W)

21
Degree of protection

IP55
Interface

LAN, Wi-Fi, 3G, 4G/LTE
Conformity

CE, UKCA, CB, EAC, UCRF, RCM, WEEE
4G/LTE support

Yes
5G support

No
Connector

2× RJ-45
LED indication

Yes
LTE/4G/5G (Mbps)

150
Output to external antenna

No
Operating system

RutOS
WPA3 security

Yes
Ethernet (Mbps)

100
Processor

MediaTek MIPS 24KEc, 580 MHz
3G support

Yes
Slots

2× LAN, 2× SIM slots
Power supply max. (PoE) (V)

57
Power supply min. (PoE) (V)

42.5
