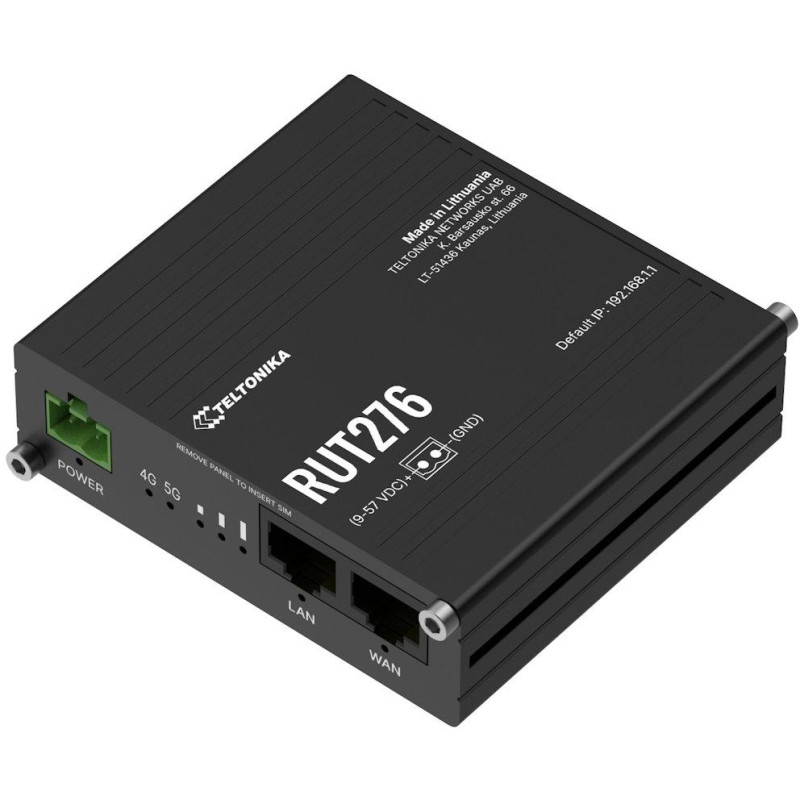

Teltonika RUT276 industrial router, dual SIM, Redcap 5G, 1x LAN, 1x WAN, serial RS232/485, WiFi 4
316,20 €
Description
Teltonika RUT276 – Compact 5G RedCap router
Industrial 5G RedCap router designed for IIoT applications with low latency and competitive price.
The RUT276 router brings key benefits of 5G technology to IoT projects by supporting the RedCap (Reduced Capability) standard, which offers higher throughput and lower latency than traditional 4G networks, but at a fraction of the price of a full 5G module. The device supports 5G Sub-6GHz SA with speeds up to 223 Mbps download while maintaining compatibility with 4G LTE Cat 4 networks.
Built-in RS232/RS485 serial interfaces allow seamless connection of industrial equipment, while dual SIM with automatic failover ensures uninterrupted connectivity. The robust aluminum construction with an operating temperature of -40 to +75°C and native support for industrial protocols make the RUT276 an ideal choice for M2M applications where continuous availability is critical.
- 5G RedCap SA support with speeds up to 223 Mbps DL and backward compatibility with 4G LTE Cat 4
- Built-in RS232/RS485 serial interfaces for direct connection of industrial equipment
- Native support for industrial protocols Modbus, OPC UA and BACnet for seamless integration
- Dual SIM with automatic switching and band management to ensure uninterrupted connectivity
- Robust aluminum construction with an operating temperature of -40 to +75°C for harsh environments
- Wi-Fi 4 (802.11b/g/n) with support for Access Point, Client and Mesh modes
- Advanced VPN options including OpenVPN, IPsec, WireGuard, and other tunneling protocols
- Compact dimensions of 83 x 25 x 83 mm and a weight of only 132 g for flexible mounting
Advanced network features
The router offers comprehensive networking capabilities including QoS/Smart Queue Management, DNS over HTTPS, load balancing, and advanced firewall features with DDOS protection. VRF and traffic management support enable network segmentation for different applications.
Industrial protocols and integrations
Native BACnet/IP support with BBMD configuration, Modbus TCP/RTU gateway functionality and OPC UA server/client enable direct integration with industrial systems without the need for external converters.
Remote management and monitoring
Compatibility with Teltonika’s RMS (Remote Management System) platform, supporting TR-069, MQTT, SNMP and other protocols for centralized management. FOTA updates ensure up-to-date firmware without physical access to the device.
“t”>
BASIC SPECIFICATIONS
Mobile connectivity: 5G Sub-6GHz SA (223 Mbps DL, 123 Mbps UL), 4G LTE Cat 4 (195 Mbps DL, 105 Mbps UL)
Processor: Mediatek 580 MHz MIPS 24KEc
Memory: 128MB DDR2 RAM, 32MB SPI Flash
Wi-Fi: IEEE 802.11b/g/n (Wi-Fi 4), AP/Client/Mesh modes
Ethernet: 2x RJ45 ports 10/100 Mbps (1x WAN, 1x LAN)
Serial interface: 1× 6-pin terminal block (RS232, RS485)
SIM: 2x Mini SIM slots (2FF), dual-stack tray
Power supply: 9–57 VDC, Active PoE 802.3af, Passive PoE
Operating temperature: -40 to +75 °C
Dimensions: 83 × 25 × 83 mm
Weight: 132g
Additional information
| Brand | TELTONIKA |
|---|---|
| Model | Teltonika |
| Execution | DIN rail |
| Color | Black |
| Warranty period for registration number (months) | 26 |
| Manufacturer | TELTONICS |
| Warranty length (months) | 26 |
| Processed | Approved |
| Wi-Fi | Yes |
| Weight (g) | 132 |
| RJ-45 (number) | 2 |
| Weight (kg) | 0.132 |
| Dimensions | 83 × 83 × 25mm |
| ESIM support | No |
| Outdoor use | No |
| Indoor use | Yes |
| Gigabit LAN | No |
| WEP security | No |
| PoE support | Yes |
| Port speed | 100 Mbps |
| Operating temperature min. (°C) | -40 |
| Transmission speed (Mbps) | 223 (5G), 195 (4G) |
| Wi-Fi standard | 802.11b/g/n |
| Wi-Fi frequency | 2400MHz |
| Standards | 802.11b/g/n, 802.3af, 802.11s, 802.11w, 802.11e, 802.11r, 802.11k, 802.11v |
| WPA2 security | Yes |
| Operating temperature max. (°C) | 75 |
| Power supply (V) | 9 – 57 (DC) |
| Depth (mm) | 83 |
| WPA security | Yes |
| Height (mm) | 25 |
| Width (mm) | 83 |
| MicroSD card support | Yes |
| Operating mode | AP, STA |
| Encryption | WPA2-Enterprise – PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP |
| Display | No |
| Antenna design | Without its own antenna (SMA) |
| HIND | Yes |
| SIM slot | Yes |
| Type of accessory | Router |
| Consumption (W) | 3.5 |
| Industrial design | Yes |
| Conformity | CE, UKCA, CB, RCM, EAC, UCRF |
| 4G/LTE support | Yes |
| 5G support | Yes |
| Input voltage (V) | 9–57 (DC) |
| LED indication | Yes |
| Mobile connection | SIM card slot |
| Power supply max. (jack) (V) | 57 |
| Number of connectable antennas | 3 |
| LTE/4G/5G (Mbps) | 223 |
| Output to external antenna | Yes |
| Operating system | RutOS |
| WPA3 security | Yes |
| Memory size (MB) | 128 |
| Ethernet (Mbps) | 100 |
| Processor | MediaTek MIPS 24KEc, 580 MHz |
| 3G support | Yes |
| Power supply min. (jack) (V) | 9 |
| VPN | Yes |
| QoS and bandwidth shaper | Yes |
| Default IP | 192.168.1.1 |
| Power supply max. (PoE) (V) | 57 |
| Power supply min. (PoE) (V) | 16 |
