Teltonika Router RUT360

Description

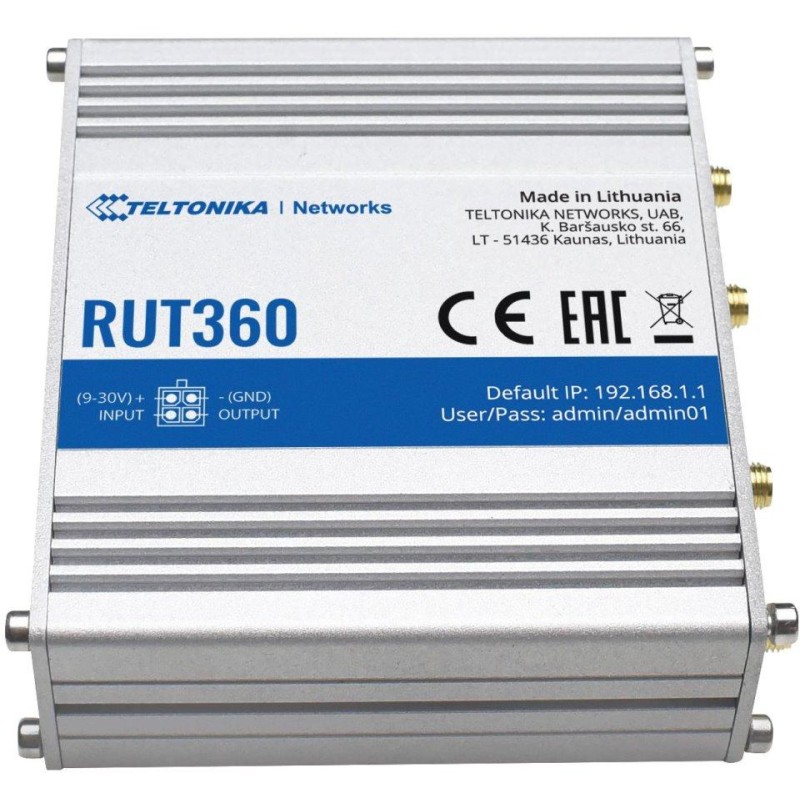

Teltonika RUT360

RUT360 is a compact, cost-effective and powerful industrial LTE router for professional applications. The router provides high performance for mission-critical mobile communications.

The router will find use, for example, in devices that need to be remotely monitored, such as vending machines, sensors in the energy sector, or Smart City projects.

Mobile part

– Module: 4G(LTE) cat 6 – up to 300 Mbps, 3G – up to 42 Mbps

– Status: Signal strength, SINR, RSRP, RSRQ, IMSI, ICCID

– SMS notifications

Wireless part

– Wireless modes: IEEE 802.11b/g/n, AP and Station

– Encryption: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, Client separation

Ethernet part

– 1 x WAN 10/100 Mb/s (auto MDI/MDIX)

– 1 x LAN 10/100 Mb/s (auto MDI/MDIX)

Network part

– Routing: Static routing, Dynamic routing

– Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake on LAN (WOL)

– VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers (allow proper routing of VoIP packets).

– Firewall: defines rules for communication (port forwarding, traffic rules, etc.)

– Network backup: backup for failure recovery (connection/power), cellular, network or Wi-Fi.

– Load balancing: optimizes network traffic.

VPN

– OpenVPN: encrypted VPN tunnel between host stations and server, 12 encryption methods

– OpenVPN encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

– IPsec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)

– GRE: GRE tunnel (Generic Encapsulation Protocol)

– PPTP, L2TP: client/server services can be run simultaneously, L2TPv3 support

– Stunnel: an encrypted network tunnel, mainly for programs that do not support SSL. It allows connecting two networks via an encrypted TCP tunnel, or securing the operation of unencrypted protocols or daemons such as IMAP, MySQL, POP, IRC, and others. It adds TLS encryption functionality to existing clients/servers without any code changes.

– SSTP: SSTP protocol support

System characteristics

– CPU: QCA9531, MIPS 24kc, 650 MHz

– RAM: 128 MB, DDR2

– FLASH memory: 16MB SPI Flash

Power supply

– 4pin DC, 9 – 30V

– consumption less than 10.5 W

---

More detailed information can be found in the attached manual in the documents tab.

---

BASIC SPECIFICATIONS

Standard: IEEE 802.11b/g/n

Data transfer speed: 4G – up to 300 Mbps, 3G – up to 42 Mbps

Antenna: 2 x SMA connector (LTE), 2 x RP-SMA connector (Wi-Fi)

Ports: 1 x RJ-45 LAN, 1 x RJ-45 WAN

Security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP

PoE support: no

Power supply: 9 – 30 V DC

Dimensions: 100 x 85 x 30 mm

---
