Teltonika RUTM30 industrial router, dual SIM + eSIM, 5G, 1x WAN, 1x LAN, WiFi 5

Teltonika RUTM30 industrial router, dual SIM + eSIM, 5G, 1x WAN, 1x LAN, WiFi 5

472,87 €

SKU: NV-PCs,LaptopsAndTablets-Computers-AccessoriesTELTONIKA-RUTM30-IND-38812 Categories: , , Tag:

Description

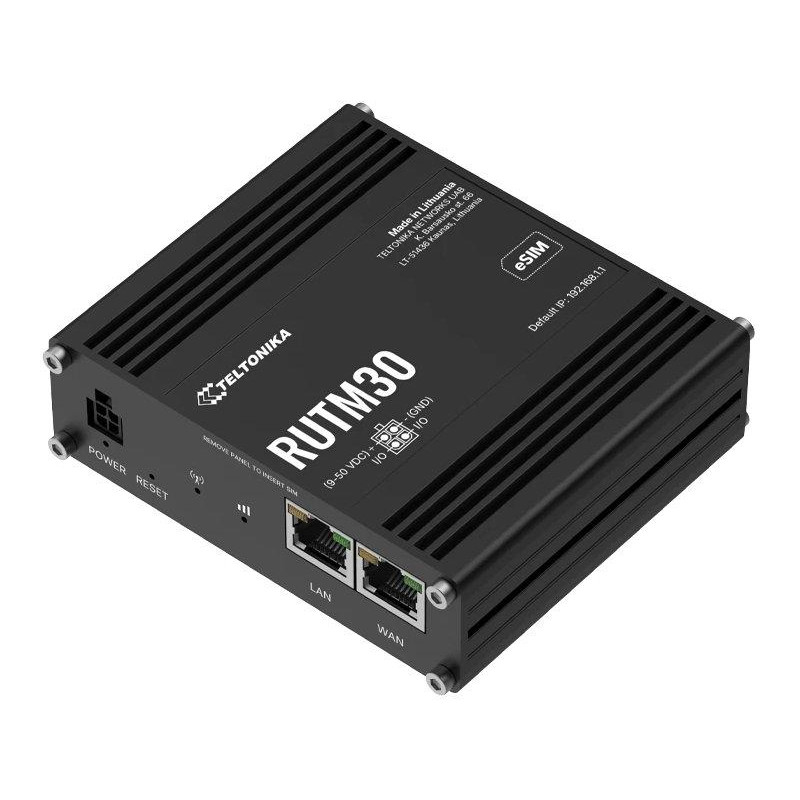

Teltonika RUTM30

Compact dual SIM multi-network router with eSIM technology offering high-speed 5G connectivity for data-intensive applications.

RUTM30 is a powerful industrial router in a compact aluminum body that provides top-notch connectivity via 5G networks with speeds of up to 2.4/3.4 Gbps for download and 900/550 Mbps for upload. With support for dual SIM cards and eSIM technology, it ensures continuous connectivity with automatic switching in case of primary connection failure.

The router has two Gigabit Ethernet ports (WAN and LAN) and dual-band Wi-Fi 5 with transfer speeds of up to 867 Mbps . A wide operating temperature range of -40 °C to 75 °C and a robust aluminum body make the device suitable for deployment in demanding industrial environments and IoT applications requiring reliable high-speed connections.

  • 5G Sub-6GHz support in SA/NSA modes with speeds up to 3.4 Gbps (4×4 MIMO)
  • Backward compatible with 4G LTE Cat 19 (1.6 Gbps) and 3G networks
  • Integrated eSIM technology with the ability to store up to 7 eSIM profiles
  • Dual SIM with automatic switching and backup WAN connection
  • Dual-band Wi-Fi 5 (802.11ac) with speeds up to 867 Mbps and MU-MIMO support
  • 2× configurable digital inputs/outputs for industrial applications
  • Broad support for VPN protocols including OpenVPN, IPsec, WireGuard, and ZeroTier
  • Compatibility with RMS (Remote Management System) for remote management
  • Wide operating temperature range -40°C to 75°C

Advanced network features
The router offers rich networking capabilities including VoIP pass-through, connection monitoring, firewall, hotspot, DHCP, QoS, DNS over HTTPS, DDNS, network backups, load balancing, and advanced traffic management.

Professional-level security
Integrated TPM 2.0 module, authentication, firewall, intrusion prevention, VLAN, mobile data control, web filter, access control, SSL certificate generation and 802.1x support ensure a high level of security.

Advanced management options
The device can be managed via web interface, FOTA updates, SSH, SMS, call, email, TR-069, MQTT, SNMP, JSON-RPC, MODBUWith and RMS remote management system.

BASIC SPECIFICATIONS

Processor: MediaTek, dual-core, 880 MHz, MIPS1004Kc

Memory: 256MB DDR3 RAM, 16MB NOR flash, 256MB NAND flash

Mobile connectivity: 5G Sub-6GHz SA/NSA, 4G LTE Cat 19, 3G

Ethernet: 2x RJ-45 ports 10/100/1000 Mbps (1x WAN, 1x LAN)

Wi-Fi: 802.11b/g/n/ac Wave 2 (Wi-Fi 5), dual-band, MU-MIMO

Antenna connectors: 4× SMA for mobile networks, 2× RP-SMA for Wi-Fi

SIM: 2x slot for mini SIM (2FF), 1x integrated eSIM

Power supply: DC 9-50V, 4-pin industrial connector

Operating temperature: -40°C to 75°C

Dimensions (W × H × D): 100 × 93.7 × 30 mm

Weight: 319g

Operating system: RutOS (Linux based on OpenWrt)

Additional information

Brand

TELTONIKA
Model

Teltonika
Execution

Freestanding
Color

Black
Warranty period for registration number (months)

26
Manufacturer

TELTONICS
Warranty length (months)

26
Processed

Approved
Wi-Fi

Yes
Weight (g)

319
RJ-45 (number)

2
Weight (kg)

0.319
Dimensions

100 × 93.7 × 30mm
ESIM support

Yes
Outdoor use

No
Indoor use

Yes
Gigabit LAN

Yes
WEP security

No
PoE support

Yes
Port speed

1 Gbps
Operating temperature min. (°C)

-40
Transmission speed (Mbps)

867 (5GHz), 3400 (5G)
Wi-Fi standard

802.11b/g/n/ac/ac-wave2
Wi-Fi frequency

2400MHz/5000MHz
Standards

802.11b/g/n/ac/ac-wave 2, 802.3, 802.3az, 802.3u, 802.11r, 802.11e, 802.11w, 802.11s, 802.11k
WPA2 security

Yes
Operating temperature max. (°C)

75
Power supply (V)

9 – 50 (DC)
Depth (mm)

93.7
WPA security

Yes
Height (mm)

30
Width (mm)

100
MicroSD card support

No
Operating mode

AP, Router
Encryption

WPA2-Enterprise – PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP
Display

No
DHCP

Yes
Antenna design

Removable
HIND

Yes
SIM slot

Yes
Consumption (W)

9
Degree of protection

IP30
Interface

LAN, WAN, 4G/LTE, 5G, Wi-Fi
Conformity

CE, UKCA, CB, EAC, UCRF, RCM, R-NZ, WEEE
4G/LTE support

Yes
5G support

Yes
LED indication

Yes
Power supply max. (jack) (V)

50
NAND (MB)

256
Number of connectable antennas

6
LTE/4G/5G (Mbps)

3400
Output to external antenna

Yes
Operating system

RutOS
WPA3 security

Yes
Memory size (MB)

16
Ethernet (Mbps)

1000
Processor

MediaTek MIPS 1004KC, 880 MHz
3G support

Yes
Wi-Fi 5GHz (Mbps)

867
Power supply min. (jack) (V)

9
IPv6 support

Yes
Default IP

192.168.1.1
Slots

1x LAN, 1x WAN, 2x SIM slots
Power supply max. (PoE) (V)

50
Power supply min. (PoE) (V)

9
