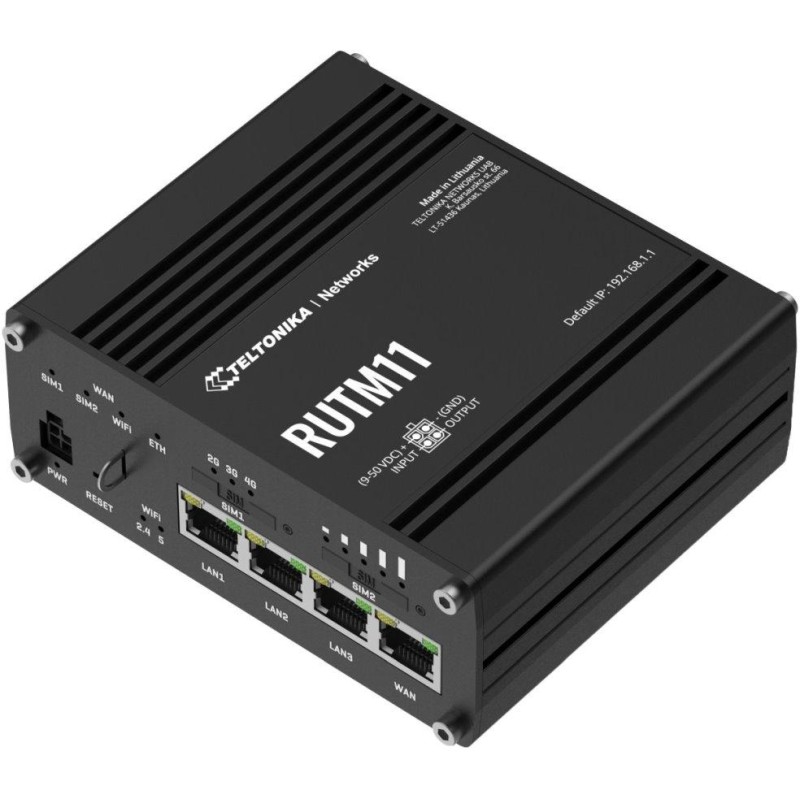

Teltonika RUTM11 industrial router, 4G, LTE, 4x Gbit RJ45, WiFi 5

Teltonika RUTM11 industrial router, 4G, LTE, 4x Gbit RJ45, WiFi 5

309,06 €

SKU: PhonesTELTONIKA-RUTM11-IND-13458 Category: Tag:

Description

Teltonika RUTM11

Industrial mobile router that provides reliable connectivity in demanding industrial environments (automation, transportation, manufacturing, etc.).

This model is equipped with 4G (LTE), Wi-Fi 5, two SIM slots and 4 Gigabit Ethernet ports, making it ideal for quickly setting up primary and backup connections with remote management. DIN rail, wall or freestanding mounting possible (brackets not included).

The package includes an 18W power adapter, an Ethernet cable (1.5 m), 5x antennas and a set of SIM adapters.

  • Connectivity: 4G/LTE, 3G
  • Wi-Fi: wireless access point with Hotspot function
  • WAN failover: automatic switchover to an available backup connection
  • RMS: remote management, access and VPN services
  • GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
  • Protocols: support for many protocols including MQTT, Modbus TCP and DNP3
  • SIM: presence of 2× SIM slots (mini SIM, 2FF format)
  • USB: possibility of connecting an external HDD, flash drive, additional modem, printer, USB serial adapter, etc.
  • Design: aluminum body, IP30 protection

More detailed information can be found in the attached manual, in the documents tab or on the pagewiki.teltonika-networks.com/view/RUTM11 .

Software:

  • Operating system: RutOS (OpenWrt-based Linux operating system)
  • Mobile features: SIM switch, status, SMS, USSD, Black/White list, multiple PDNs, band management, SIM idle protection service, APN, Bridge, Passthrough
  • Network features: VoIP passthrough support, connection monitoring, firewall, firewall status page, port management, network topology, DHCP, QoS/Smart Queue Management (SQM), DDNS, network backup, load balancing, hotspot, SSHFS, VRF support
  • Security: Authentication, firewall, attack prevention, VLAN, mobile quota management, WEB filter, access control
  • VPN and Tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
  • Monitoring and management: WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
  • Cloud solutions: RMS, Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub
  • Services: BacNET, OPC UA, MODBUS, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS
  • Location tracking: GNSS, coordinates, NMEA, NTRIP, server software, Geofencing

BASIC SPECIFICATIONS

Wi-Fi standard: IEEE 802.11b/g/n/ac Wave 2, MU-MIMO

Data transfer speed:

4G (LTE) – DL: 300 Mbps, UL: 50 Mbps

3G – DL: 42 Mbps, UL: 5.76 Mbps

Antenna: 2× SMA connector (LTE), 2× RP-SMA connector (Wi-Fi), 1× SMA connector (GNSS)

Ports: 4× RJ-45 (1× WAN, 3× LAN), 2× SIM slot (mini SIM, 2FF format), 1× USB, 1× digital input, 1× digital output

PoE support: yes, passive PoE

Power supply: DC 9-50 V (4-pin industrial connector), consumption < 12.3 W

Dimensions: 115 × 95.1 × 44.2 mm

Additional information

Brand

TELTONIKA
Model

Teltonika
Execution

Freestanding
Color

Black
Warranty period for registration number (months)

26
Manufacturer

TELTONICS
Warranty length (months)

26
Processed

Approved
Wi-Fi

Yes
Weight (g)

460
RJ-45 (number)

4
Weight (kg)

0.460
Dimensions

115 × 95.1 × 44.2mm
ESIM support

No
Outdoor use

No
Indoor use

Yes
USB 2.0 (number)

1
Gigabit LAN

Yes
Router mode

Yes
Repeater mode

No
WEP security

No
PoE support

Yes
Port speed

1 Gbps
Operating temperature min. (°C)

-40
Transmission speed (Mbps)

867 (5GHz), 300 (LTE)
Wi-Fi standard

802.11b/g/n/ac/ac-wave2
Wi-Fi frequency

2400MHz/5000MHz
Standards

802.11b/g/n, 802.11e, 802.3, 802.3u, 802.3az, 802.11s, 802.11r, 802.11v, 802.11k
WPA2 security

Yes
Operating temperature max. (°C)

75
Power supply (V)

9 – 50 (DC)
Depth (mm)

95.1
WPA security

Yes
Client mode

Yes
Height (mm)

44.2
Width (mm)

115
MicroSD card support

No
Bridge mode

Yes
Encryption

WPA2-Enterprise – PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP
Display

No
DHCP

Yes
Antenna design

Removable
AP mode

Yes
HIND

Yes
SIM slot

Yes
Consumption (W)

12.3
Degree of protection

IP30
Interface

LAN, WAN, 4G/LTE, Wi-Fi, GPS, USB
4G/LTE support

Yes
5G support

No
Connector

4x RJ-45, 2x SIM, 1x 4pin, 1x USB
LED indication

Yes
Power supply max. (jack) (V)

50
NAND (MB)

256
Number of connectable antennas

5
LTE/4G/5G (Mbps)

300
Output to external antenna

Yes
Operating system

RutOS
WPA3 security

Yes
Memory size (MB)

256
Ethernet (Mbps)

1000
Processor

MediaTek MIPS 1004KC, 880 MHz
3G support

Yes
Wi-Fi 5GHz (Mbps)

867
Power supply min. (jack) (V)

9
IPv6 support

Yes
Default IP

192.168.1.1
Slots

3x LAN, 1x WAN, 2x SIM slot, 1x USB
Power supply max. (PoE) (V)

50
Power supply min. (PoE) (V)

9
