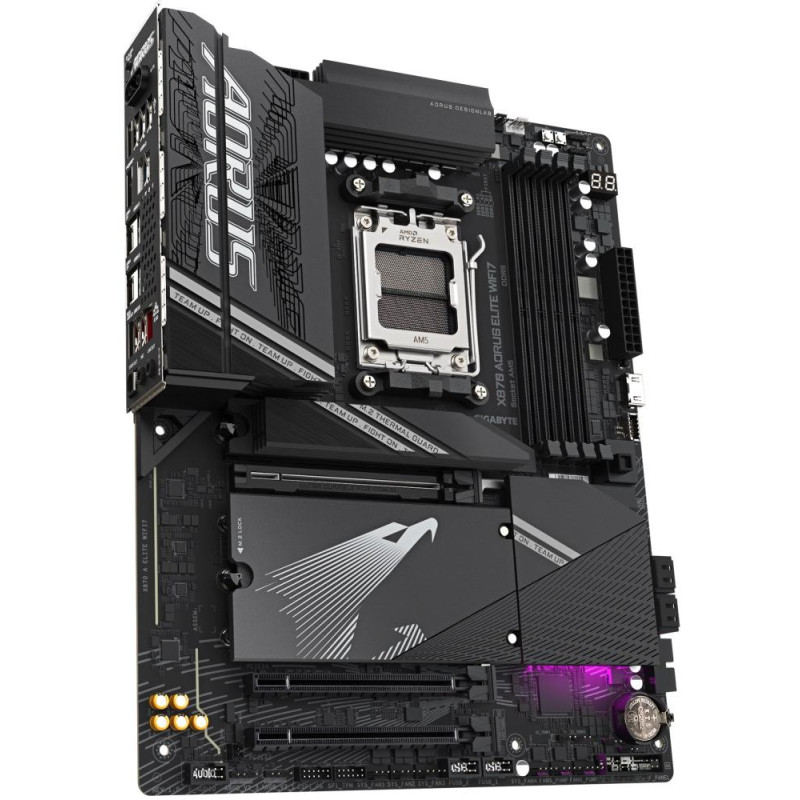

GIGABYTE X870 AORUS ELITE WIFI7 / AMD X870 / AM5 / 4x DDR5 DIMM / 4x M.2 / HDMI / USB-C / WiFi 7 / ATX

Description

GIGABYTE X870 A ELITE WIFI7

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000/8000/9000 series processors (Socket AM5)

Chipset

AMD X870

Memory

4x DDR5 DIMM slots, support up to 256 GB (64 GB per module)

Support DDR5 8200 (OC) / 8000 (OC) / 7800 (OC) / 7600 (OC) / 7200 (OC) / 7000 (OC) / 6800 (OC) / 6666 (OC) / 6600 (OC) / 6400 (OC) / 6200 (OC) / 6000 (OC) / 5600 (OC) / 5200 / 4800 / 4400 MT/s

Dual-channel memory architecture

Support non-ECC DIMM, unbuffered, 1Rx8/2Rx8/1Rx16

Extreme Memory Profile (XMP) support

Support for AMD EXtended Profiles for Overclocking (EXPO)

Slots

AMD CPU

1× PCIe x16 slot

– Ryzen 9000/7000: PCIe 5.0 x16

– Ryzen 8000 Phoenix 1: PCIe 4.0 x8

– Ryzen 8000 Phoenix 2: PCIe 4.0 x4

(When installing the M2B_CPU or M2C_CPU slot, PCIe x16 is reduced to x8. The slot can only be used for a graphics card or NVMe SSD)

AMD X870 chipset

1× PCIe 4.0 x4 slot

1× PCIe 3.0 x2 slot

(PCIe 4.0 slot shares bandwidth with M2D_SB and may not be available when populated)

Graphic arts

Integrated graphics processor with AMD Radeon™ Graphics support

2× USB4 Type-C (DisplayPort output, max. 3840 × 2160 at 240 Hz, HDR support)

1× HDMI (max. 4096 × 2160 at 60 Hz, HDMI 2.1, HDCP 2.3, HDR)

1× Front HDMI (max. 1920 × 1080 @ 30 Hz, HDMI 1.4)

Supports up to 4 displays simultaneously

Storage

AMD CPU

1× M.2 (M2A_CPU), M Key, 2280/22110/25110/2580, PCIe 5.0/4.0 x4/x2 according to CPU

2× M.2 (M2B_CPU, M2C_CPU), M Key, 2280/22110, PCIe 5.0 x4/x2 (not available with Ryzen 8000 Phoenix 1/2)

AMD X870 chipset

1× M.2 (M2D_SB), M Key, 2280/22110, PCIe 4.0 x4/x2

4× SATA 6Gb/s

RAID 0, 1, 10 support for SATA drives

RAID 0, 1, 5, 10 support for NVMe drives (RAID 5 Ryzen 9000 only)

USB

CPU + ASMedia USB4 controller

2× USB4 Type-C port (rear panel, DisplayPort support)

CPU

4x USB 3.2 Gen1 (USB 3.0) on the back panel

4× USB 2.0 on the back panel

AMD X870 chipset

1× USB 3.2 Gen2x2 Type-C via internal connector

2× USB 3.2 Gen2 Type-A (back panel, red)

2× USB 3.2 Gen1 via internal connector

4× USB 2.0 via internal connectors

Audio

Realtek ALC1220 Codec

2/4/5.1/7.1 channel High Definition Audio

DSD playback support on line-out jack

S/PDIF output support

HIND

1x Realtek 2.5GbE LAN (2.5/1Gb/100Mb)

WLAN / Bluetooth

PCB rev. 1.0: MediaTek Wi-Fi 7 MT7925, Bluetooth 5.4

PCB rev. 1.1: Realtek Wi-Fi 7 RTL8922AE, Bluetooth 5.4

Wi-Fi 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz bands

Support for 160 MHz channels

Internal connectors

1× 24-pin ATX main power connector

2× 8-pin ATX 12V

1× CPU fan connector

1× CPU water cooling fan/pump connector

4× system fan

2× fan/pump connector

3× konector of addressable RGB Gen2 LED strip

1× RGB LED strip connector

4× M.2 slots

4× SATA 6Gb/s

1× front panel connector

1× front panel audio connector

1× USB 3.2 Gen2x2 Type-C connector

1× USB 3.2 Gen1 connector

2× USB 2.0 connector

1× HDMI port

1× noise detection connector

2× temperature sensor

1× TPM connector (only supports GC-TPM2.0 SPI modules)

1× Power button

1× Reset button

1× Reset jumper

1× Clear CMOS jumper

Rear panel ports

1× Q-Flash Plus button

2× Wi-Fi antenna connector

1× HDMI

2× USB4 Type-C (DisplayPort support)

2× USB 3.2 Gen2 Type-A (red)

4× USB 3.2 Gen1

4× USB 2.0

1× RJ-45

1× optical S/PDIF

2× audio jacks

Dimensions

30.5 × 24.4 cm

ATX format
