MSI B760M GAMING PLUS WIFI / Intel B760 / LGA1700 / 4x DDR5 / 2x M.2 / HDMI / DP / WiFi / mATX

Description

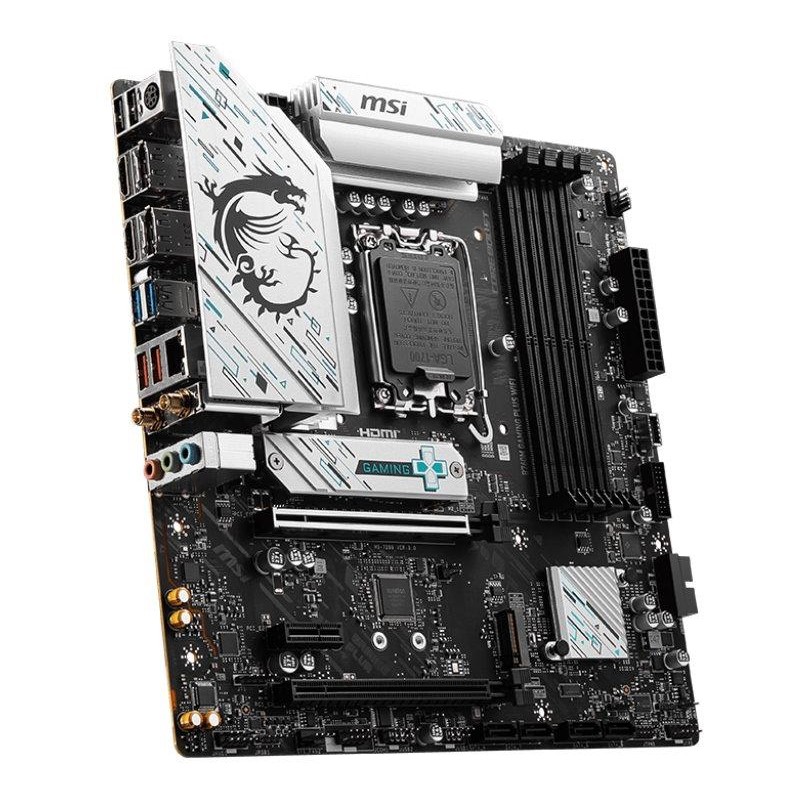

MSI B760M GAMING PLUS WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th, 13th and 14th generation Intel Core/ Pentium Gold/ Celeron processors

LGA1700 socket

Chipset

Intel B760

Memory

4× DDR5 memory slots, support up to 192 GB

Support DDR5 6800+ (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) 3.0 OC support

Slots

Intel CPU

1× PCIe 4.0 x16 slot

Intel B760 chipset

1× PCIe 4.0 x16 slot (supports x4 mode)

1× PCIe 3.0 x1 slot

Graphic arts

2× HDMI 2.1 port, supporting max. resolution 4K at 60 Hz

2× DisplayPort 1.4 port, supporting max. resolution 4K at 60 Hz

Storage

Intel CPU

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

Intel B760 chipset

4× SATA 6Gb/s ports

1× M.2 slot, M key, for 2242/2260/2280 type units (SATA and PCIe 4.0 x4 mode)

RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

USB

1× USB-C 3.2 Gen1 port available via internal USB connector

2× USB 3.2 Gen2 (USB 3.1) ports on the back panel

6× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 4 ports available via internal USB connectors)

6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

HIND

1× Realtek RTL8125BG 2.5Gigabit LAN controller

WLAN/Bluetooth

Intel Wi-Fi 6E

Wi-Fi 802.11a/b/g/n/ac/ax

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO TX/RX support

Data transfer speed up to 2.4 Gbps

Bluetooth 5.3

Internal connectors

1× 24pin ATX main power connector

2× 8pin 12V power connector

1× 4pin CPU fan connector

1× 4pin water cooling fan connector

2× 4-pin system fan connector

2× front panel connector

1× chassis opening detection connector

1× front panel audio connector

1× serial port connector

2× 3-pin connector ARGB_V2 LED

1× 4-pin RGB LED connector

1× connector for TPM module (TPM 2.0 support)

2x USB 2.0 connector (supports 4x USB 2.0 port)

2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen1 connector

4× EZ Debug LEDs

Rear panel ports

1× PS/2 keyboard and mouse port

2× DisplayPort

2× HDMI

2× USB 2.0

2× USB 3.2 Gen1 (USB 3.0)

2× USB 3.2 Gen2 (USB 3.1)

1× RJ-45

2× Wi-Fi antenna connector

3× audio jacks

Dimensions

24.384 × 24.384 cm

Micro ATX format
