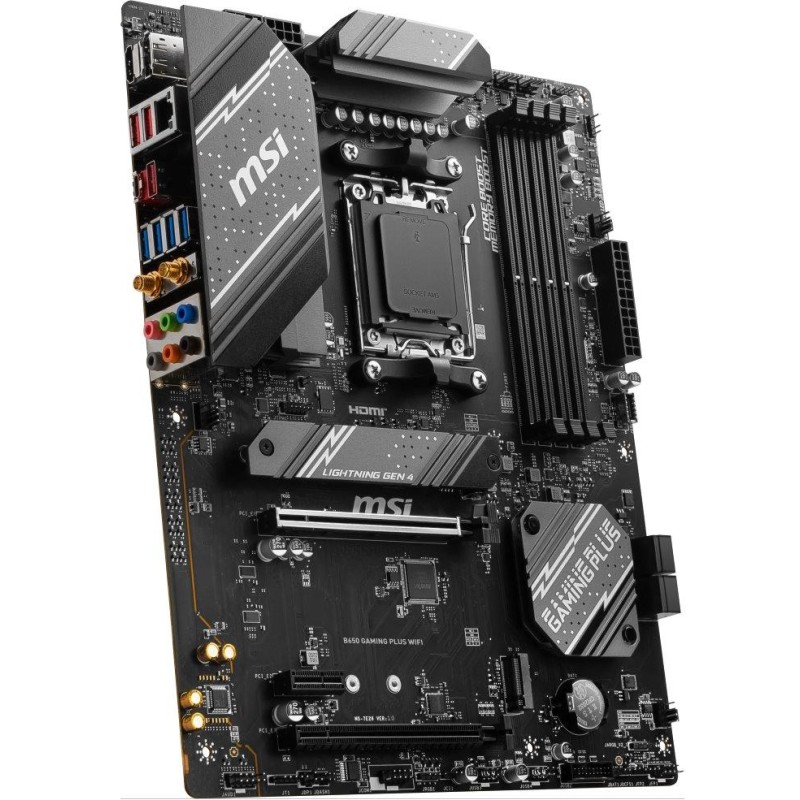

MSI B650 GAMING PLUS WIFI / AMD B650 / AM5 / 4x DDR5 / 2x M.2 / HDMI / DP / USB-C / WiFi / ATX

Description

MSI B650 GAMING PLUS WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000 series processors (Socket AM5)

Chipset

AMD B650

Memory

4× DDR5 memory slots, support up to 192 GB

Support DDR5 6000+ (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 5000 (OC)/ 4800 MHz (JEDEC)

Dual-channel memory architecture

Support non-ECC, unbuffered memory

AMD EXPO Support

Slots

AMD CPU

1× PCIe 4.0 x16 slot

AMD B650 chipset

1× PCIe 4.0 x16 slot (supports x4 mode)

1× PCIe 3.0 x1 slot

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz

1× DisplayPort port, supporting max. resolution 4K at 60 Hz

Storage

AMD CPU

1× M.2 slot, M Key, for 22110/2280 type units (PCIe 4.0 x4 mode)

1× M.2 slot, M Key, for 2280/2260 type units (PCIe 4.0 x4 mode)

AMD B650 chipset

4× SATA 6Gb/s ports

RAID 0, RAID 1 and RAID 10 support for SATA drives

RAID 0 and RAID 1 support for M.2 NVMe drives

USB

1× USB-C 3.2 Gen2x2 port on the back panel

1× USB-C 3.2 Gen2 port available via internal USB connector

3× USB 3.2 Gen2 (USB 3.1) ports on the back panel

6× USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 2 ports available via internal USB connector)

4× USB 2.0 ports available via internal USB connectors

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

HIND

1× Realtek 8125BG 2.5Gigabit LAN controller

WLAN/Bluetooth

AMD Wi-Fi 6E

Wi-Fi 802.11a/b/g/n/ac/ax

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO TX/RX support

Bluetooth 5.3

Internal connectors

1× 24pin ATX main power connector

2× 8pin ATX 12V power connector

1× 4pin CPU fan connector

1× 4pin water cooling fan connector

4× 4pin system fan connector

2× front panel connector

1× chassis opening detection connector

1× front panel audio connector

1× serial port connector

1× Tuning controller connector

2× 3pin connector A-RAINBOW V2 LED (ARGB Gen2)

2× 4-pin RGB LED connector

1× TPM module connector (supports TPM 2.0)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen2 front panel connector

4× SATA 6 Gb/s connector

2× M.2 slot, M Key

1× Clear CMOS jumper

1× OC Safe Boot jumper

4× EZ Debug LEDs

Rear panel connectors

1× Flash BIOS button

1× DisplayPort

1× HDMI

1× RJ-45

3× USB 3.2 Gen2 (USB 3.1)

1× USB-C 3.2 Gen2x2

4× USB 3.2 Gen1 (USB 3.0)

2× Wi-Fi antenna connector

6× audio jacks

Dimensions

30.48 × 24.384 cm

ATX format
