ASRock B760M-H2/M.2 / Intel B760 / LGA1700 / 2x DDR5 / 2x M.2 / HDMI / mATX

Description

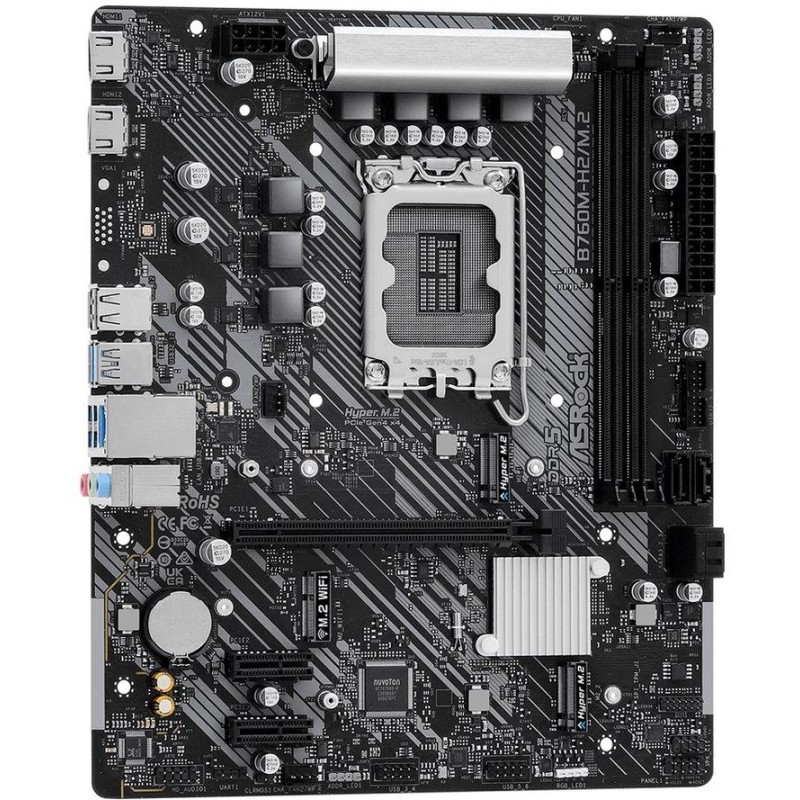

ASRock B760M-H2/M.2

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Supports 12th, 13th and 14th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel B760

Memory

2× DDR5 memory slots, support up to 96 GB

DDR5 support up to 7200+ (OC) MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) 3.0 support

Slots

Intel CPU

1× PCIe 4.0 x16 slot

Intel B760 chipset

2× PCIe 3.0 x1 slots

Graphic arts

2× HDMI 2.1 port, supporting max. resolution 4K at 60 Hz

Storage

Intel B760 chipset

1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

1× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)

4× SATA 6Gb/s ports

Intel Volume Management Device (VMD) support

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

USB

6× USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 2 ports available via internal USB connector)

6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

HIND

1× Dragon RTL8125BG 2.5GbE LAN controller

Internal connectors

1× SPI TPM connector

1× speaker connector and intrusion detection

1× RGB LED strip connector

3× addressable RGB LED strip connector

1× 4pin CPU fan connector

1× 4pin CPU fan/water cooling fan connector

2× 4-pin chassis fan/water cooling fan connector

1× 24pin ATX main power connector

1× 8pin 12V power connector

1× front panel audio connector

2× USB 2.0 connector (supports 4× USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

4× SATA 6Gb/s connector

2× Hyper M.2 slot, M Key

1× M.2 slot, E key for Wi-Fi module (not included)

Rear panel ports

2× Wi-Fi antenna connector

2× HDMI

4× USB 3.2 Gen1 (USB 3.0)

2× USB 2.0

1× RJ-45

3× audio jacks

Dimensions

24.4 × 20.1 cm

Micro ATX format
