GIGABYTE X670E AORUS MASTER / AMD X670 / AM5 / 4x DDR5 DIMM / 4x M.2 / HDMI / DP / 2x USB-C / WiFi / EATX

Description

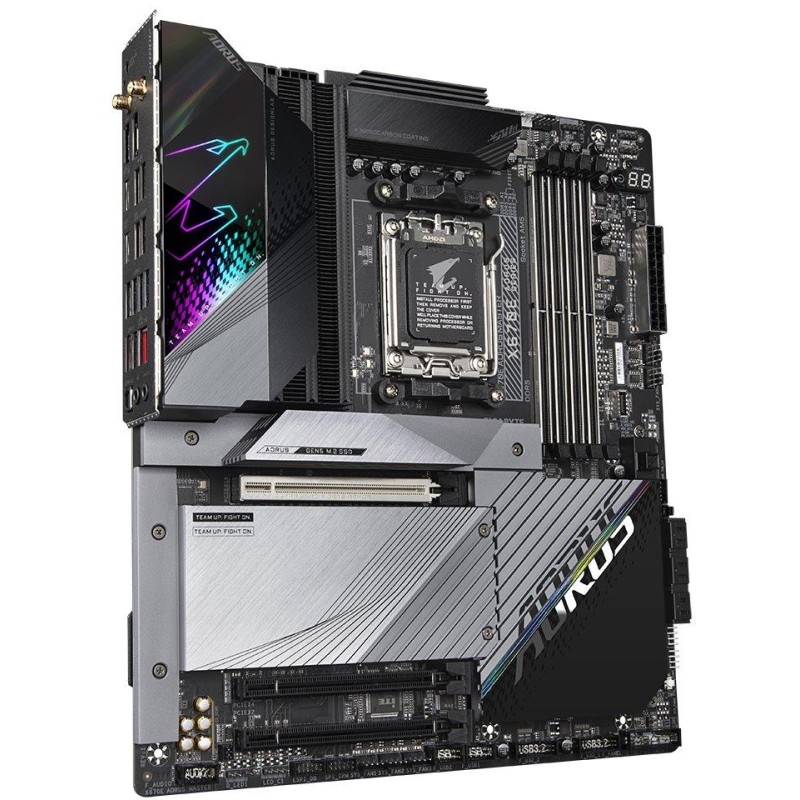

GIGABYTE X670E AORUS MASTER

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000 series processors (Socket AM5)

Chipset

AMD X670

Memory

4x DDR5 memory slots, support up to 192 GB

Support DDR5 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400MHz

Dual-channel memory architecture

Support non-ECC DIMM, unbuffered, 1Rx8/2Rx8/1Rx16

Extreme Memory Profile (XMP) support

Support for AMD EXtended Profiles for Overclocking (EXPO)

Slots

AMD CPU

1x PCIe 5.0 x16 slot

AMD X670 chipset

1x PCIe 4.0 x16 slot (supports x4 mode)

1x PCIe 3.0 x16 slot (supports x2 mode)

Graphic arts

1x DisplayPort, supporting max. resolution 3840 x 2160 at 144 Hz

1x USB 3.2 Gen2 Type C port, supporting max. resolution 3840 x 2160 at 144 Hz

1x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz

Multi-GPU

AMD CrossFire technology support

Storage

AMD CPU

1x M.2 slot, M Key, for 2280/25110 type units (PCIe 5.0 x4/x2 mode)

1x M.2 slot, M Key, for 2280/22110 type units (PCIe 5.0 x4/x2 mode)

AMD X670 chipset

2x M.2 slot, M Key, for 2280/22110 type units (PCIe 4.0 x4/x2 mode)

6x SATA 6Gb/s ports

RAID 0, RAID 1 and RAID 10 support for SATA drives

RAID 0, RAID 1 and RAID 10 support for PCIe drives

USB

AMD X670 chipset

2x USB 3.2 Gen2x2 Type-C ports (1 port on the back panel, 1 port available via internal USB connector)

2x USB 3.2 Gen2 type A port on the back panel

4x USB 2.0 ports available via internal USB connectors

8x USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 4 ports available via internal USB connectors)

AMD CPU

1x USB 3.2 Gen2 Type-C port on the back panel

2x USB 3.2 Gen2 type A port on the back panel

2x USB 2.0 ports on the rear panel

Audio

Realtek ALC1220-VB Codec

2/4/5.1/7.1 channel High Definition Audio

DTS:X Ultra support

S/PDIF output support

HIND

1x Intel 2.5Gigabit LAN controller

WLAN/Bluetooth

Intel Wi-Fi 6E AX210

Wi-Fi 802.11a/b/g/n/ac/ax

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Data transfer speed up to 2.4 Gbps

Bluetooth 5.3

Internal connectors

1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connector

1x CPU fan connector

1x CPU water cooling fan connector

4x system fan connector

4x system fan/water cooling pump connector

2x addressable LED strip connector

2x RGB LED strip connector

1x RGB LED strip/CPU fan LED strip connector

4x M.2 slots, M Key

6x SATA 6Gb/s connector

1x front panel connector

1x front panel audio connector

1x USB 3.2 Gen2x2 type C connector

2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x noise detection connector

1x Thunderbolt AIC connector

1x TPM connector (only supports GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)

1x Power button

1x Reset button

2x temperature sensor connector

1x Reset jumper

1x Clear CMOS jumper

1x voltage measurement points

Rear panel ports

1x Q-Flash Plus button

2x Wi-Fi antenna connector

1x DisplayPort

1x HDMI

1x USB 3.2 Gen2 Type-C

1x USB 3.2 Gen2x2 Type-C

4x USB 3.2 Gen2 (USB 3.1 Gen2)

4x USB 3.2 Gen1 (USB 3.0)

2x USB 2.0

1x RJ-45

1x optical S/PDIF output

2x audio jacks

Dimensions

30.5 x 26.9 cm

E-ATX format
