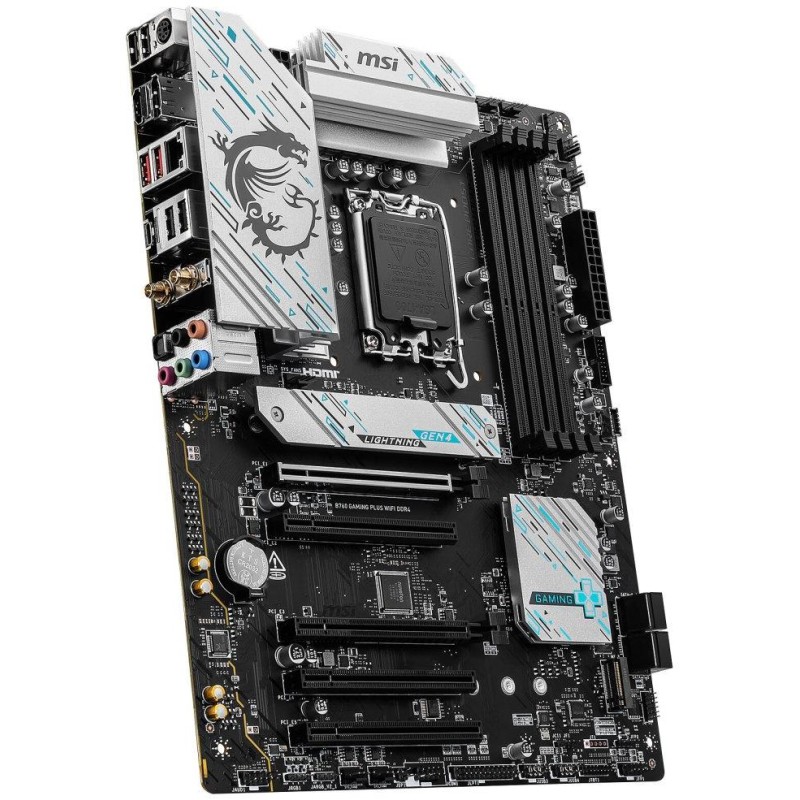

MSI B760 GAMING PLUS WIFI DDR4 / Intel B760 / LGA1700 / 4x DDR4 / 2x M.2 / HDMI / DP / WiFi / ATX

MSI B760 GAMING PLUS WIFI DDR4 / Intel B760 / LGA1700 / 4x DDR4 / 2x M.2 / HDMI / DP / WiFi / ATX

121,85 €

SKU: MotherboardsMSI-B760-GAMING-PLUS-1700 Category: Tags: ,

Description

MSI B760M GAMING PLUS WIFI – look at the performance of Intel processors

MSI B760 GAMING PLUS WIFI DDR4 motherboard

Title

The MSI B760 GAMING PLUS WIFI DDR4 motherboard supports Intel’s 12th, 13th and 14th generation processors and after installing them you will enjoy impressive performance for demanding gaming, work and multimedia activities. This model features an advanced DUET RAIL power system , which combines a pair of power connectors and ensures a stable power supply. Thanks to this, the board is suitable for everyday demanding activities.

  • List

For expansion, the PCI-E Lightning Gen 4 slot is used, which achieves greater bandwidth than the previous generation and provides up to 2x faster speed. The MSI B760 GAMING PLUS WIFI DDR4 motherboard is designed for modern and ultra-fast storage. It will allow you to load and start levels faster and give you an advantage over your opponents. The improved cooling system includes an extended heatsink that increases the heat dissipation area and maintains stability even under high loads, or the M.2 Shield Frozr solution for SSD drives.

motherboard MSI B760 GAMING PLUS WIFI DDR4 detail

MSI B760 GAMING PLUS WIFI DDR4 connectivity




alt=”blank.png” />

MSI B760 GAMING PLUS WIFI DDR4

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th, 13th and 14th generation Intel Core/ Pentium Gold/ Celeron processors

LGA1700 socket

Chipset

Intel B760

Memory

4x DDR4 memory slots, support up to 128 GB

Support DDR4 5333 (OC)/ 5200 (OC)/ 5066 (OC)/ 5000 (OC)/ 4800 (OC)/ 4600 (OC)/ 4400 (OC)/ 4266 (OC)/ 4200 (OC)/ 4000 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3200 (JEDEC)/ 2933 (JEDEC)/ 2666 (JEDEC)/ 2400 (JEDEC)/ 2133 (JEDEC) MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) 3.0 OC support

Slots

Intel CPU

1× PCIe 4.0 x16 slot

Intel B760 chipset

1× PCIe 4.0 x16 slot (supports x4 mode)

3× PCIe 3.0 x16 slot (supports x1 mode)

Graphic arts

1× HDMI 2.1 port, supporting max. resolution 4K at 60 Hz

1× DisplayPort 1.4 port, supporting max. resolution 4K at 60 Hz

Storage

Intel CPU

1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)

Intel B760 chipset

4× SATA 6Gb/s ports

1× M.2 slot, M key, for 2242/2260/2280 type units (SATA and PCIe 4.0 x4 mode)

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

USB

1× USB-C 3.2 Gen2 port on the back panel

8× USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

2× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

1× USB-C 3.2 Gen1 port available via internal USB connector

2× USB 3.2 Gen2 (USB 3.1) ports on the back panel

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

S/PDIF output support

HIND

1× Realtek RTL8125BG 2.5Gigabit LAN controller

WLAN/Bluetooth

Intel Wi-Fi 6E

Wi-Fi 802.11a/b/g/n/ac/ax

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO TX/RX support

Data transfer speed up to 2.4 Gbps

Bluetooth 5.3

Internal connectors

1× 24pin ATX main power connector

1× 8pin 12V power connector

1× 4-pin ATX 12V power connector

1× 4pin CPU fan connector

1× 4pin water cooling fan connector

5× 4-pin system fan connector

2× front panel connector

1× chassis opening detection connector

1× front panel audio connector

1× connector for TPM module (TPM 2.0 support)

1× parallel port connector

1× serial port connector

1× TBT connector (RTD3 support)

2× 3-pin connector ARGB_V2 LED

1× 4-pin RGB LED connector

1× Clear CMOS jumper

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen1 connector

4× EZ Debug LEDs

2× M.2 slot, M Key

4× SATA 6Gb/s connector

Rear panel ports

1× PS/2 keyboard and mouse port

1× DisplayPort

1× HDMI

4× USB 2.0

2× USB 3.2 Gen2 (USB 3.1)

1× USB-C 3.2 Gen2 (USB 3.1)

1× RJ-45

2× Wi-Fi antenna connector

5× audio jacks

1× optical S/PDIF output

Dimensions

30.48 × 24.384 cm

ATX format

Additional information

Brand

MSI
Model

B760
Warranty period for registration number (months)

36
Manufacturer

MSI
Warranty length (months)

36
Processed

Approved
Wi-Fi

Yes
RJ-45 (number)

1
Dimensions

304.8 x 243.84mm
Dropshipment - Alza

Yes
USB 2.0 (number)

4
Gigabit LAN

Yes
Wi-Fi standard

802.11a/b/g/n/ac/ax
USB Type C (number)

1
Analog audio input/output (number)

5
HDMI (number)

1
TDP (W)

150
USB 3.1 (number)

2
RAM type

DDR4
Chipset

Intel B760
Number of memory slots

4
DisplayPort (number)

1
Motherboard format

ATX
PCI Express X16 (number)

5
RAID controller

Yes
Max RAM size (GB)

128
Processor socket

1700
M.2 port (for expansion cards)

No
SATA III (number)

4
M.2 port (number)

2
Optical audio output (number)

1
SPDIF optical (number)

1
