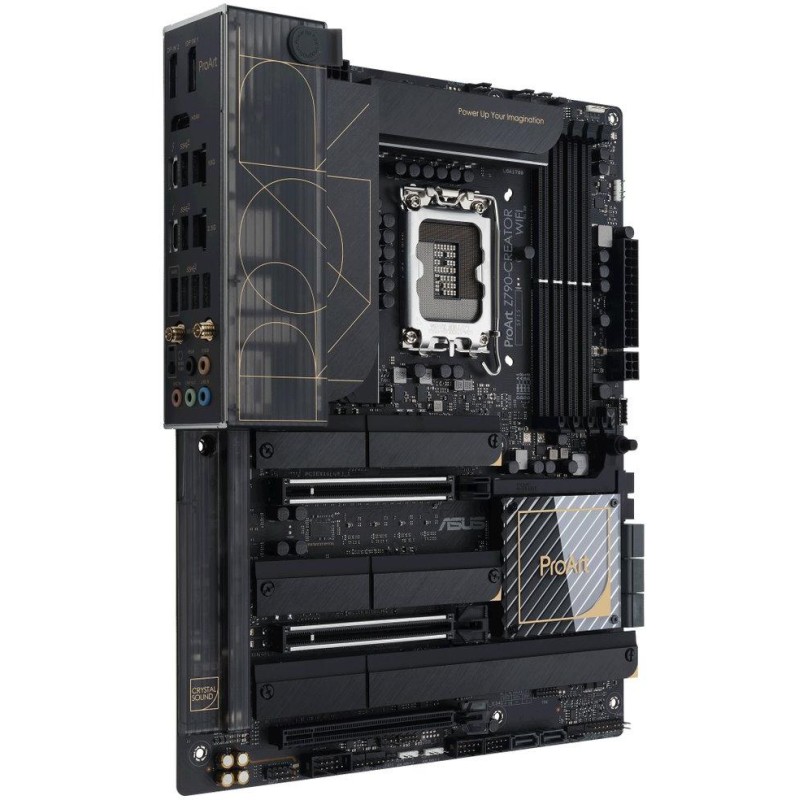

ASUS ProArt Z790-CREATOR WIFI / Z790 / LGA1700 / 4x DDR5 / 4x M.2 / HDMI / DP / Thunderbolt / Wi-Fi / ATX

Description

ASUS ProArt Z790-CREATOR WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel Z790

Memory

4× DDR5 memory slots, support up to 192 GB

Support DDR5 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) support

OptiMem II support

Slots

Intel CPU

2× PCIe 5.0 x16 slot (supports x16 or x8/x8 mode)

Intel Z790 chipset

1× PCIe 4.0 x16 slot (supports x4 mode)

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz

2× Thunderbolt 4 port, supporting max. resolution 8K at 60 Hz

2× DisplayPort input (for Thunderbolt pass-through)

Storage

Intel CPU

1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)

Intel Z790 chipset

1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 and SATA mode)

8× SATA 6Gb/s ports

RAID 0, RAID 1, and RAID 5 support for NVMe drives

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

Intel Rapid Storage technology support

USB

2x Thunderbolt 4 on the back panel

6x USB 3.2 Gen2 (USB 3.1) on the back panel

1× USB-C 3.2 Gen2×2 available via internal USB connector

2× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

4× USB 2.0 ports available via internal USB connectors

Audio

Realtek S1220A Codec

7.1 channel High Definition Audio

HIND

1× Marvell AQtion 10GbE controller

1× Intel 2.5GbE LAN controller

ASUS LANGuard

WLAN/Bluetooth

Wi-Fi 6E

Wi-Fi 802.11a/b/g/n/ac/ax

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Bluetooth 5.3

Internal connectors

1× 24pin main power connector

1× 8pin 12V power connector

1× 4pin 12V power connector

1× 6pin 12V power connector
8× SATA 6Gb/s connector

4× M.2 slots, M Key

1× M.2 slot, E key for Wi-Fi module

1× 4pin CPU fan connector

1× 4-pin optional CPU fan connector

1× 4pin water cooling pump connector

5× 4pin chassis fan connector

1× USB-C 3.2 Gen2x2 connector

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

2x USB 2.0 connector (supports 4x USB 2.0 port)

3× addressable RGB LED strip connector

1x Aura RGB LED strip connector

1× Clear CMOS connector

1× serial port connector

1× CPU overvoltage jumper

1× front panel audio connector

1× SPI TPM port

1× system panel connector and detection opencabinets

1× temperature sensor connector

Rear panel ports

2× Thunderbolt 4

6× USB 3.2 Gen2 (USB 3.1)

2× DisplayPort input

1× HDMI

2× Wi-Fi antenna connector

2× RJ-45

5× audio jacks

1× BIOS Flashback button

Dimensions

30.5 × 24.4 cm

ATX format
