ASRock A620M-HDV/M.2 / AMD A620 / AM5 / 2x DDR5 DIMM / 2x M.2 / HDMI / DP / USB-C / mATX

Description

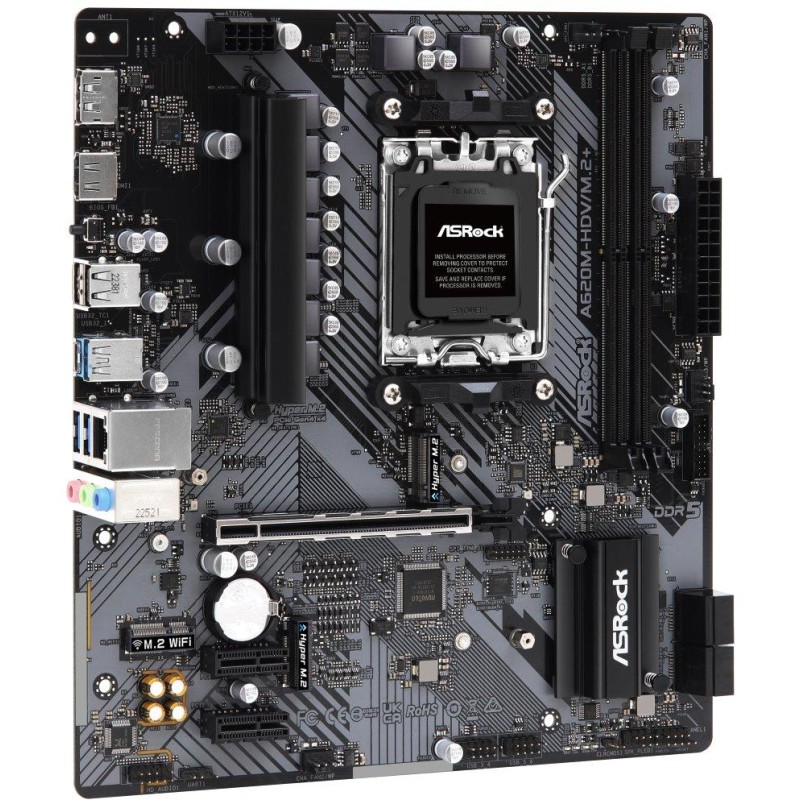

ASRock A620M-HDV/M.2

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000 series processors (Socket AM5)

Chipset

AMD A620

Memory

2× DDR5 memory slots, support up to 96 GB

DDR5 support up to 5600+ (OC) MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Support for AMD EXtended Profiles for Overclocking (EXPO)

Extreme Memory Profile (XMP) support

Slots

AMD CPU

1× PCIe 4.0 x16 slot

AMD A620 chipset

2× PCIe 3.0 x1 slots

Graphic arts

1× HDMI 2.1 port, supporting max. resolution 4K at 120 Hz

1× DisplayPort 1.4 port, supporting max. resolution 4K at 120 Hz

Storage

AMD CPU

1× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)

AMD A620 chipset

1× M.2 slot, M Key, for 2260/2280 type units (SATA and PCIe 3.0 x2 mode)

2× SATA 6Gb/s ports

RAID 0 and RAID 1 support for SATA drives

RAID 0, RAID 1, and RAID 10 support for M.2 NVMe drives

USB

1× USB-C 3.2 Gen1 (USB 3.0) port on the back panel

4× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 2 ports available via internal USB connector)

6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

Nahimic Audio

HIND

1× Realtek RTL8111H Gigabit LAN controller

Internal connectors

1× speaker connector and Power LED

1× 4pin CPU fan connector

3× 4-pin chassis fan/water cooling pump connector

1× 24pin ATX main power connector

1× 8pin 12V power connector

1× front panel audio connector

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

2× SATA 6 Gb/s connector

1× Hyper M.2 slot, M Key

1× M.2 slot, M Key

1× M.2 slot, E key for Wi-Fi module (not included)

Rear panel ports

1× HDMI

1× DisplayPort

1× USB-C 3.2 Gen1 (USB 3.0)

2× USB 3.2 Gen1 (USB 3.0)

2× USB 2.0

1× RJ-45

1× BIOS Flashback button

3× audio jacks

Dimensions

24.4 × 22.6 cm

Micro ATX format
