GIGABYTE H610M H DDR4 / Intel H610 / LGA1700 / 2x DDR4 / M.2 / VGA/ HDMI / mATX

GIGABYTE H610M H DDR4 / Intel H610 / LGA1700 / 2x DDR4 / M.2 / VGA/ HDMI / mATX

96,07 €

SKU: MotherboardsGIGABYTE-H610M-H-DDR-1700 Category: Tag:

Description

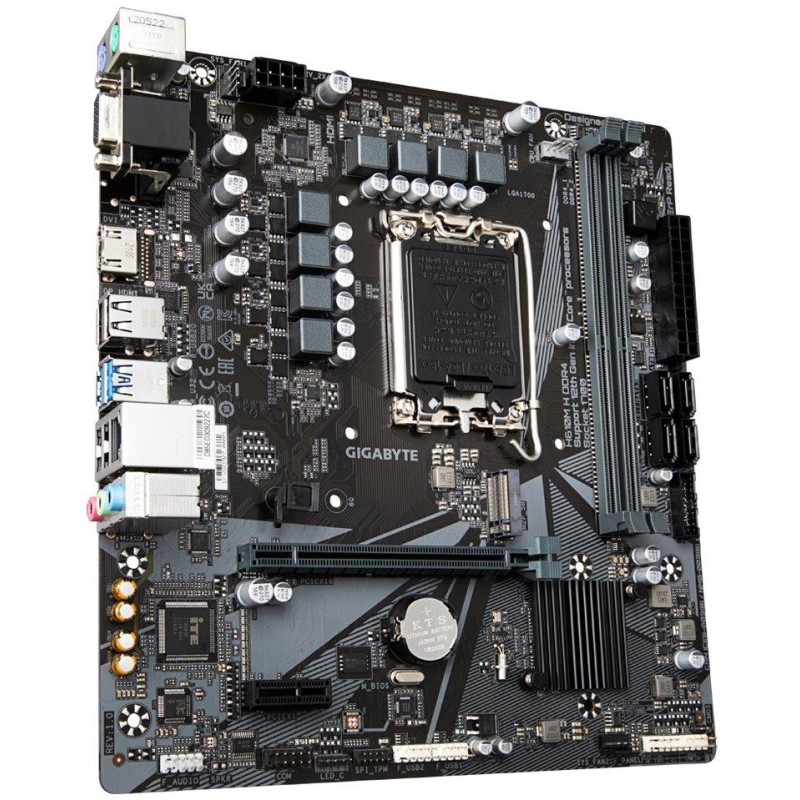

GIGABYTE H610M H DDR4

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel H610

Memory

2x DDR4 memory slots, support up to 64 GB

DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz support

Dual-channel memory architecture

Support non-ECC, unbuffered (1Rx8/2Rx8/1Rx16)

Support ECC (non-ECC mode), unbuffered (1Rx8/2Rx8)

Intel Extreme Memory Profile (XMP) support

Slots

1x PCIe 4.0 x16 slot

1x PCIe 3.0 x1 slot

Graphic arts

1x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz

1x VGA port, supporting max. resolution 1920 x 1200 at 60 Hz

Storage

Intel H610 chipset

1x M.2 slot, M Key, for 2260/2280 type units (PCIe 3.0 x4/x2 mode)

4x SATA 6Gb/s ports

USB

4x USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 2 ports available via internal USB connector)

8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek Audio Codec

2/4/5.1/7.1 channel High Definition Audio

HIND

1x Intel Gigabit LAN controller (rev. 1.0)/ Realtek Gigabit LAN controller (rev. 1.1/1.2/1.3)

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x CPU fan connector

2x system fan connector

1x RGB LED strip connector

1x M.2 slot, M Key

4x SATA 6Gb/s connector

1x front panel connector

1x front panel audio connector

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x TPM connector (only supports GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)

1x serial port connector

1x Clear CMOS jumper

Rear panel ports

1x PS/2 keyboard port

1x PS/2 mouse port

1x VGA

1x HDMI

2x USB 3.2 Gen1 (USB 3.0)

4x USB 2.0

1x RJ-45

3x audio jacks

Dimensions

23 x 21.5 cm

Micro ATX format

Additional information

Brand

GIGABYTE
Model

GIGABYTE
Warranty period for registration number (months)

36
Manufacturer

GIGABYTE
Warranty length (months)

36
Processed

Approved
Wi-Fi

No
RJ-45 (number)

1
Dimensions

230 × 215 mm
USB 2.0 (number)

4
Gigabit LAN

Yes
USB 3.0 (number)

2
Analog audio input/output (number)

3
HDMI (number)

1
VGA (number)

1
TDP (W)

150
RAM type

DDR4
Chipset

Intel H610
Number of memory slots

2
Motherboard format

MATX
PCI Express X1 (number)

1
PCI Express X16 (number)

1
RAID controller

No
Processor socket

1700
M.2 port (for expansion cards)

No
SATA III (number)

4
M.2 port (number)

1
