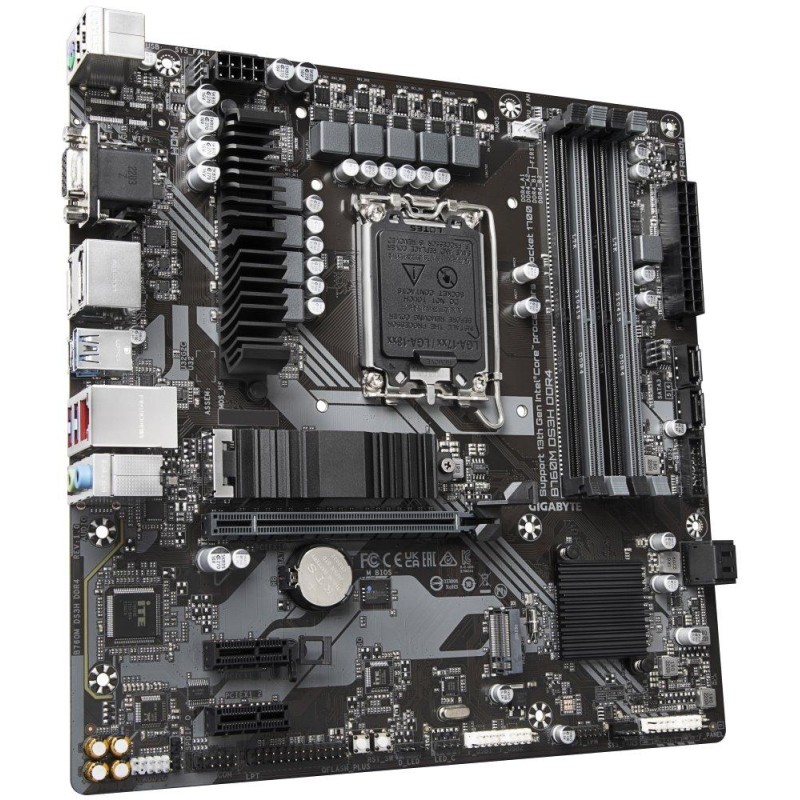

GIGABYTE B760M DS3H DDR4

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel B760

Memory

4x DDR4 memory slots, support up to 128 GB

Support DDR4 5333 (OC)/ 5133 (OC)/ 5000 (OC)/ 4933 (OC)/ 4800 (OC)/ 4700 (OC)/ 4600 (OC)/ 4500 (OC)/ 4400 (OC)/ 4300 (OC)/ 4266 (OC)/ 4133 (OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3666 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3300 (OC)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz

Dual-channel memory architecture

ECC support, 1Rx8/2Rx8, unbuffered (non-ECC mode)

Support non-ECC, 1Rx8/2Rx8/1Rx16, unbuffered

Intel Extreme Memory Profile (XMP) support

Slots

Intel CPU

1x PCIe 4.0 x16 slot

Intel B760 chipset

2x PCIe 3.0 x1 slots

Graphic arts

1x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz

2x DisplayPort port, supporting max. resolution 4096 x 2304 at 60 Hz

1x VGA port, supporting max. resolution 1920 x 1200 at 60 Hz

Storage

Intel CPU

1x M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4/x2 mode)

Intel B760 chipset

1x M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4/x2 mode)

4x SATA 6Gb/s ports

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

USB

1x USB 3.2 Gen2 Type-C port on the back panel

5x USB 3.2 Gen1 (USB 3.0) ports (3 ports on the back panel, 2 ports available via internal USB connector)

6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek Audio Codec

2/4/5.1/7.1 channel High Definition Audio

S/PDIF output support

HIND

1x Realtek 2.5Gigabit LAN controller

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x CPU fan connector

3x system fan connector

1x addressable LED strip connector

1x RGB LED strip connector

2x M.2 slots, M Key

4x SATA 6 Gb/s connector

1x front panel connector

1x front panel audio connector

1x S/PDIF output connector

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x TPM connector (only for GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)

1x serial port connector

1x parallel port connector

1x Q-Flash Plus button

1x Reset button

1x Reset jumper

1x Clear CMOS jumper

Rear panel ports

2x USB 2.0

1x PS/2 keyboard and mouse combo port

2x DisplayPort

1x HDMI

1x VGA

3x USB 3.2 Gen1 (USB 3.0)

1x USB 3.2 Gen2 Type-C

1x RJ-45

3x audio jacks

Dimensions

24.4 x 24.4 cm

Micro ATX format
