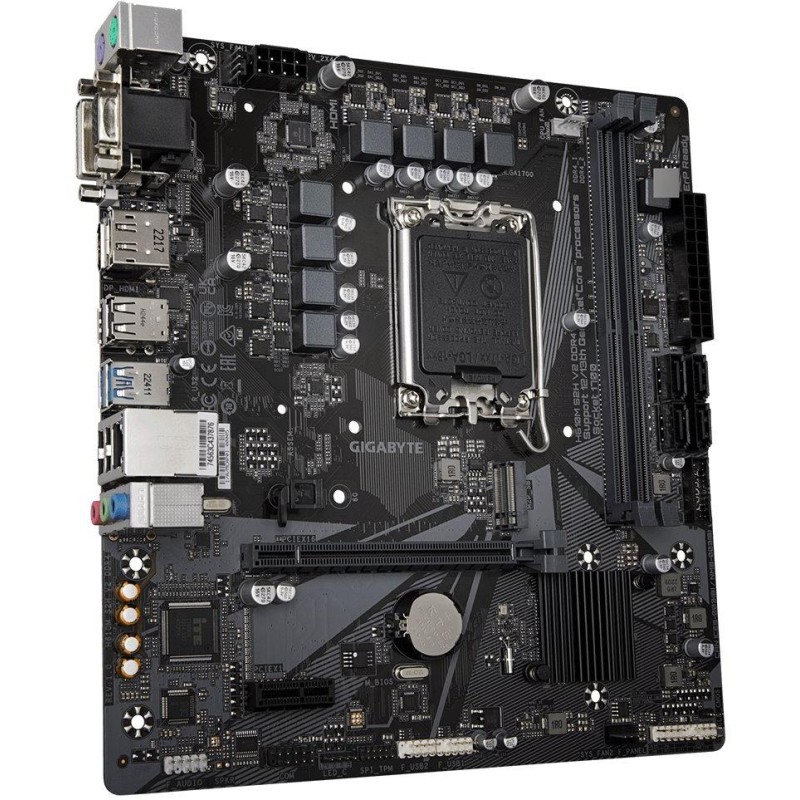

GIGABYTE H610M S2H V2 DDR4 rev. 1.0 / Intel H610 / LGA1700 / 2x DDR4 / M.2 / DP / VGA / HDMI / DVI-D / mATX

Description

GIGABYTE H610M S2H V2 DDR4

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel H610

Memory

2× DDR4 memory slots, support up to 64 GB

DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133MHz support

Dual-channel memory architecture

Support non-ECC, unbuffered (1Rx8/2Rx8/1Rx16)

Support ECC (non-ECC mode), unbuffered (1Rx8/2Rx8)

Intel Extreme Memory Profile (XMP) support

Slots

Intel CPU

1× PCIe 4.0 x16 slot

Intel H610 chipset

1× PCIe 3.0 x1 slot

Graphic arts

1× HDMI port, supporting max. resolution 4096 × 2160 at 60 Hz

1× DisplayPort port, supporting max. resolution 4096 × 2304 at 60 Hz

1× DVI-D port, supporting max. resolution 1920 × 1200 at 60 Hz

1× VGA port, supporting max. resolution 1920 × 1200 at 60 Hz

Storage

Intel H610 chipset

1× M.2 slot, M Key, for 2260/2280 type units (PCIe 3.0 x4/x2 mode)

4× SATA 6Gb/s ports

USB

4× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 2 ports available via internal USB connector)

8× USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek Audio Codec

2/4/5.1/7.1 channel High Definition Audio

HIND

1× Realtek Gigabit LAN controller

Internal connectors

1× 24pin ATX main power connector

1× 8pin ATX 12V power connector

1× CPU fan connector

2× system fan connector

1× M.2 slot, M Key

4× SATA 6Gb/s connector

1× RGB LED strip connector

1× front panel connector

1× front panel audio connector

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

2× USB 2.0 connector (supports 4× USB 2.0 port)

1× TPM connector (only supports GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)

1× serial port connector

1× Clear CMOS jumper

Rear panel ports

1× PS/2 keyboard port

1× PS/2 mouse port

1× VGA

1× DVI-D

1× HDMI

1× DisplayPort

2× USB 3.2 Gen1 (USB 3.0)

4× USB 2.0

1× RJ-45

3× audio jacks

Dimensions

23 × 21.5 cm

Micro ATX format
