MSI PRO Z790-A MAX WIFI / Intel Z790 / LGA1700 / 4x DDR5 / 4x M.2 / HDMI / DP / USB-C / WiFi / ATX

Description

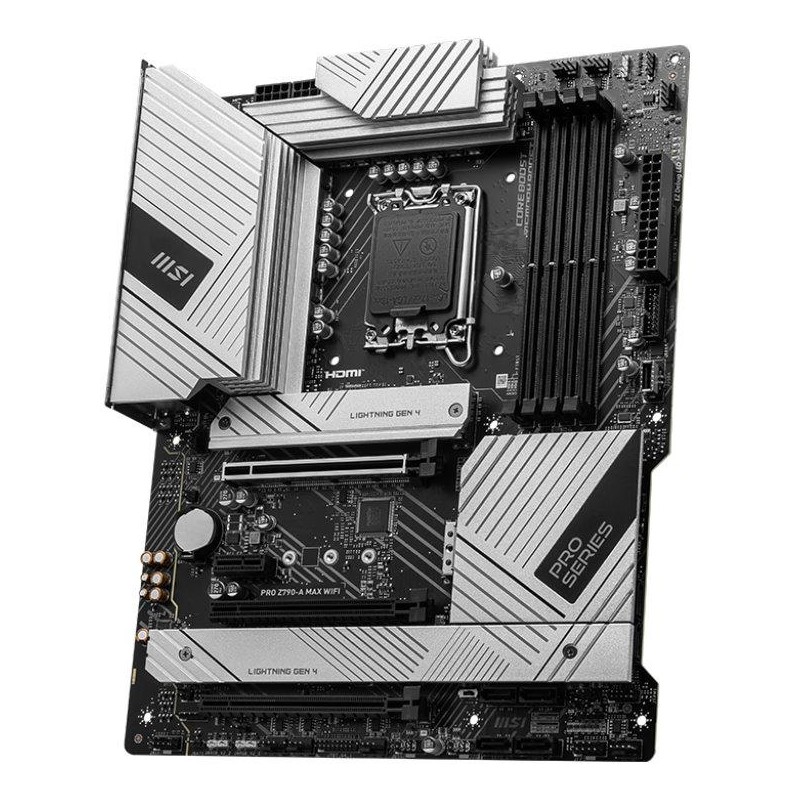

MSI PRO Z790-A MAX WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Supports 14th, 13th and 12th generation Intel Core/ Pentium Gold/ Celeron processors

LGA1700 socket

Chipset

Intel Z790

Memory

4× DDR5 memory slots, support up to 192 GB

Support DDR5 7800+ (OC)/ 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) 3.0 OC support

Slots

Intel CPU

1× PCIe 5.0 x16 slot

Intel Z790 chipset

1× PCIe 4.0 x16 slot (supports x4 mode)

1× PCIe 3.0 x16 slot (supports x1 mode)

1× PCIe 3.0 x1 slot

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz

1× DisplayPort port, supporting max. resolution 8K at 60 Hz

Storage

Intel CPU

1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)

Intel Z790 chipset

6× SATA 6Gb/s ports

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

2× M.2 slot, M key, for 2242/2260/2280 type units (SATA and PCIe 4.0 x4 mode)

RAID 0, RAID 1, RAID 5, and RAID 10 support for both SATA and M.2 NVMe drives

USB

6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

4× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 2 ports available via internal USB connector)

3× USB 3.2 Gen2 Type A ports on the back panel

1× USB-C 3.2 Gen2 port available via internal USB connector

1× USB-C 3.2 Gen 2×2 on the back panel

Audio

Realtek ALC4080 Codec

7.1-channel USB High Performance Audio

S/PDIF output support

HIND

1× Intel 2.5Gigabit LAN controller

WLAN/Bluetooth

Intel Wi-Fi 7

Wi-Fi 802.11a/b/g/n/ac/ax/be

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO TX/RX support

Data transfer speed up to 5.8 Gbps

Bluetooth 5.4

Internal connectors

1× 24pin ATX main power connector

2× 8pin 12V power connector

1× 4pin CPU fan connector

1× 4pin water cooling pump fan connector

6× 4-pin system fan connector

2× front panel connector

1× chassis opening detection connector

1× front panel audio connector

1× TPM connector (supports TPM 2.0)

1× Tuning controller connector

1× USB4 expansion card connector (supports RTD3)

1× Clear CMOS jumper

3× 3pin connector V2 ARGB LED

1× 4-pin RGB LED connector

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen2 connector

4× EZ Debug LEDs

Rear panel ports

1× DisplayPort

1× HDMI

1× Flash BIOS button
/> 2× USB 2.0

2× USB 3.2 Gen1 (USB 3.0)

3x USB 3.2 Gen2 (USB 3.1 Gen2)

1× USB-C 3.2 Gen2x2 (USB 3.2)

1× RJ-45

2× Wi-Fi antenna connector

5× audio jacks

1× optical S/PDIF output

Dimensions

30.5 × 24.4 cm

ATX format
