TP-Link Archer NX500 5G AX3000 Router, 1x GWAN, 2x GLAN, 1x SIM slot, EasyMesh

TP-Link Archer NX500 5G AX3000 Router, 1x GWAN, 2x GLAN, 1x SIM slot, EasyMesh

330,63 €

SKU: PhonesTP-LINK-ARCHER-NX500-13600 Category: Tags: ,

Description

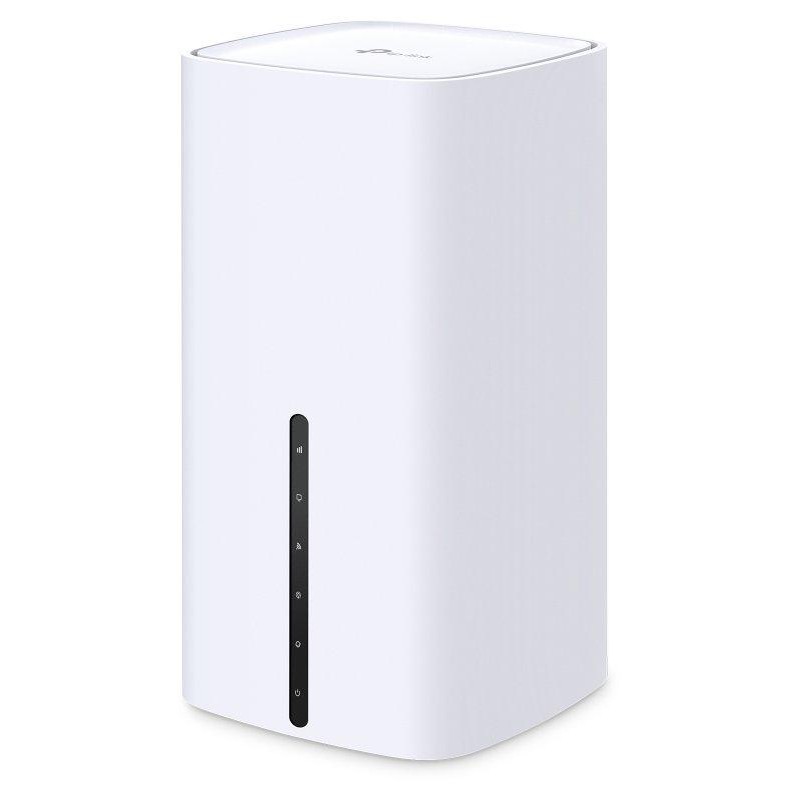

TP-Link Archer NX500

High-speed 5G router with Wi-Fi 6 for sharing your connection anywhere.

TP-Link Archer NX500 is a powerful 5G router with Wi-Fi 6 technology that delivers revolutionary connection speeds of up to 4.67 Gbps . With advanced dual-band technology, it delivers a combined speed of 2976 Mbps (574 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band), enabling smooth 4K/8K video streaming, augmented and virtual reality gaming, and lightning-fast file downloads.

The router offers a plug & play solution with nano SIM card support, ensuring flexible connectivity at home and on the go. With 8 internal 5G/LTE antennas and 3 internal Wi-Fi antennas, it provides maximum coverage and stable connections. With EasyMesh technology, you can easily expand your network and eliminate dead spots.

  • Super-fast 5G connection with transfer speeds of up to 4.67 Gbps
  • Dual Band Wi-Fi 6 with combined speed of 3000 Mbps (574 + 2402 Mbps)
  • EasyMesh compatibility for seamless network expansion
  • Nano SIM card support for instant connection without configuration
  • Gigabit LAN/WAN ports for wired connections
  • Advanced security features including WPA3 encryption
  • Backward compatibility with 4G/LTE networks and traditional modems
  • Easy management with the TP-Link Tether app for Android and iOS

BASIC SPECIFICATIONS

Wireless standard: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz

Transmission speed: 574 Mbps on 2.4 GHz band, 2402 Mbps on 5 GHz band

5G bands: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78

Ports: 2× GbE RJ-45 LAN, 1× GbE RJ-45 LAN/WAN, 1× nano SIM slot, 2× SMA for external 5G/4G antennas

Antennas: 3× internal Wi-Fi, 8× internal 5G/LTE

Security: WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3

Operating modes: 3G/4G/5G router, wireless router

Additional features: guest network, parental control, QoS, VPN server, firewall

Dimensions: 190 × 99 × 99 mm

Operating temperature: 0 to +40 °C

<!– JSON
{
“model”: “Archer NX500”,
“brand”: “TP-Link”,
“type”: “5G AX3000 Dual Bandnd Wi-Fi 6 Router”,
“wifi_standard”: “IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz”,
“max_speed_5g”: “4.67 Gbps”,
“wifi_speed_24ghz”: “574 Mbps”,
“wifi_speed_5ghz”: “2402 Mbps”,
“ports”: “2× Gigabit LAN, 1× Gigabit LAN/WAN, 1× Nano SIM slot, 2× SMA for external 5G/4G antennas”,
“antennas”: “3× internal Wi-Fi, 8× internal NR/LTE”,
“security”: “WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3”,
“operation_modes”: “3G/4G/5G router, wireless router”,
“features”: “guest network, parental control, QoS, VPN server, firewall”,
“dimensions”: “99 × 99 × 190 mm”,
“operating_temperature”: “0 to +40 °C”
}
–>

Additional information

Brand

TP-LINK
Model

Link
Execution

Freestanding
Color

White
Warranty period for registration number (months)

36
Manufacturer

TP-LINK
Warranty length (months)

36
Processed

Approved
Wi-Fi

Yes
RJ-45 (number)

3
Dimensions

190 × 99 × 99mm
ESIM support

No
Outdoor use

No
Indoor use

Yes
Max output power (dBm)

30
Gigabit LAN

Yes
Router mode

Yes
Repeater mode

No
WEP security

Yes
PoE support

No
Port speed

1 Gbps
Operating temperature min. (°C)

0
Transmission speed (Mbps)

2402 (5GHz), 574 (2.4GHz), 4670 (5G)
Wi-Fi standard

802.11a/b/g/n/ac/ax
Wi-Fi frequency

2400MHz/5000MHz
Standards

802.11a/b/g/n/ac/ax
WPA2 security

Yes
Operating temperature max. (°C)

40
Power supply (V)

12 (DC)
Depth (mm)

99
WPA security

Yes
Client mode

No
Height (mm)

190
Width (mm)

99
MicroSD card support

No
Bridge mode

No
Encryption

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Display

No
DHCP

Yes
Antenna design

Without its own antenna (SMA)
AP mode

No
HIND

Yes
SIM slot

Yes
Interface

LAN, WAN, Wi-Fi, 3G, 4G, LTE, 5G
Conformity

CE, RoHS
4G/LTE support

Yes
5G support

Yes
Connector

3x RJ-45, 1x nano SIM, 2x SMA
LED indication

Yes
Sensitivity (dBm)

-80 (5GHz); -78 (2.4GHz)
Number of connectable antennas

2
Output to external antenna

Yes
WPA3 security

Yes
Wi-Fi 2.4GHz (Mbps)

574
Ethernet (Mbps)

1000
3G support

Yes
Wi-Fi 5GHz (Mbps)

2402
IPv6 support

Yes
Slots

2× LAN, 1× LAN/WAN, 1× SIM slot
