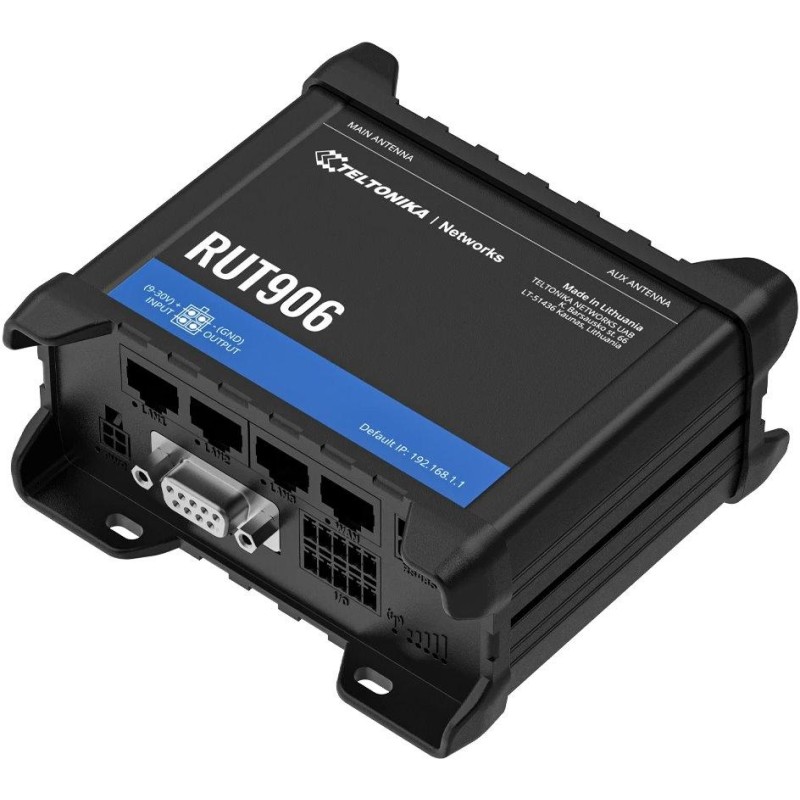

Teltonika RUT906 industrial router, 4G, Dual SIM, RS232/RS485
214,02 €
Description
Teltonika RUT906 Industrial mobile router that provides reliable connectivity in demanding industrial environments (automation, transportation, manufacturing, etc.). This model is equipped with 4G and Wi-Fi wireless connectivity, two SIM slots, 4 Ethernet ports and RS-232 and RS-485 serial interfaces, making it ideal for quick setup of primary and backup connections with remote management. Mounting possible on a DIN rail, wall or flat surface (brackets not included). Connections: 4G/LTE, 3G, 2G Wi-Fi: wireless access point with Hotspot function WAN failover: automatic switching to an available backup connection RMS: remote management, access and VPN services GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS Protocols: support for many protocols including MQTT, Modbus TCP, BACNET, OPC UA and DNP3 SIM: 2× SIM slot (mini SIM, 2FF format) USB: possibility of connecting an external HDD, flash drive, additional modem, printer, USB serial adapter, etc. Serial interface: 1× RS-232, 1× RS-485 Design: aluminum body, IP30 protection Software: Operating system: RutOS (Linux operating system based on OpenWrt) Mobile features: Auto APN, band lock, SIM switching, black/white list of operators, Data/SMS limits Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) Routing: Static routing, dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy based routing Firewall: Port forwarding, traffic rules, custom rules, pre-configured firewall rules, DMZ, NAT, NAT-T, unlimited firewall configuration via CLI VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, L2TPv3, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc Monitoring and management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, BACnet, DNP3, OPC UA, MODBUS, RMS Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden GNSS: NMEA forwarding, NTRIP, AVL, Geofencing For more detailed information, see the attached manual, the documents tab, or the wiki.teltonika-networks.com/view/RUTC906 page. BASIC SPECIFICATIONS Wi-Fi standard: IEEE 802.11b/g/n Data transfer rate: 4G (LTE) – DL: 150 Mbps, UL: 50 Mbps 3G – DL: 21 Mbps, UL: 5.76 Mbps 2G – DL: 236.8 kbps, UL: 236.8 kbps Antenna: 2× SMA connector (LTE), 2× RP-SMA connector (Wi-Fi), 1× SMA connector (GNSS) Ports: 4× RJ-45 (1× WAN, 3× LAN), 2× SIM slot (mini SIM, 2FF format), 1× USB, 1× RS-232, 1× RS-485, 1× DI, 1× DO, 1× 10pin industrial socket for inputs/outputs PoE support: yes, passive Power supply: DC 9–30 V (4pin industrial connector), consumption < 7 W Dimensions: 109.5 × 100 × 50 mm
Additional information
| Brand | TELTONIKA |
|---|---|
| Model | Teltonika |
| Execution | On the wall |
| Color | Black |
| Warranty period for registration number (months) | 26 |
| Manufacturer | TELTONICS |
| Warranty length (months) | 26 |
| Processed | Approved |
| Wi-Fi | Yes |
| Weight (g) | 295 |
| RJ-45 (number) | 4 |
| Weight (kg) | 0.295 |
| Dimensions | 109.5 × 100 × 50mm |
| ESIM support | No |
| Outdoor use | No |
| Indoor use | Yes |
| USB 2.0 (number) | 1 |
| Gigabit LAN | No |
| Router mode | Yes |
| Repeater mode | No |
| WEP security | No |
| PoE support | Yes |
| Port speed | 100 Mbps |
| Operating temperature min. (°C) | -40 |
| Transmission speed (Mbps) | 150 (4G), 21 (3G), 0.2368 (2G) |
| Wi-Fi standard | 802.11b/g/n |
| Wi-Fi frequency | 2400MHz |
| Standards | 802.11b/g/n, 802.3, 802.3az, 802.3u, 802.11r, 802.11e, 802.11v, 802.11k |
| WPA2 security | Yes |
| Operating temperature max. (°C) | 75 |
| Power supply (V) | 9 – 30 (DST) |
| Depth (mm) | 50 |
| WPA security | Yes |
| Client mode | Yes |
| Height (mm) | 109.5 |
| Width (mm) | 100 |
| MicroSD card support | No |
| Bridge mode | Yes |
| Operating mode | AP, Router, STA |
| Encryption | WPA2-Enterprise-PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS |
| Display | No |
| DHCP | Yes |
| Antenna design | Removable |
| AP mode | Yes |
| HIND | Yes |
| SIM slot | Yes |
| Consumption (W) | 7 |
| Degree of protection | IP30 |
| Interface | LAN, WAN, 4G/LTE, Wi-Fi, GPS, USB, RS-485, RS-232 |
| Conformity | EN-IEC, IEC, EN |
| 4G/LTE support | Yes |
| 5G support | No |
| LED indication | Yes |
| Power supply max. (jack) (V) | 30 |
| Number of connectable antennas | 5 |
| LTE/4G/5G (Mbps) | 150 |
| Output to external antenna | Yes |
| Operating system | RutOS |
| WPA3 security | Yes |
| Memory size (MB) | 128 |
| Ethernet (Mbps) | 100 |
| Processor | MediaTek MIPS 24KEc, 580 MHz |
| 3G support | Yes |
| Power supply min. (jack) (V) | 9 |
| IPv6 support | Yes |
| Default IP | 192.168.1.1 |
