Teltonika LTE Wi-Fi Router RUT956, 2.4 GHz, 802.11b/g/n, 2/3/4G, LTE, GPS, 4x DI/DO

Description

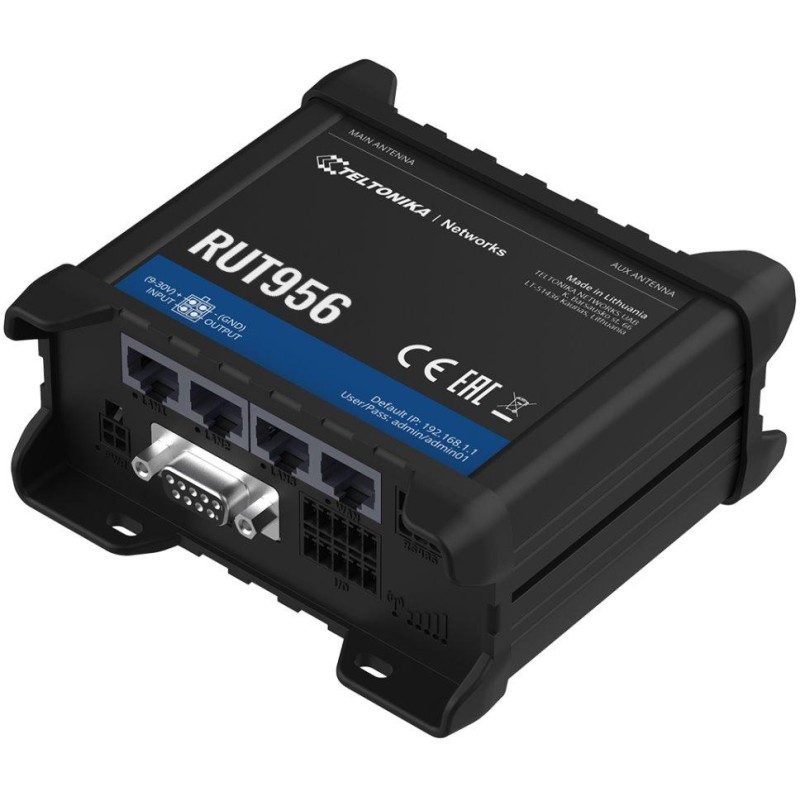

Teltonika RUT956

---

The RUT956 is equivalent to the RUT955 (code NARTEL0002) . This version has a different but comparable chipset, the MediaTek MT7628 CPU, and does not support microSD cards (it does not have an internal µSD slot).

---

RUT956 is a highly reliable and secure LTE router with I/O, GNSS and RS-232/RS-485 for professional applications. The router delivers high performance and GPS functionality for critical mobile communications. It offers 4x RJ45 , RS-485 (6pin), RS-232 (DB9 socket) ports, USB-A port, 5x antenna connectors ( 3x SMA, 2x RP-SMA ), I/O input (10pin) and two SIM card slots , allowing you to use two different mobile service providers and build redundant 4G/LTE or 2G/3G connections with Failover and Fallback functions.

The router will find use, for example, in devices that need to be remotely monitored, such as vending machines, sensors in the energy sector, SCADA systems, public transport vehicles, or Smart City projects.

Mobile part

– Module: 4G (LTE) Cat 4 – up to 150 Mbps, 3G – up to 42 Mbps, 2G – up to 236.8 kbps

– Status: Signal strength, SINR, RSRPO and RSRQ

– SMS notifications

Wireless part

– Wireless modes: IEEE 802.11b/g/n, AP and Station

– Encryption: WPA2-Enterprise – PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation

Ethernet part

– 1x WAN 10/100 Mb/s (auto MDI/MDIX)

– 3x LAN 10/100 Mb/s (auto MDI/MDIX)

Network part

– Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)

– Network protocols: TCP, UDP, IPv4, IPv6, ICMP, UDP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT

– VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers (allow proper routing of VoIP packets).

– Firewall: defines rules for communication (port forwarding, traffic rules, etc.)

– Network backup: backup with failover (connection/power). VRRP, cellular, network or Wi-Fi.

– Load balancing: optimizes network traffic.

VPN

– OpenVPN: encrypted VPN tunnel between host stations and server, 12 encryption methods

– OpenVPN encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

– IPsec: IKEv1, IKEv2, support for up to 4 VPN IPsec tunnels (instances) with five encryption methods (DES, 3DES, AES128, AES192, AES256)

– GRE: GRE tunnel (Generic Encapsulation Protocol)

– PPTP, L2TP: client/server services can be run simultaneously

– Stunnel: an encrypted network tunnel, mainly for programs that do not support SSL. It allows connecting two networks via an encrypted TCP tunnel, or securing the operation of unencrypted protocols or daemons such as IMAP, MySQL, POP, IRC, and others. It adds TLS encryption functionality to existing clients/servers without any code changes.

– SSTP: SSTP protocol support

Firmware customization

– Operating system: RutOS (OpenWrt based Linux OS)

– Supported programming languages: Busybox shell, Lua, C, C++

– Development tools: GPL package (with development environment)

System characteristics

– CPU: Mediatek MT7628, 580 MHz

– RAM: 128 MB, DDR2

– FLASH memory: 16MB SPI Flash

Power supply

– 2pin DC, 9 – 30V

– passive PoE (not compatible with 802.3af/at)

---

More detailed information can be found in the attached manual (documents tab) or on the page wiki.teltonika-networks.com/view/RUT956 .

---

BASIC SPECIFICATIONS

Standard: IEEE 802.11b/g/n

Data transfer speed: 4G – up to 150 Mbps, 3G – up to 42 Mbps, 2G – up to 236.8 kbps

Antenna: 2x SMA connector (LTE), 1x SMA connector (GNNS), 2x RP-SMA connector (Wi-Fi)

Ports: 3x RJ-45 LAN, 1x RJ-45 WAN, 1x RS-485, 1x RS-232 (DB9), 1x USB

Frequency band: 2.4 GHz

Security: WPA2-Enterprise, WPA2-PSK, WPA-PSK, WEP, MAC Filter

PoE support: yes, passive

Power supply: DC 9-30V

Dimensions: 110 x 100 x 50 mm
