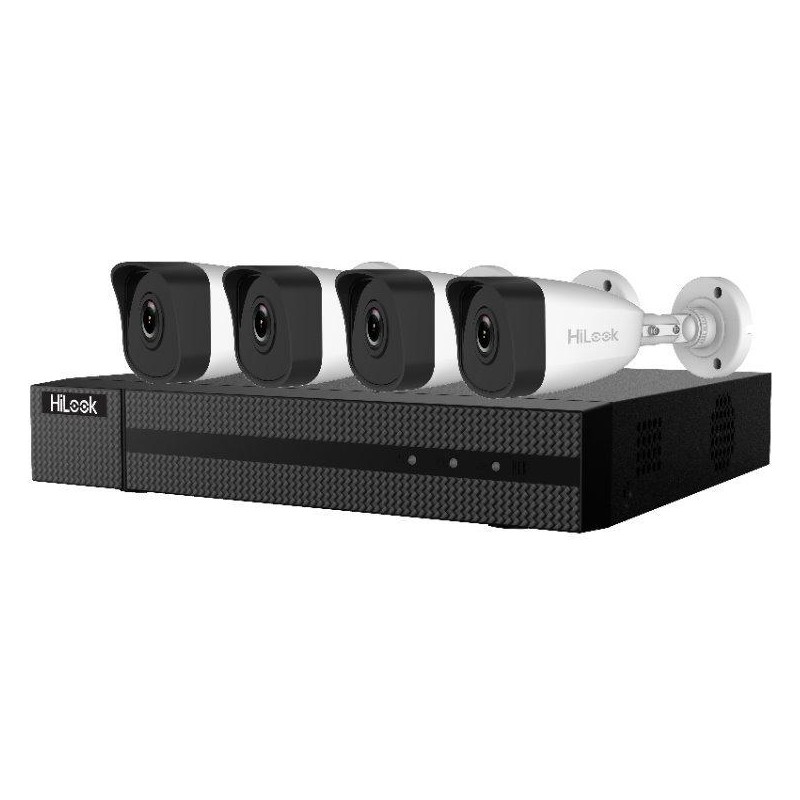

HiLook Powered by HIKVISION/ Network KIT IK-4142BH-MH/P(C)/ 2Mpx/ 4x cameras IPC-B121H 2.8mm/ 1x NVR-104MH-D/4P/ 1TB HDD

Description

HiLook IK-4142BH-MH/P(C)

Recording device assembly with pre-installed 1 TB disk and four 2 Mpx cameras.

NVR 104MH-D/4P

Recording device for 4 IP cameras with PoE power support (max. 36 W, IEEE 802.3af/at). Combinations of different resolutions up to 4 Mpx and data flow up to 60 Mbps are allowed. Support for live view, saving and playback of the connected camera. The device also supports third-party cameras and H.265+ decoding, thanks to which you can save up to 70% of the data volume. There is one slot for a SATA hard drive with a capacity of up to 6 TB.

4× IPC-B121H camera

The 2-megapixel bullet IP camera offers a 1/2.8″ CMOS sensor with a resolution of 1920 x 1080 pixels. It also guarantees high-quality video during night shots thanks to IR illumination up to a distance of 30 m . The connection can be easily made using the RJ-45 port . Thanks to the Hik-Connect application , you can monitor what is happening in your home 24 hours a day, 7 days a week from anywhere via your smartphone. The camera is also resistant to adverse weather conditions according to IP67 certification.

BASIC SPECIFICATIONS

NVR

Number of channels: 4

Supported resolutions: 4 Mpx, 3 Mpx, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

Ports: 1× HDMI, 1× VGA, 1× RJ-45, 4× RJ-45 (PoE support), 2× USB 2.0

HDD: 1× SATA (max. 6 TB)

PoE support: yes

Dimensions: 265 × 225 × 48 mm

Weight: 1 kg

Camera

Sensor chip: 1/2.8″ CMOS

Day/Night: yes

Integrated IR illuminator: yes, up to 30 m

Maximum resolution: 1920 × 1080 at 25/30 fps

Interface: 1× RJ-45

Memory card slot: no

Power supply: PoE (802.3af) or DC 12 V (power supply not included)
