HiLook Powered by HIKVISION/ Smart Home Intercom VI-K23P/ Wi-Fi/ 1080p/ 7″ 1024×600/ Videophone/ IP65

Description

HiLook VI-K23P

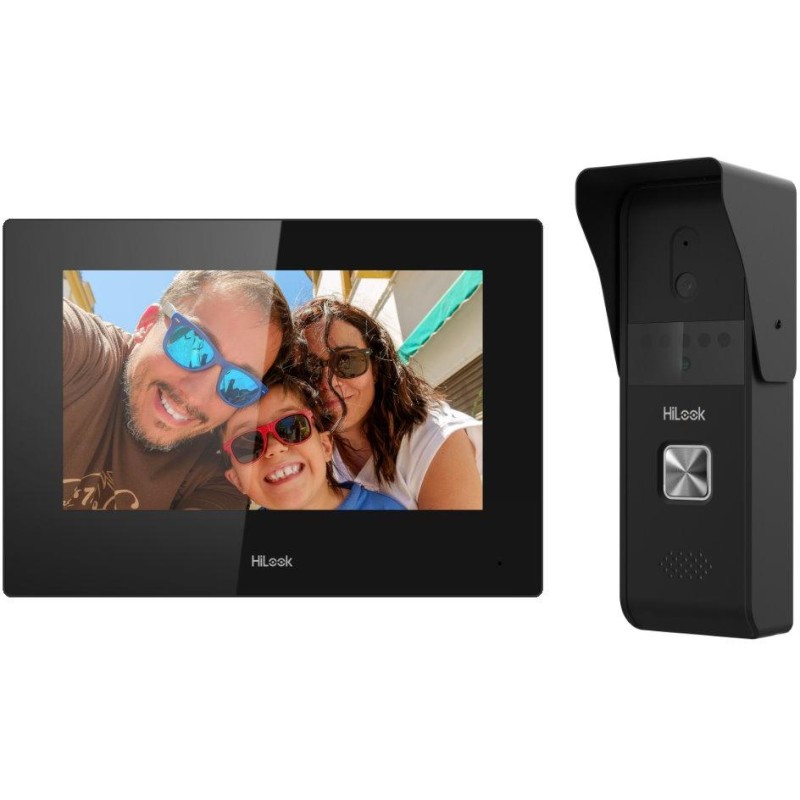

Set of door station (intercom) and 7″ home monitor .

The door station is equipped with a camera with a resolution of 1920 × 1080 px . The camera’s viewing angle is 66.2° horizontally. Of course, there is an integrated microphone and speaker. The connection between the doorbell and the monitor is implemented using 4 wires, and the monitor also supports up to 15 door stations using IP technology in addition to two analog stations. The 7″ touch monitor can be connected to the network using RJ-45 or Wi-Fi . Remote control via the Hik-Connect application is also available. The door station is resistant to adverse influences according to IP65 certification.

BASIC SPECIFICATIONS

Door station

Camera: 2 Mpx

Lens: fixed, angle of view 66.2° horizontally, 37.2° vertically

Resolution: 1920 × 1080

IR illumination: yes, up to 3 m

RFID card reader: no

Interface: 1× 4-wire, 1× lock contact (relay, max. 30 V DC, 1 A)

Audio: integrated microphone and speaker

Power supply: 12 V DC, power adapter included

Dimensions: 145.5 × 51.5 × 49 mm

Color: black

Home monitor

Display: 7″ touch screen, resolution 1024 × 600 px

Interface: 2× 4-wire, 2× alarm input, 2× alarm output, 1× RJ-45, 1× RS-485, 1× microSD card slot (max. 128 GB)

Network: Wi-Fi 802.11b/g/n

Audio: integrated microphone and speaker

Power supply: 12 V DC or PoE (802.3af), power adapter included

Dimensions: 200 × 140 × 23.6 mm

Color: black
