HiLook Powered by HIKVISION/ Smart Home Intercom VI-K46P/ Wi-Fi/ 1080p/ 4.3″ 480×272/ Protective Shield/ IP65

Description

HiLook VI-K46P

Door station (intercom) set with RFID chip reader and 4.3″ home monitor .

The door station is equipped with a camera with a resolution of 1920 × 1080 px and a viewing angle of 131° horizontally. It uses the H.264 codec for image transmission. Of course, there is an integrated microphone, speaker and RFID access chip reader. The connection between the doorbell and the monitor is realized wired using the RJ-45 port. The 4.3″ touch monitor can be connected to the network using RJ-45 or Wi-Fi . Remote control via the Hik-Connect application is also available. The door station is resistant to adverse influences according to IP65 certification. In addition to the power adapter, PoE technology is also available for power supply.

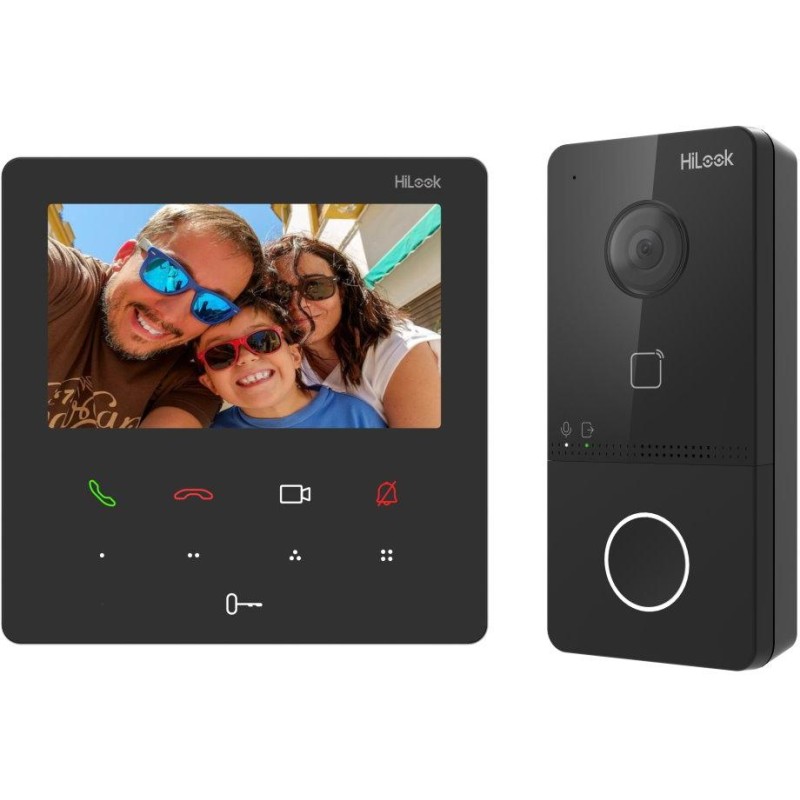

The product photo is illustrative, the set also includes a rain shield.

BASIC SPECIFICATIONS

Door station

Camera: 2 Mpx

Lens: fixed, angle of view 131° horizontally, 78° vertically

Resolution: 1920 × 1080 px

IR illumination: yes, up to 3 m

RFID card reader: yes

Interfaces: 4× alarm input, 1× RJ-45, 1× tamper, 1× RS-485, 1× exit button, 1× door contact, 1× lock contact (relay, max. 30 V DC, 2 A)

Audio: integrated microphone and speaker

Video compression: H.264

Power supply: 12 V DC or PoE (802.3af), power adapter included

Dimensions: 138 × 65 × 27 mm

Color: black

Home monitor

Display: 4.3″ touch, resolution 480 × 272 px

Interface: 1× RJ-45

Network: Wi-Fi 802.11b/g/n, 2.4GHz

Audio: integrated microphone and speaker

Power supply: 12 V DC or PoE (802.3af), power adapter included

Dimensions: 120 × 120 × 21 mm

Color: black
