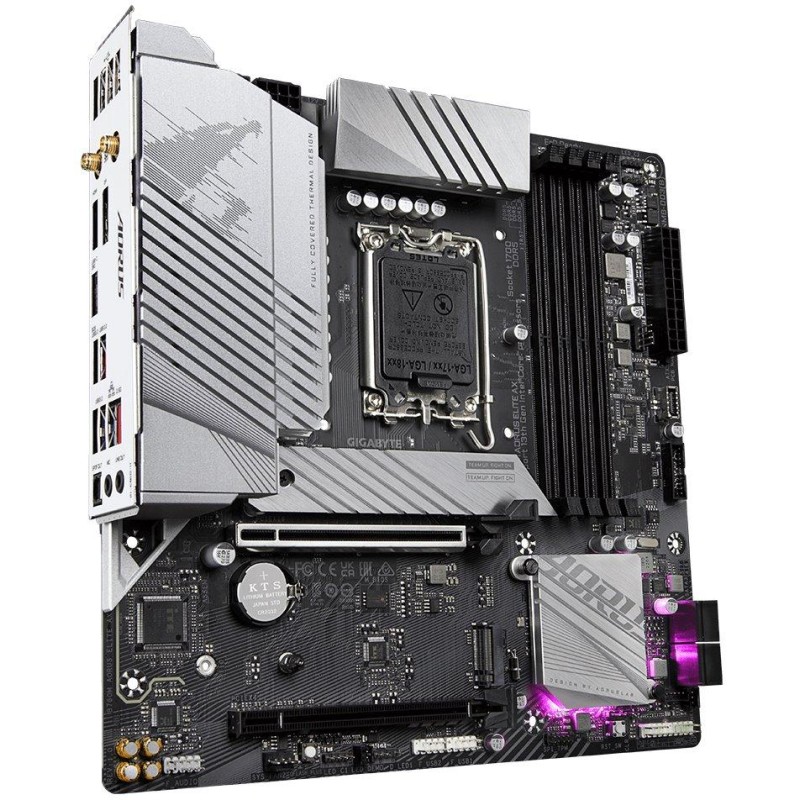

GIGABYTE B760M AORUS ELITE AX / Intel B760 / LGA1700 / 4x DDR5 / 2x M.2 / DP / HDMI / USB-C / WiFi / mATX

GIGABYTE B760M AORUS ELITE AX / Intel B760 / LGA1700 / 4x DDR5 / 2x M.2 / DP / HDMI / USB-C / WiFi / mATX

204,10 €

SKU: MotherboardsGIGABYTE-B760M-AORUS-1700 Category: Tag:

Description

GIGABYTE B760M AORUS ELITE AX

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel B760

Memory

4x DDR5 memory slots, support up to 192 GB

Support DDR5 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800 / 4000 MHz

Dual-channel memory architecture

ECC support, 1Rx8/2Rx8, unbuffered (non-ECC mode)

Support non-ECC, 1Rx8/2Rx8/1Rx16, unbuffered

Intel Extreme Memory Profile (XMP) support

Slots

Intel CPU

1x PCIe 4.0 x16 slot

Intel B760 chipset

1x PCIe 4.0 x16 slot (supports x4 mode)

Graphic arts

1x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz

1x DisplayPort port, supporting max. resolution 4096 x 2304 at 60 Hz

Multi-GPU

AMD CrossFireX technology support

Storage

Intel CPU

1x M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4/x2 mode)

Intel B760 chipset

1x M.2 slot, M Key, for 22110/2280 type units (PCIe 4.0 x4/x2 mode)

4x SATA 6Gb/s ports

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

USB

1x USB 3.2 Gen2x2 Type-C port on the back panel

1x USB 3.2 Gen2 Type C port available via internal USB connector

1x USB 3.2 Gen2 type A port on the back panel

5x USB 3.2 Gen1 (USB 3.0) ports (3 ports on the back panel, 2 ports available via internal USB connector)

8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek Audio Codec

2/4/5.1/7.1 channel High Definition Audio

S/PDIF output support

HIND

1x Realtek 2.5Gigabit LAN controller

WLAN/Bluetooth

Intel Wi-Fi 6E AX211

Wi-Fi 802.11a/b/g/n/ac/ax

Dual Band (2.4 GHz, 5 GHz, 6 GHz)

Bluetooth 5.3

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x 4-pin ATX 12V power connector

1x CPU fan connector

3x system fan connector

2x addressable LED strip connector

2x RGB LED strip connector

2x M.2 slots, M Key

4x SATA 6 Gb/s connector

1x front panel connector

1x front panel audio connector

1x USB 3.2 Gen2 type C connector

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 4x USB 2.0 port)

2x Thunderbolt AIC connector

1x TPM connector (only for GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)

1x Q-Flash Plus button

1x Reset button

1x Reset jumper

1x Clear CMOS jumper

Rear panel ports

2x Wi-Fi antenna connector

1x USB 3.2 Gen2x2 Type-C

1x USB 3.2 Gen2 type A

3x USB 3.2 Gen1 (USB 3.0)

4x USB 2.0

1x DisplayPort

1x HDMI/>
1x RJ-45

1x optical S/PDIF output

2x audio jacks

Dimensions

24.4 x 24.4 cm

Micro ATX format

Additional information

Brand

GIGABYTE
Model

GIGABYTE
Warranty period for registration number (months)

36
Manufacturer

GIGABYTE
Warranty length (months)

36
Processed

Approved
Wi-Fi

Yes
RJ-45 (number)

1
Dimensions

244 × 244 mm
USB 2.0 (number)

4
Gigabit LAN

Yes
Wi-Fi standard

802.11a/b/g/n/ac/ax
USB Type C (number)

1
USB 3.0 (number)

3
Analog audio input/output (number)

2
HDMI (number)

1
TDP (W)

150
USB 3.1 (number)

1
RAM type

DDR5
Chipset

Intel B760
Number of memory slots

4
DisplayPort (number)

1
Motherboard format

MATX
PCI Express X16 (number)

2
RAID controller

Yes
Max RAM size (GB)

192
Processor socket

1700
M.2 port (for expansion cards)

No
SATA III (number)

4
M.2 port (number)

2
Optical audio output (number)

1
SPDIF optical (number)

1
