Description

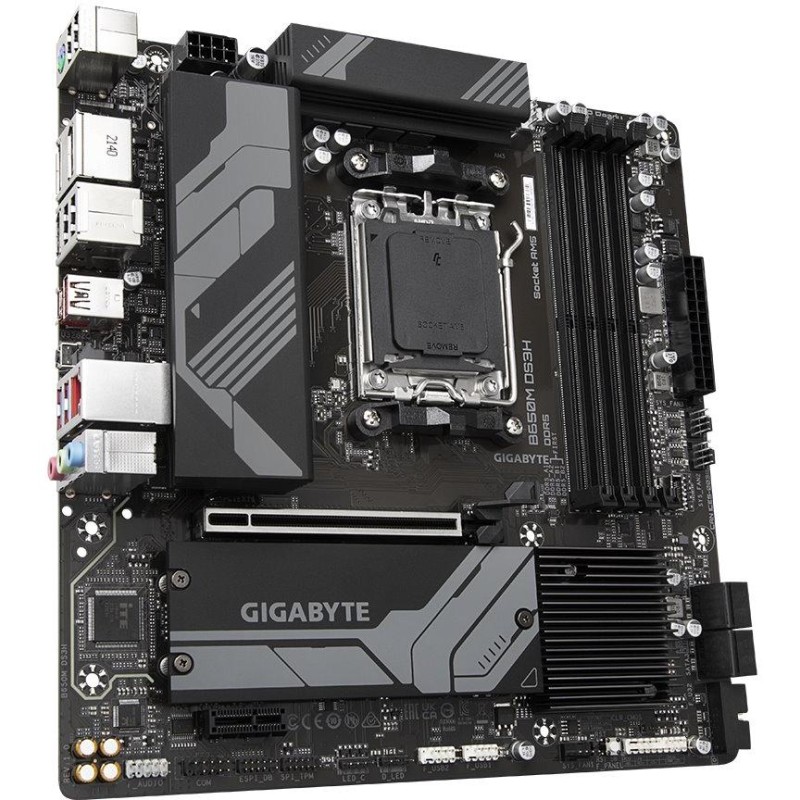

GIGABYTE B650M DS3H

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000 series processors (Socket AM5)

Chipset

AMD B650

Memory

4x DDR5 memory slots, support up to 192 GB

Support DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800MHz

Dual-channel memory architecture

Support non-ECC, unbuffered, 1Rx8/2Rx8/1Rx16

Support for AMD EXtended Profiles for Overclocking (EXPO)

Intel Extreme Memory Profile (XMP) support

Slots

AMD CPU

1x PCIe 4.0 x16 slot

AMD B650 chipset

1x PCIe 3.0 x1 slot

Graphic arts

1x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz

2x DisplayPort port, supporting max. resolution 3840 x 2160 at 144 Hz

Storage

AMD CPU

2x M.2 slot, M Key, for 2280/25110 type units (PCIe 4.0 x4/x2 mode)

AMD B650 chipset

4x SATA 6Gb/s ports

RAID 0, RAID 1 and RAID 10 support for SATA drives

RAID 0, RAID 1 and RAID 10 support for PCIe drives

USB

AMD B650 chipset

1x USB 3.2 Gen2 Type C port available via internal USB connector

4x USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 2 ports available via internal USB connector)

4x USB 2.0 ports available via internal USB connectors

AMD CPU

1x USB 3.2 Gen2 Type-C port on the back panel

1x USB 3.2 Gen2 type A port on the back panel

4x USB 2.0 ports on the rear panel

Audio

Realtek Audio Codec

2/4/5.1/7.1 channel High Definition Audio

HIND

1x Realtek 2.5Gigabit LAN controller

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x CPU fan connector

3x system fan connector

1x addressable LED strip connector

1x RGB LED strip connector

2x M.2 slots, M Key

4x SATA 6Gb/s connector

1x front panel connector

1x front panel audio connector

1x USB 3.2 Gen2 type C connector

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x TPM connector (only supports GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)

1x serial port connector

1x Reset button

1x Reset jumper

1x Clear CMOS jumper

Rear panel ports

1x Q-Flash Plus button

1x PS/2 keyboard and mouse combo port

1x HDMI

2x DisplayPort

1x USB 3.2 Gen2 Type-C

1x USB 3.2 Gen2 (USB 3.1 Gen2)

2x USB 3.2 Gen1 (USB 3.0)

4x USB 2.0

1x RJ-45

3x audio jacks

Dimensions

24.4 x 24.4 cm

Micro ATX format
