GIGABYTE B550 GAMING X V2 / AMD B550 / AM4 / 4x DDR4 / 2x M.2 / DVI-D / HDMI / ATX

Description

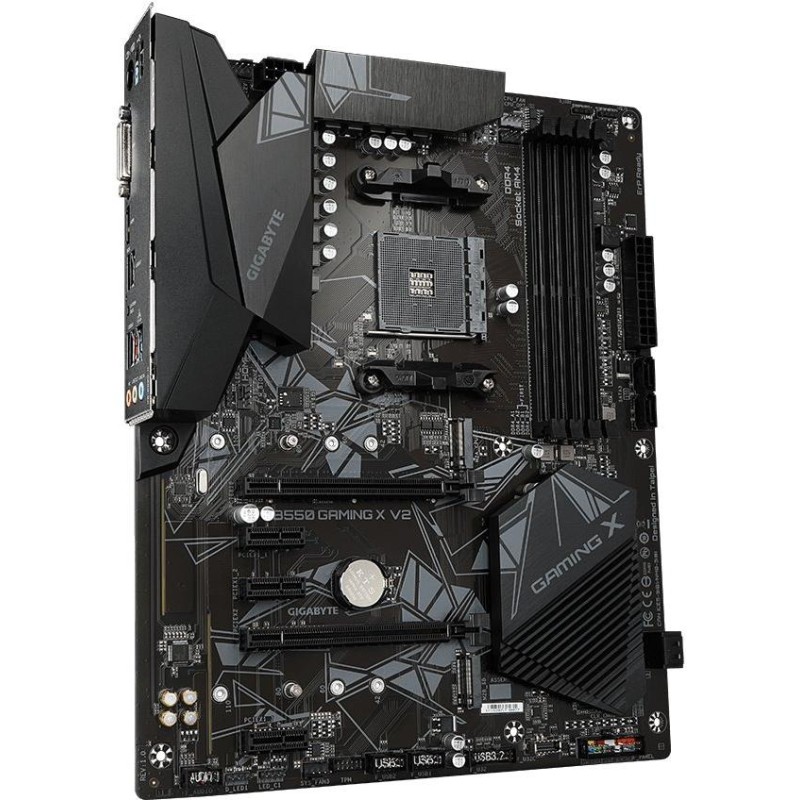

GIGABYTE B550 GAMING X V2

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

AMD Ryzen 5000/ Ryzen 3rd Gen/ Ryzen 3rd Gen with Radeon Graphics (Socket AM4) Processor Support

Does not support Ryzen 5 3400G and Ryzen 3 3200G processors

Chipset

AMD B550

Memory

4x DDR4 memory slots, support up to 128 GB

Support DDR4 4733 (OC)/ 4600 (OC)/ 4400 (OC)/ 4000 (OC)/ 3600 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz

Ryzen 3rd Gen CPU supports DDR4 4400 (OC)/ 4000 (OC)/ 3600 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz

Ryzen 5000 CPU supports DDR4 4266 (OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz

Dual-channel memory architecture

Support non-ECC DIMM, unbuffered, 1Rx8/2Rx8/1Rx16

ECC DIMM support, unbuffered, 1Rx8/2Rx8

Extreme Memory Profile (XMP) support

Graphic arts

Onboard graphics outputs are only functional when used with AMD Ryzen processors with integrated Radeon Vega graphics

1x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz

1x DVI-D port, supporting max. resolution 1920 x 1200 at 60 Hz

Slots

1x PCIe 4.0 x16 slot

Ryzen 3rd Gen CPU with integrated graphics supports PCIe 3.0

1x PCIe 3.0 x16 slot (supports x2 mode)

3x PCIe 3.0 x1 slots

Storage

AMD CPU

1x M.2 slot, M Key, for 2242/2260/2280/22110 type units (SATA and PCIe 4.0 x4/x2 mode)

Ryzen 3rd gen CPU with integrated graphics supports SATA and PCIe 3.0 x4/x2 mode

AMD B550 chipset

1x M.2 slot, M Key, for 2242/2260/2280/22110 type units (SATA and PCIe 3.0 x4/x2 mode)

4x SATA 6Gb/s

RAID 0, RAID 1 and RAID 10 support

USB

AMD B550 chipset

1x USB 3.2 Gen2 (USB 3.1 Gen2) port on the back panel

3x USB 3.2 Gen1 (USB 3.0) ports on the back panel

1x USB 3.2 Gen1 (USB 3.0) Type C port available via internal USB connector

2x USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC887 Codec

2/4/5.1/7.1 channel High Definition Audio

HIND

1x Realtek Gigabit LAN controller

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x CPU fan connector

1x water cooling fan connector

3x system fan connector

1x CPU cooler LED strip/RGB LED strip connector

2x addressable LED strip connector

2x RGB LED strip connector

2x M.2 slots, M Key

4x SATA 6Gb/s connector

1x front panel connector

1x front panel audio connector

1x USB 3.2 Gen1 (USB 3.0) type C connector

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x TPM connector

1x Clear CMOS jumper

Rear panel connectors

1x PS/2 combo portmice and rats

1x HDMI

1x DVI-D

1x USB 3.2 Gen2 (USB 3.1 Gen2)

3x USB 3.2 Gen1 (USB 3.0)

2x USB 2.0

1x RJ-45

1x Q-Flash Plus button

3x audio jacks

Dimensions

30.5 x 24.4 cm

ATX format
