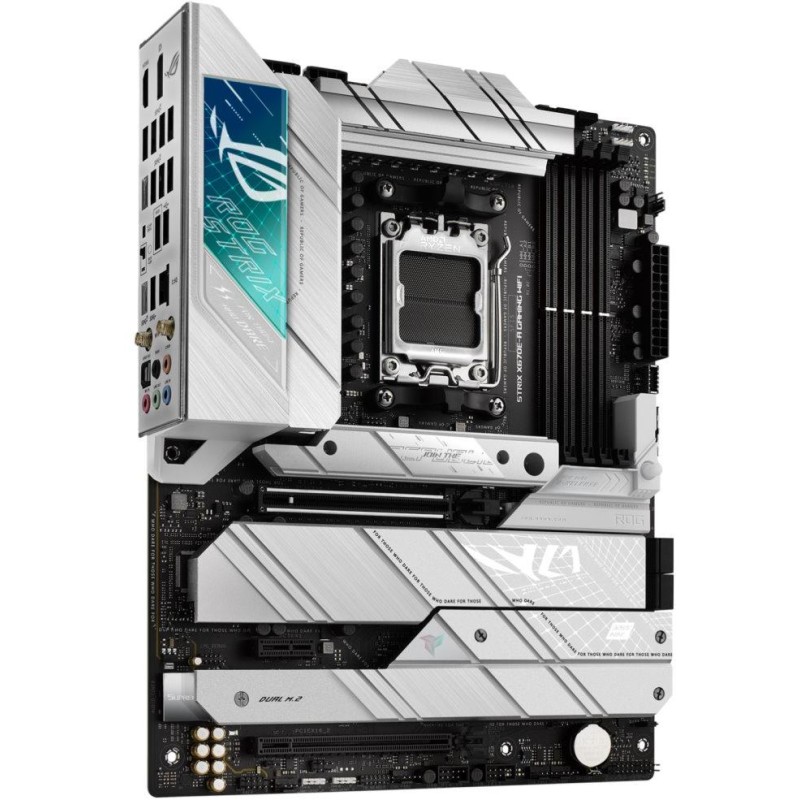

ASUS ROG STRIX X670E-A GAMING WIFI / AMD X670 / AM5 / 4x DDR5 / 4x M.2 / HDMI / DP / USB-C / WiFi / ATX

Description

ASUS ROG STRIX X670E-A GAMING WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000 series processors (Socket AM5)

Chipset

AMD X670

Memory

4× DDR5 memory slots, support up to 192 GB

Support DDR5 6400+ (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200/ 5000/ 4800 MHz

Dual-channel memory architecture

ECC and non-ECC support, unbuffered

Support On-Die ECC function

Support for AMD EXtended Profiles for Overclocking (EXPO)

OptiMem II support

Slots

AMD CPU

1× PCIe 5.0 x16 slot

AMD X670 chipset

1× PCIe 4.0 x16 slot (supports x4 mode)

1× PCIe 3.0 x1 slot

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz

1× DisplayPort port, supporting max. resolution 8K at 60 Hz

Storage

AMD X670 chipset

1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

4× SATA 6Gb/s

AMD CPU

2× M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 5.0 x4 mode)

AMD RAIDXpert2 support

RAID 0, RAID 1 and RAID 10 support for SATA drives

RAID 0, RAID 1 and RAID 10 support for PCIe drives

USB

2× USB-C 3.2 Gen2x2 ports (1 port on the back panel, 1 port available via internal USB connector)

1× USB-C 3.2 Gen2 port on the back panel

7× USB 3.2 Gen2 Type A ports on the back panel

3× USB 3.2 Gen1 (USB 3.0) ports (1 port on the back panel, 2 ports available via internal USB connector)

6× USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

ROG SupremeFX ALC4080 Codec

7.1 channel High Definition Audio

SupremeFX Shielding technology

Savitech SV3H712 AMP

120 dB SNR playback, 113 dB SNR recording

S/PDIF output support

HIND

1× Intel 2.5Gigabit LAN controller

ASUS LANGuard support

WLAN/Bluetooth

AMD Wi-Fi 6E RZ616 (MT7922A22M)

Wi-Fi 802.11a/b/g/n/ac/ax

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Bluetooth 5.2

Internal connectors

1× 24pin ATX main power connector

2× 8pin 12V power connector

4× SATA 6Gb/s connector

4× M.2 slots, M Key

1× USB-C 3.2 Gen2×2 front panel connector

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× 4pin CPU fan connector

1× 4-pin optional CPU fan connector

1× 4pin water cooling pump connector

5× 4pin chassis fan connector

3× addressable RGB LED strip connector

1x Aura RGB LED strip connector

1× CPU Over Voltage jumper

1× front panel audio connector

1× system panel connector (including chassis intrusion detection)

1× temperature sensor connector

1× Thunderbolt connector

Ports on the back panel

1× USB-C 3.2 Gen2×2

1× USB-C 3.2 Gen2

7× USB 3.2 Gen2 (USB 3.1 Gen2)

1× USB 3.2 Gen1 (USB 3.0)

2× USB 2.0

1× DisplayPort

1× HDMI

2× Wi-Fi antenna connector

1× RJ-45

5× audio jacks

1× optical S/PDIF output

1× BIOS Flashback button

1× Clear CMOS button

Dimensions

30.5 × 24.4 cm

ATX format
