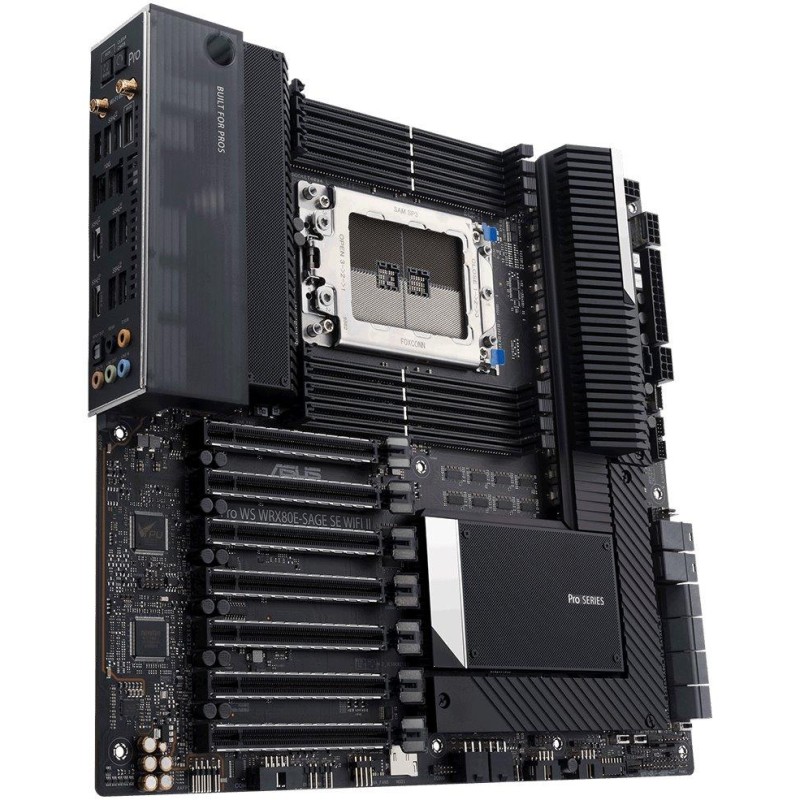

ASUS Pro WS WRX80E-SAGE SE WIFI II / WRX80 / AMD WRX8 4094 / 8x DDR4 / M.2 / Wi-Fi / USB Type-C / eATX

Description

ASUS Pro WS WRX80E-SAGE WITH WIFI II

CPU

Support for AMD Ryzen Threadripper PRO 3000WX and 5000WX series processors (WRX8 socket)

Chipset

AMD WRX80

Memory

8× DDR4 memory slots, support up to 2048 GB

DDR4 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz support

Eight-channel memory architecture

ECC and Non-ECC support, both cached and uncached

Support for RDIMM and LRDIMM memory modules

Slots

7× PCIe 3.0/4.0 x16 slots

Multi-GPU

NVIDIA 4-Way, 3-Way and 2-Way SLI support

Storage

ASMedia ASM1061 controller

4× SATA 6Gb/s ports

AMD WRX80 chipset

4× SATA 6Gb/s ports

1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 and SATA mode)

1× U.2 slot (supports PCIe 3.0 x4 NVMe and SATA)

AMD Ryzen Threadripper PRO

2× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 and SATA mode)

1× U.2 slot (supports PCIe 3.0 x4 NVMe and SATA)

RAID 0, RAID 1, RAID 10 support for SATA drives

RAID 0, RAID 1, RAID 10 support for M.2 NVMe drives

USB

1× USB-C 3.2 Gen2x2 port on the back panel

8× USB 3.2 Gen2 (USB 3.1 Gen2) ports on the back panel

2× USB-C 3.2 Gen2 port (1 port on the back panel, 1 port available via internal USB connector)

2× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

4× USB 2.0 ports available via internal USB connectors

Audio

Realtek ALC4080

7.1 channel High Definition Audio

120 dB SNR playback, 113 dB SNR recording

S/PDIF output support

HIND

1× Intel X550-AT2 Dual 10Gigabit LAN controller

WLAN/Bluetooth

Intel Wi-Fi 6E

Wi-Fi 802.11a/b/g/n/ac/ax

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Bluetooth 5.3

Internal connectors

1× 4pin CPU fan connector

1× 4-pin optional CPU fan connector

6× 4-pin system fan connector

1× VRM fan connector

1× chipset fan connector

1× 24pin ATX main power connector

2× 8pin ATX +12V power connector

2× 6pin PCIe GPU power connector

1× 8pin PCIe power connector

8× SATA 6Gb/s connector

3× M.2 slots, M Key

2× U.2 slots

1× USB-C 3.2 Gen2 (USB 3.1 Gen2) connector

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× BMC switch

1× IPMI switch

1× Message LED connector

1× microSD card slot

2× LAN connector LEDs

1× Location LED connector

1× Location button connector

1× PSU_SMB connector

1× SMART_PSU switch

1× VGA switch

1× VGA connector

1× VPP_I2C connector

1× serial port connector

1× FlexKey button

1× front panel audio connector

1× SPI TPM connector

1× Start button

1× front panel connector and intrusion detection

1× RTC Battery connector

1× temperature sensor connector

Rear panel ports

1× BIOS Flashback button

1× fatClear CMOS button

2× Wi-Fi antenna connector

1× USB-C 3.2 Gen2x2

8× USB 3.2 Gen2 (USB 3.1 Gen2)

1× USB-C 3.2 Gen2 (USB 3.1 Gen2)

2× RJ-45

1× optical S/PDIF output

5× audio jacks

Dimensions

33.02 × 30.98 cm

EATX (EEB) format
