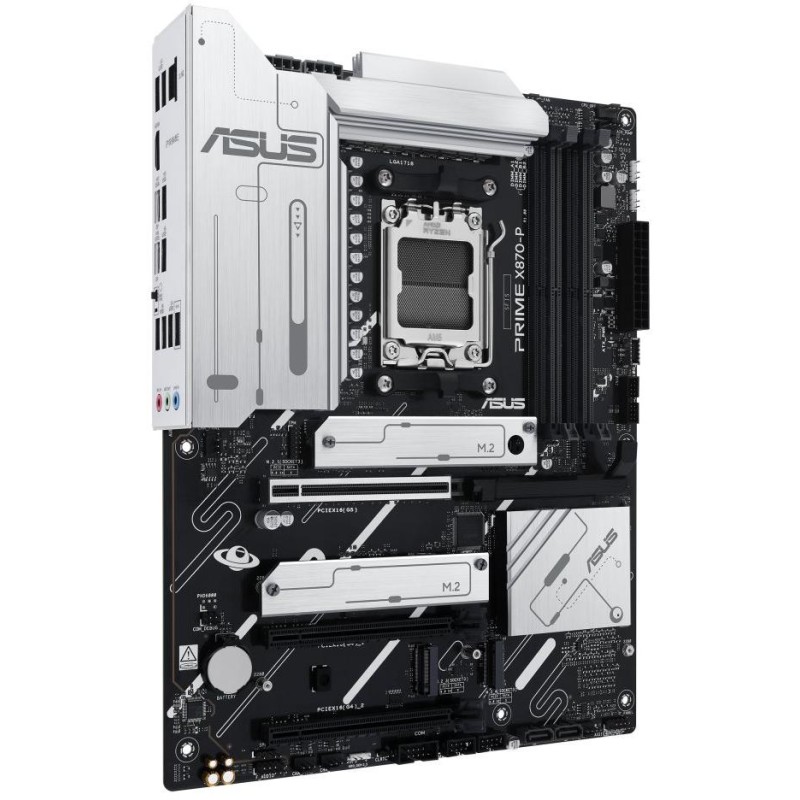

ASUS PRIME X870-P / X870 / AM5 / 4x DDR5 / HDMI / M.2 / ATX

Description

ASUS PRIME X870-P

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 9000/ 8000/ 7000 series processors (Socket AM5)

Chipset

AMD X870

Memory

4× DDR5 memory slots, support up to 192 GB

DDR5 support up to 8000+MT/s (OC)

Dual-channel memory architecture

ECC and non-ECC support, unbuffered

Support On-Die ECC function

Support for AMD Extended Profiles for Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP) support

Slots

AMD Ryzen 9000 and 7000 series

1× PCIe 5.0 x16 slot

AMD Ryzen 8000 series

1× PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD X870 chipset

2× PCIe 4.0 x16 slot (supports x1 mode)

Some PCIe, M.2 slots and SATA connectors share data lines and will not work when installed simultaneously. For more information, please visit the manufacturer’s website.

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz (according to HDMI 2.1)

2× USB4, supporting max. resolution 4K at 60 Hz (according to DP 1.4a)

Storage

AMD Ryzen 9000 and 7000 series

1× M.2 slot, M Key, for type 2280 units (PCIe 5.0 x4 mode)

AMD Ryzen 8000 series

1× M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)

AMD X870 chipset

1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)

1× M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)

1× M.2 slot, M Key, for 2280 type units (PCIe 3.0 x2 mode)

2× SATA 6Gb/s

AMD RAIDXpert2 support

RAID 0 and RAID 1 support for SATA drives

RAID 0, RAID 1, RAID 5, and RAID 10 support for PCIe drives (RAID 5 supported only with 9000 series processors)

Some PCIe, M.2 slots and SATA connectors share data lines and will not work when installed simultaneously. For more information, please visit the manufacturer’s website.

USB

2× USB4 (USB-C) ports on the back panel

1× USB-C 3.2 Gen2 (USB-C 3.1) port available via internal USB connector

1× USB 3.2 Gen2 (USB 3.1) port on the back panel

5× USB 3.2 Gen1 (USB 3.0) (3 ports on the back panel, 2 ports available via internal USB connectors)

8× USB 2.0 (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek Audio Codec

7.1-channel Surround Sound High Definition Audio

HIND

1× Realtek 2.5Gigabit LAN controller

ASUS LANGuard

Internal connectors

1× 24pin ATX main power connector

2× 8pin +12V power connector

2× SATA 6Gb/s

4× M.2 slots, M Key

1× USB-C 3.2 Gen2 (USB-C 3.1) connector

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× 4pin CPU fan connector

1× 4-pin optional CPU fan connector

1× 4pin water cooling pump connector

4× 4pin chassis fan connector

3× addressable RGB LED strip connector

1× Clear CMOS jumper

1× serial port connector

1× audioio front panel connector

1× S/PDIF output connector

1× 14-1pin SPI TPM connector

1× 10-1pin system board connector

Rear panel ports

1× HDMI

2× USB4 (USB-C)

1× USB 3.2 Gen2 (USB 3.1)

3× USB 3.2 Gen1 (USB 3.0)

4× USB 2.0

1× RJ-45

3× audio jacks

1× BIOS Flashback button

Dimensions

30.5 × 24.4 cm

ATX format
