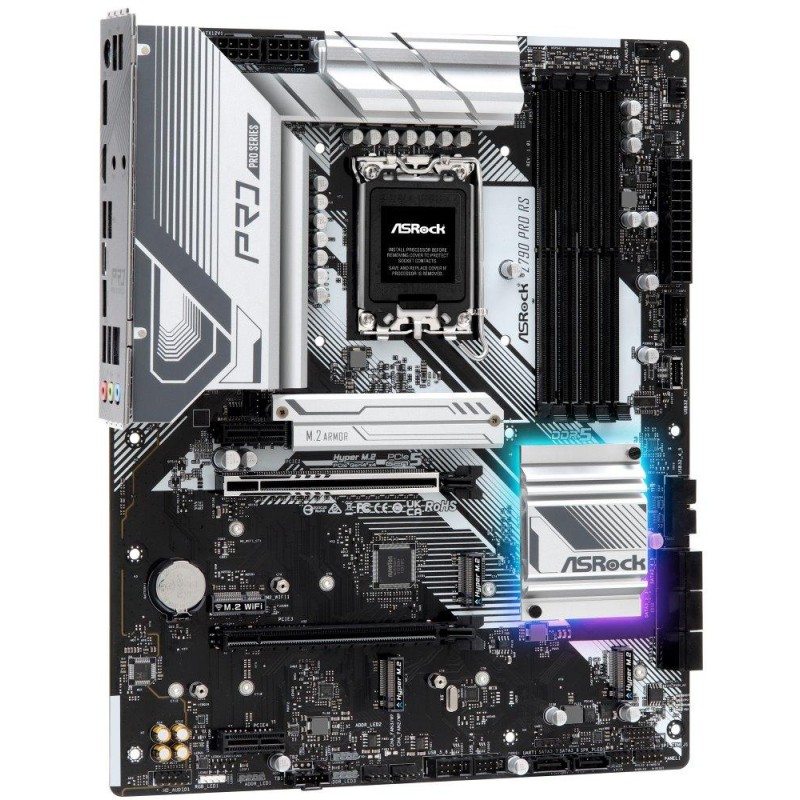

ASRock Z790 Pro RS / Intel Z790 / LGA1700 / 4x DDR5 / 4x M.2 / HDMI / DP / USB-C / ATX

ASRock Z790 Pro RS / Intel Z790 / LGA1700 / 4x DDR5 / 4x M.2 / HDMI / DP / USB-C / ATX

199,20 €

SKU: MotherboardsASROCK-Z790-PRO-RS-I-1700 Category: Tag:

Description

ASRock Z790 Pro RS

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 13th and 12th generation Intel Core/ Pentium Gold/ Celeron processors

LGA1700 socket

Chipset

Intel Z790

Memory

4x DDR5 memory slots, support up to 192 GB

Supports DDR5 up to 6800+ (OC) MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) 3.0 support

Slots

Intel CPU

1x PCIe 5.0 x16 slot

Intel Z790 chipset

1x PCIe 4.0 x16 slot (supports x4 mode)

2x PCIe 3.0 x1 slots

Graphic arts

1x HDMI port, supporting max. resolution 4K at 60 Hz

1x DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz

1x eDP port, supporting max. Full HD resolution at 60 Hz

Multi-GPU

AMD CrossFire technology support

Storage

Intel CPU

1x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

Intel Z790 chipset

3x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

8x SATA 6Gb/s ports

Intel Volume Management Device (VMD) support

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

RAID 0, RAID 1, and RAID 5 support for M.2 NVMe drives

USB

1x USB 3.2 Gen2x2 Type C port available via internal USB connector

1x USB 3.2 Gen2 Type-C port on the back panel

1x USB 3.2 Gen2 type A port on the back panel

6x USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 4 ports available via internal USB connectors)

8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

Nahimic Audio

HIND

1x Dragon RTL8125BG 2.5Gigabit LAN controller

Internal connectors

1x eDP connector

1x SPI TPM connector

1x speaker connector and Power LED

1x RGB LED strip connector

3x addressable LED strip connector

1x 4-pin CPU fan connector

1x 4-pin CPU fan/CPU water cooling fan connector

5x 4-pin chassis fan/CPU water cooling fan connector

1x 24-pin ATX main power connector

2x 8-pin 12V power connector

8x SATA 6Gb/s connector

4x M.2 slots, M Key

1x M.2 slot, E key for Wi-Fi and Intel CNVio/ CNVio2 module (not included)

1x front panel audio connector

1x 5-pin Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC)

2x USB 2.0 connector (supports 4x USB 2.0 port)

2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)

1x USB 3.2 Gen2x2 Type-C front panel connector

Rear panel ports

1x PS/2 keyboard and mouse combo port

1x HDMI

1x DisplayPort

1x USB 3.2 Gen2 (USB 3.1 Gen2) type A

1x USB 3.2 Gen2 (USB 3.1 Gen2) type C

2x USB 3.2 Gen1 (USB 3.0)

4x USB 2.0

1x RJ-45

3x audio jacks

Dimensions

30.5 x 24.4 cm

ATX format

Additional information

Brand

ASROCK
Model

ASRock
Warranty period for registration number (months)

24
Manufacturer

ASROCK
Warranty length (months)

24
Processed

Approved
Wi-Fi

No
RJ-45 (number)

1
Dimensions

305 × 244 mm
Dropshipment - Alza

Yes
USB 2.0 (number)

4
Gigabit LAN

Yes
USB Type C (number)

1
USB 3.0 (number)

2
Analog audio input/output (number)

3
HDMI (number)

1
TDP (W)

125
USB 3.1 (number)

1
RAM type

DDR5
Chipset

Intel Z790
Number of memory slots

4
DisplayPort (number)

1
Motherboard format

ATX
PCI Express X1 (number)

2
PCI Express X16 (number)

2
RAID controller

Yes
Max RAM size (GB)

192
Processor socket

1700
M.2 port (for expansion cards)

Yes
SATA III (number)

8
M.2 port (number)

4
Dropshipment - Alza - frozen

Yes
