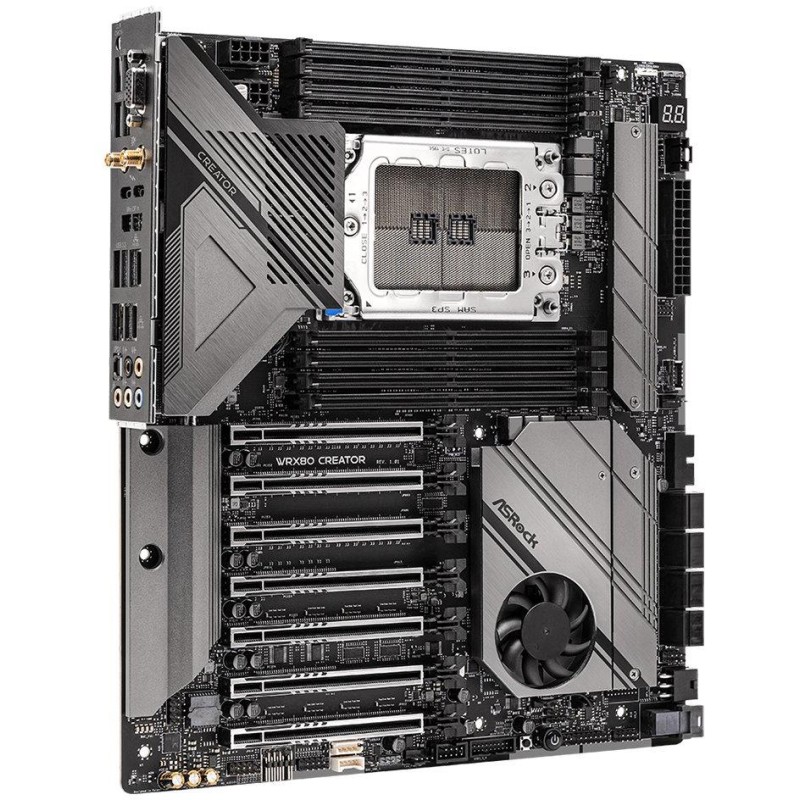

ASRock WRX80 Creator / AMD WRX80 / 8x DDR4 DIMM / 2x M.2 / 1x U.2 / 2x TB4 / 2x MiniDP / 2x 10GLAN / WiFi / EATX

Description

ASRock WRX80 CREATOR

CPU

Support for AMD Ryzen Threadripper PRO 5000WX and 3000WX generation processors (WRX8 socket)

Chipset

AMD WRX80

Memory

8× DDR4 memory slots, support up to 2048 GB

DDR4 3200/ 2933/ 2667/ 2400/ 2133 MHz support

Eight-channel memory architecture

ECC and non-ECC support, both cached and uncached

Support for UDIMM, RDIMM and 3DS RDIMM memory modules

Slots

7× PCIe 4.0 x16 slots (supports x16/x16/x16/x8/x16/x8/x16 mode)

Graphic arts

Aspeed AST2500 BMC

1× VGA port, supporting max. resolution 1920 × 1200 at 60 Hz

Multi-GPU

Support for AMD 4-Way, 3-Way and 2-Way CrossFireX technology

Storage

AMD WRX80 chipset

8× SATA 6Gb/s ports

1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

1× U.2 slot

AMD Ryzen Threadripper PRO

1× Hyper M.2 slot, M Key, for 2260/2280/22110 type units (SATA and PCIe 4.0 x4 mode)

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

RAID 0, RAID 1, RAID 5 support for M.2 NVMe drives

USB

2× Thunderbolt 4 (USB-C 4.0)

4× USB 3.2 Gen2 (USB 3.1) ports on the back panel

6× USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 4 ports available via internal USB connectors)

2× USB 2.0 ports available via internal USB connector

1× USB-C 3.2 Gen2 (USB 3.1) port available via internal USB connector

Audio

Realtek ALC4050H + ALC1220 Codec

7.1 channel High Definition Audio

Premium Blu-ray Audio support

Nahimic Audio

HIND

2× 10Gigabit LAN controller

WLAN/Bluetooth

Intel Wi-Fi 6E AX210

Wi-Fi 802.11a/b/g/n/ax

Dual Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO support

Data transfer speed up to 2.4 Gbps

Bluetooth

Internal connectors

1× SPI TPM connector

1× serial port connector

1x IPMB (Intelligent Platform Management Bus) connector

1× PSU SMBus connector

1× BMC SMBus connector

1× auxiliary panel connector

1× speaker connector and Power LED

1× RGB LED connector

2× addressable LED connector

1× 4pin CPU fan connector

1× 4pin CPU fan/water cooling pump connector

3× 4-pin chassis fan/water cooling pump connector

1× 24pin ATX main power connector

2× 8pin 12V power connector

1× 6pin 12V power connector

1× front panel audio connector

1× right-angle front panel audio connector

1× USB 2.0 connector (supports 2× USB 2.0 port)

2× USB 3.2 Gen1 (USB 3.0) connector (supports 4× USB 3.0 port)

1× USB-C 3.2 Gen2 (USB 3.1) front panel connector

1× NMI button connector

1× Dr. Debug with LED

1× Power button with LED

1× Reset button

8× SATA 6Gb/s connector

2× Hyper M.2 slot, M Key

1× M.2 slot, E Key

1× U.2 slot

Rear panel ports

2× Wi-Fi antenna connector

1× VGA

1× optical S/PDIF output

2× Thunderbolt 4 (USB-C 4.0)

2× Mini DisplayPort input (for prThunderbolt)

4x USB 3.2 Gen2 (USB 3.1) ports

2× USB 3.2 Gen1 (USB 3.0)

2× RJ-45 (LAN)

1× RJ-45 (dedicated IPMI port)

1× Clear CMOS button

5× audio jacks

Dimensions

30.5 × 27.2 cm

EATX format
