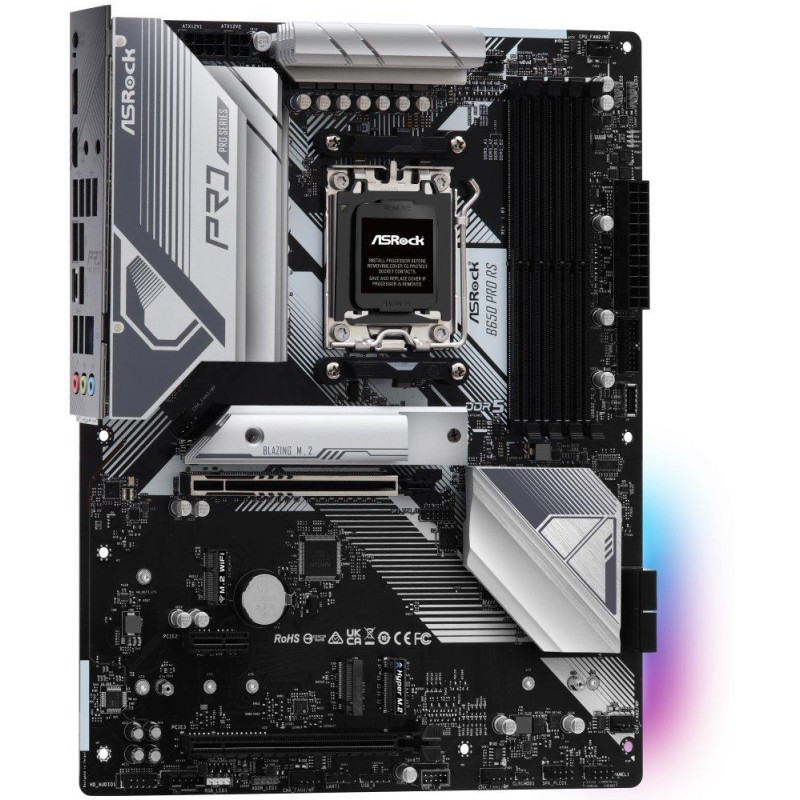

ASRock B650 Pro RS / AMD B650 / AM5 / 4x DDR5 DIMM / 3x M.2 / HDMI / DP / USB-C / ATX

Description

ASRock B650 Pro RS

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 7000 series processors (Socket AM5)

Chipset

AMD B650

Memory

4x DDR5 memory slots, support up to 192 GB

Supports DDR5 up to 6200+ (OC) MHz

Dual-channel memory architecture

ECC/non-ECC support, unbuffered

Support for AMD EXtended Profiles for Overclocking (EXPO)

Extreme Memory Profile (XMP) support

Slots

AMD CPU

1x PCIe 4.0 x16 slot

1x PCIe 3.0 x16 slot (supports x4 mode)

AMD B650 chipset

1x PCIe 4.0 x1 slot

Graphic arts

1x HDMI port, supporting max. resolution 4K at 120 Hz

1x DisplayPort port, supporting max. resolution 4K at 120 Hz

Multi-GPU

AMD CrossFire technology support

Storage

1x Blazing M.2 slot, M Key, for type 2280 units (PCIe 5.0 x4 mode)

1x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)

1x M.2 slot, M Key, for 2242/2260/2280 type units (SATA and PCIe 3.0 x2 mode)

4x SATA 6Gb/s ports

ASRock U.2 Kit Support

RAID 0 and RAID 1 support for SATA drives

RAID 0, RAID 1 and RAID 10 support for PCIe drives

USB

1x USB 3.2 Gen2x2 Type C port available via internal USB connector

1x USB 3.2 Gen2 Type-C port on the back panel

1x USB 3.2 Gen2 type A port on the back panel

4x USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 2 ports available via internal USB connector)

9x USB 2.0 ports (6 ports on the back panel, 3 ports available via internal USB connectors)

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

Nahimic audio

HIND

1x Dragon RTL8125BG 2.5Gigabit LAN controller

Internal connectors

1x SPI TPM connector

1x speaker connector and Power LED

1x RGB LED strip connector

3x addressable LED strip connector

1x 4-pin CPU fan connector

1x 4-pin CPU fan/CPU water cooling fan connector

4x 4-pin case fan/CPU water cooling fan connector

1x 24-pin ATX main power connector

1x 8-pin 12V power connector

1x 4-pin 12V power connector

1x front panel audio connector

1x Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC Card)

2x USB 2.0 connector (supports 3x USB 2.0 port)

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

1x USB 3.2 Gen2x2 Type-C front panel connector

1x M.2 slot, E key for Wi-Fi module (not included)

Rear panel ports

1x HDMI

1x DisplayPort

1x USB 3.2 Gen2 Type-C

1x USB 3.2 Gen2 (USB 3.1 Gen2) type A

2x USB 3.2 Gen1 (USB 3.0)

6x USB 2.0

1x RJ-45

1x BIOS Flashback button

3x audio jacks

Dimensions

30.5 x 24.4 cm

ATX format
