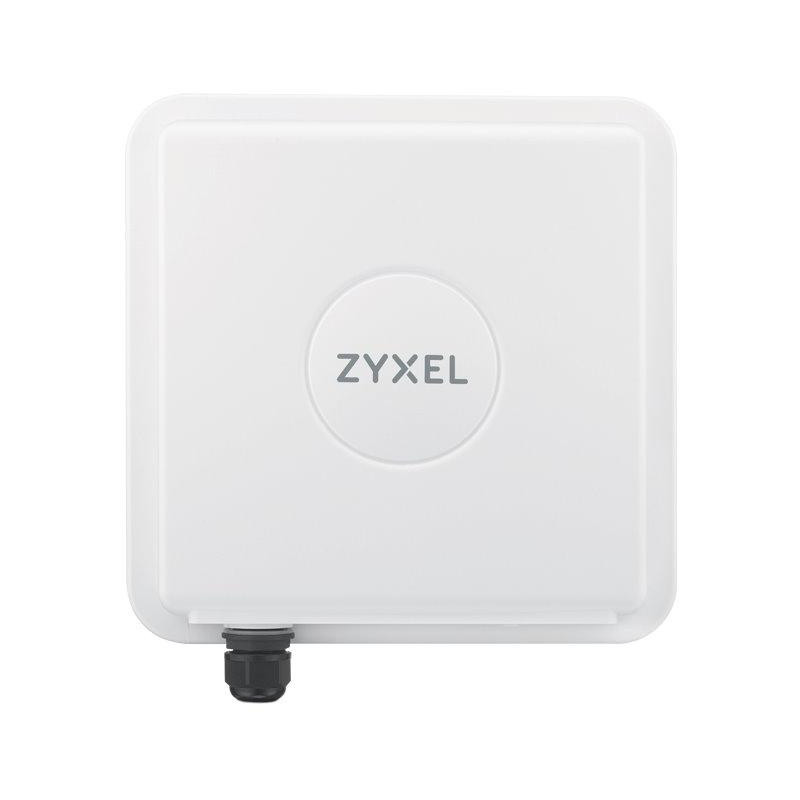

Zyxel LTE7480-M804 Outdoor Router, IP67, CAT12, LTE B1/3/5/7/8/20/38/40/41, WCDMA B1/8, support CA B1+B3

Zyxel LTE7480-M804 Outdoor Router, IP67, CAT12, LTE B1/3/5/7/8/20/38/40/41, WCDMA B1/8, support CA B1+B3

124,93 €

SKU: NV-PCs,LaptopsAndTablets-Computers-AccessoriesZYXEL-LTE7480-M804-O-39007 Categories: , , Tag:

Description

ZyXEL LTE7480-M804

Outdoor 4G LTE-A router offering wireless transmission speeds in the LTE band up to 600 Mbps download (LTE Cat. 12). It has four internal antennas (4×4 MIMO) with a gain of up to 8 dBi . Thanks to support for the TR-069 standard, it allows service providers to manage and configure devices remotely without physical intervention at the end user’s location.

  • Compliant with 3GPP UE Category 12 standard
  • LTE bands support 1/3/5/7/8/20/28/32/38/40/41
  • DL TM1/2/3/4/7/8/9 support
  • LTE antennas – 4 built-in directional antennas with up to 8 dBi/element (4×4 MIMO)
  • DL 2CC support, 4×4 MIMO, 4 spatial streams
  • Supports DL QPSK, 16-QAM, 64-QAM and 256-QAM modulation
  • Support for UL QPSK, 16-QAM and 64-QAM modulation
  • Supports DL speeds up to 600 Mbps
  • UL support up to 150 Mbps

The package includes a PoE injector, Ethernet cable, power cable, grounding kit, PG19 cap and mounting kit (wall/pole).

BASIC SPECIFICATIONS

Standard: IEEE 802.11b/g/n

Data transfer speed: 300 Mbps for 2.4 GHz, 600 Mbps for LTE (download)

Antenna: 4x integrated antenna (8 dBi)

Ports: 1x GbE RJ-45 LAN, 1x microSIM slot (3FF)

PoE support: yes, 802.3af/at

Dimensions: 255 x 254 x 58 mm

Additional information

Brand

ZYXEL
Model

Zyxel
Execution

On the pole
Color

White
Warranty period for registration number (months)

24
Manufacturer

ZyXEL
Warranty length (months)

24
Processed

Approved
Wi-Fi

No
RJ-45 (number)

1
Weight (kg)

1.1
Dimensions

255 × 254 × 58mm
Outdoor use

Yes
Indoor use

Yes
Gigabit LAN

Yes
WEP security

No
PoE support

Yes
Port speed

1 Gbps
Operating temperature min. (°C)

-40
Transmission speed (Mbps)

300 (2.4GHz), 600 (LTE)
Wi-Fi standard

802.11b/g/n
Wi-Fi frequency

2400MHz
WPA2 security

Yes
Operating temperature max. (°C)

60
WPA security

Yes
MicroSD card support

No
DHCP

Yes
Antenna design

Internal
HIND

Yes
SIM slot

Yes
Consumption (W)

16
Conformity

CE, WEEE, RoHS, HSF
4G/LTE support

Yes
Gain (dBi)

3 (2.4GHz), 8 (LTE)
WPA3 security

No
3G support

No
Default IP

192.168.1.1
Default name

Admin
Default password

1234
Modulation

QPSK, 16-QAM, 64-QAM, 256-QAM
