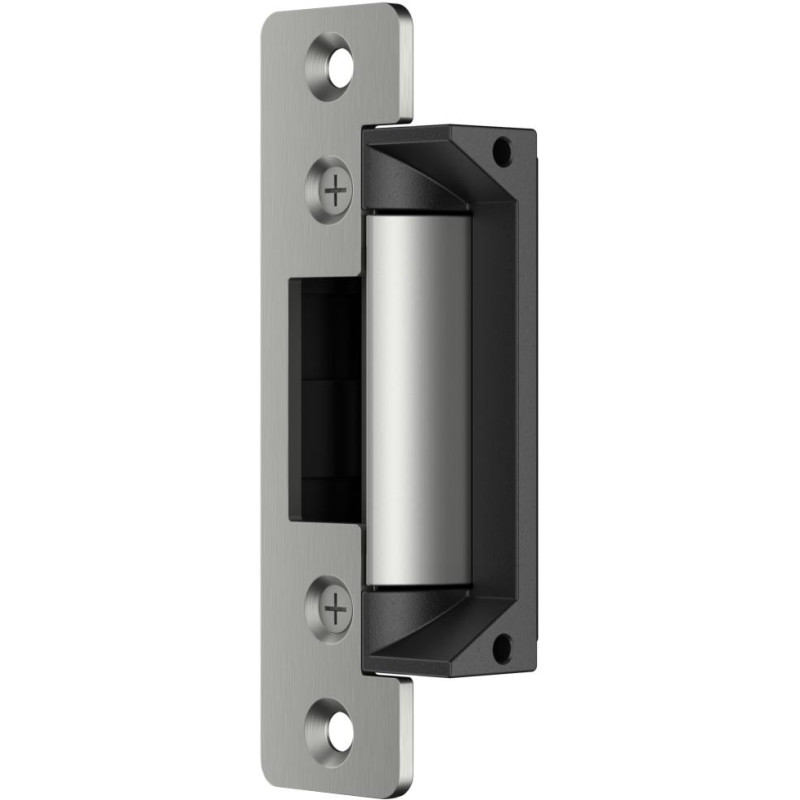

Ubiquiti UniFi Access Electric Lock

Fail-secure electric lock designed for connection to UniFi Access Hub systems.

The professional electric lock with a holding force of 1,200 kg is designed for UniFi Access security systems. The lock is fail-secure , which means that it remains locked in the event of a power failure, ensuring maximum security of the protected areas.

The zinc alloy and stainless steel construction ensures long-term reliability and durability. The lock is compatible with various door types including wooden, steel and aluminum and operates in a wide temperature range from -10 to +45°C .

Compatible systems
The lock is fully compatible with all generations of UniFi Access Hubs including UA-Hub-Door, EAH-8, UA-Hub-Door-Mini, UA-Ultra and UA-Hub-Gate. Connection is via the lock’s powered relay using NO and COM contacts.

Flexible installation
The package includes two front plates – a short 124 × 32 × 3 mm and a long 202 × 36 × 3 mm made of stainless steel to adapt to different types of doors and door frames.

Professional workmanship
The lock body, measuring 80 × 40 × 35 mm, is made of durable zinc alloy with a total weight of only 185 g. The terminal block allows for easy connection of power wires.

BASIC SPECIFICATIONS

Lock type: fail-secure electric lock

Holding force: 1,200 kg

Power supply: 12V DC, 400mA ±10%

Body dimensions: 80 × 40 × 35 mm

Body weight: 185g

Body material: zinc alloy

Front plate material: stainless steel

Compatible doors: wooden, steel, aluminum

Operating temperaturefence: -10 to +45°C

Operating humidity: 5-90% non-condensing

Certification: FCC, IC, CE, NDAA Compliant
