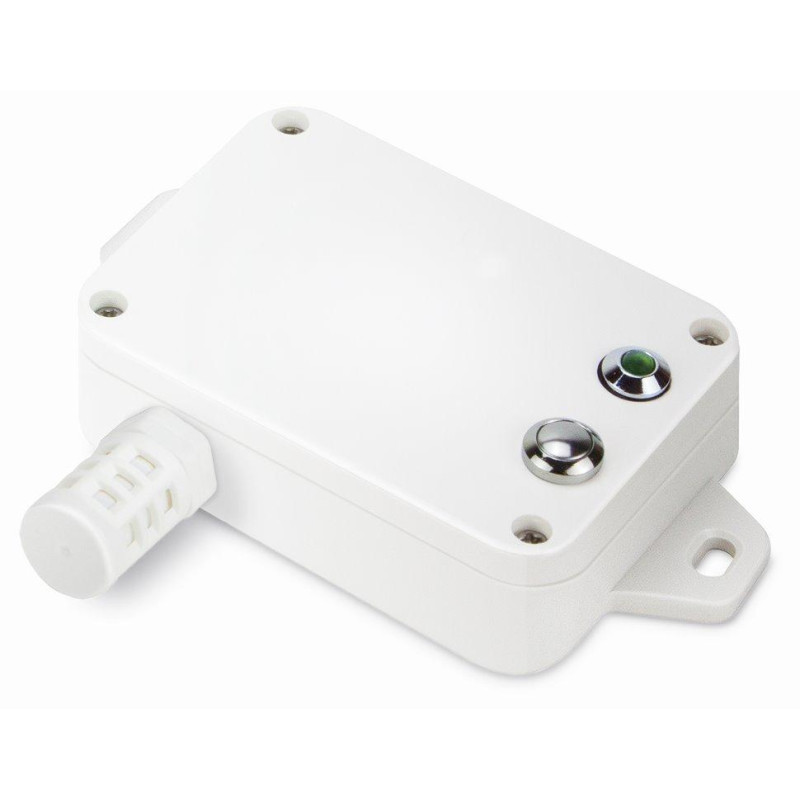

Planet LS200-TH IoT LoRaWAN humidity and temperature sensor -20/+55 for indoor use, IP65

Description

PLANET LS200-TH-868M

The indoor temperature and humidity sensor is widely used in agriculture, pharmaceuticals and logistics. Its IP65 rating ensures reliable operation in harsh environments, while the LoRaWAN connection provides real-time temperature and humidity data. This is essential for maintaining product quality, preventing losses and increasing overall efficiency.

The LoRaWAN LS100/LS200 series sensors are fully compatible with standard LoRaWAN gateways, such as the PLANET LCG-300 series, which support the LoRaWAN Class A protocol. They are ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor allows for seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems.

• Indoor temperature and humidity sensor
• Protection standard IP65
• Compatible with LoRaWAN™ Class A

BASIC SPECIFICATIONS

Wireless transmission:

Technology: LoRaWAN

Frequency: 863–870 MHz

TX power: EU868 16 dBm

Rx Sensitivity:

-136 dBm (LoRa, dispersion factor = 12, data rate = 293 bps)

-121 dBm (FSK, frequency deviation = 5 kHz, data rate = 1.2 kbps)

Working mode: OTAA/ABP Class A

Physical properties:

Measuring range: –20 to +55 °C

Power supply: 2× 3.6 V ER14505 AA batteries (not included)

Battery life: up to 5 years

Protection level: IP65

Operating temperature: –20 to +55 °C, humidity up to 90%

Dimensions: 112 × 65 × 28 mm

Weight: 141g
