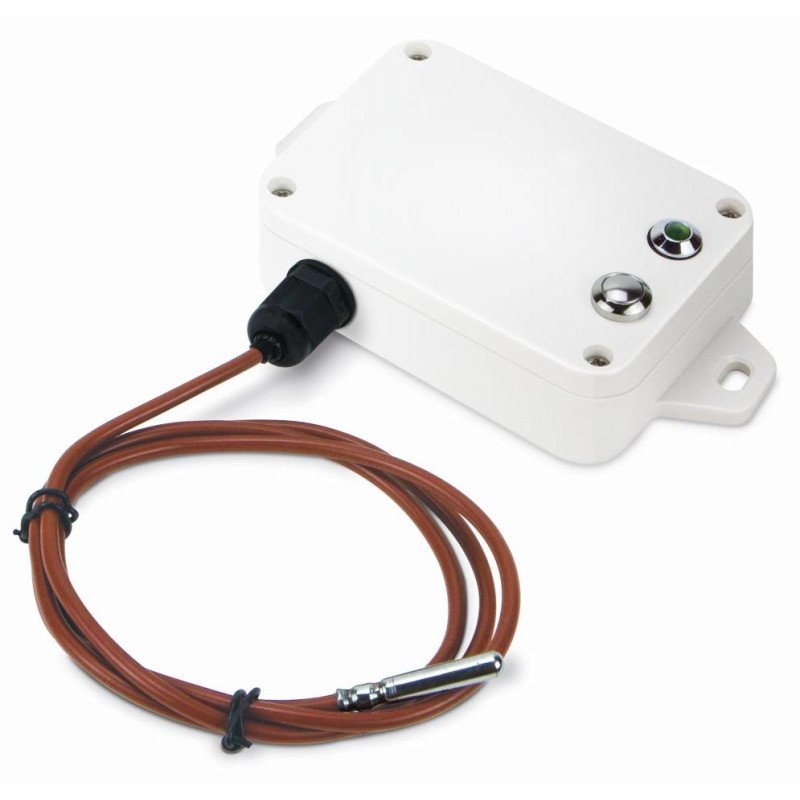

Planet LS200-TC IoT LoRaWAN temperature sensor -40/+125 thermocouple, IP65

Description

PLANET LS200-TC-868M

The thermocouple temperature sensor excels at monitoring temperatures from -40 to +125 °C in industrial environments . It is housed in a robust IP65 housing, ensuring its durability. Using LoRaWAN technology for real-time temperature monitoring, the sensor supports preventive maintenance, extends equipment life, and reduces downtime. The thermocouple increases the usability of the sensor in various industrial environments.

The LoRaWAN LS100/LS200 series sensors are fully compatible with standard LoRaWAN gateways, such as the PLANET LCG-300 series, which support the LoRaWAN Class A protocol. They are ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor allows for seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems.

• Temperature sensor with thermocouple
• Protection standard IP65
• Compatible with LoRaWAN™ Class A

BASIC SPECIFICATIONS

Wireless transmission:

Technology: LoRaWAN

Frequency: 863–870 MHz

TX power: EU868 16 dBm

Rx Sensitivity:

-136 dBm (LoRa, dispersion factor = 12, data rate = 293 bps)

-121 dBm (FSK, frequency deviation = 5 kHz, data rate = 1.2 kbps)

Working mode: OTAA/ABP Class A

Physical properties:

Measurement range: –40 to +125 °C

Probe: thermocouple, 1 m cable

Power supply: 2× 3.6 V ER14505 AA batteries (not included)

Battery life: up to 5 years

Protection level: IP65

Operating temperature: –20 to +55 °C, humidity up to 90%

Dimensions: 112 × 88.19 × 32 mm

Weight: 186g
