Planet LS100-SMK-868M, IoT LoRaWAN smoke sensor, high temperature detection

Description

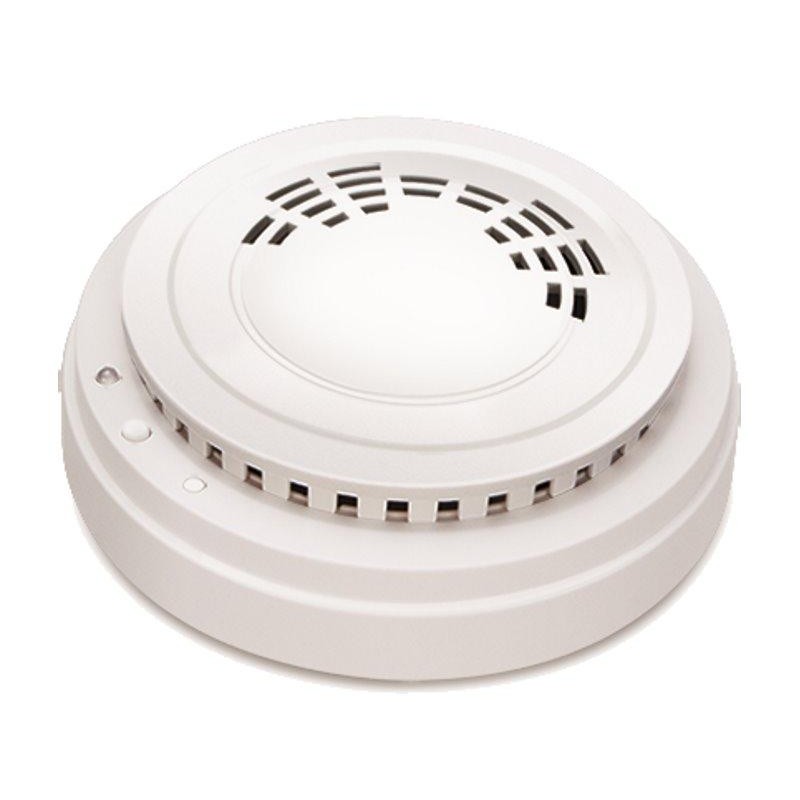

PLANET LS100-SMK-868M

The smoke detector ensures quick identification of smoke particles and provides early warning to prevent potential fire hazards. It activates an alarm when the temperature exceeds 60 °C . It requires 2× 1.5V AAA batteries (not included) for power and offers a lifespan of up to 4.7 years. The sensor is fully compatible with standard LoRaWAN gateways and supports LoRaWAN Class A. It is ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture and more.

The LoRaWAN LS100/LS200 series sensors are fully compatible with standard LoRaWAN gateways, such as the PLANET LCG-300 series, which support the LoRaWAN Class A protocol. They are ideal for large-scale IoT applications, including building automation, smart metering, HVAC systems, agriculture, and more. The sensor allows for seamless integration of multiple sensors, making it a perfect choice for retrofitting legacy assets into IoT-enabled systems.

• Smoke detector
• High temperature detector (>60 °C)
• Siren volume 85 dB
• Protection standard IP20
• Compatible with LoRaWAN™ Class A

BASIC SPECIFICATIONS

Wireless transmission:

Technology: LoRaWAN

Frequency: 863–870 MHz

TX power: EU868 16 dBm

Rx Sensitivity:

-136 dBm (LoRa, dispersion factor = 12, data rate = 293 bps)

-121 dBm (FSK, frequency deviation = 5 kHz, data rate = 1.2 kbps)

Working mode: OTAA/ABP Class A

Physical properties:

Power supply: 2× 1.5 V AAA (not included)

Battery life: up to 4.7 years

Degree of protection: IP20

Operating temperature: –10 to +55 °C, humidity up to 90%

Dimensions: 106 × 106 × 40.6 mm

Weight: 105g
