Planet VCG-1500WG-LTE mobile gateway, 5x LAN, LTE, WiFi, GPS, VPN router, IP30

Description

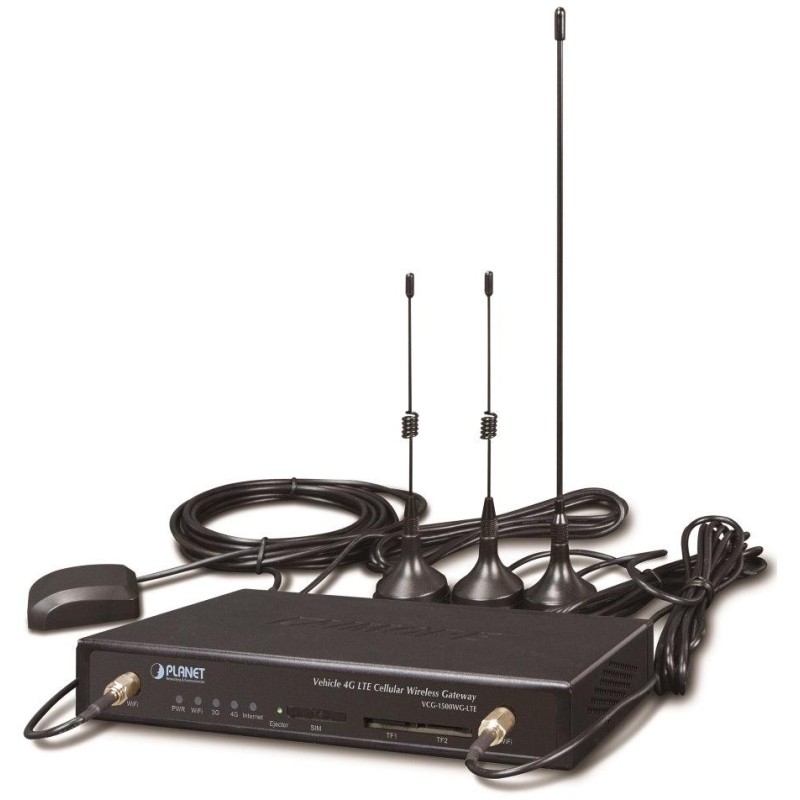

PLANET VCG-1500WG-LTE

Mobile gateway for demanding applications and deployments such as IoV (Internet in Vehicles). It features 4G/LTE wireless technology, Wi-Fi and GPS navigation. The device also offers five Ethernet ports (4 LAN ports and 1 WAN port), VPN technology and bandwidth control, which allows connection to a public network and thus allows passengers to access the Internet. It also contains one SIM card slot, 1 x console port, 2 x TF card slots. The metal housing has an IP30 protection rating. DC 6 – 32 V power supply. Vehicle mounting brackets are included.

Supports multi-band connection with FDD LTE / TDD LTE / WCDMA / GSM / LTE Cat4. One detachable antenna for 4G/LTE mobile connection. LED indication of 3G/4G connection status. Two detachable antennas for 4G/LTE Wi-Fi connection. Compatible with IEEE 802.11b/g/n 2.4GHz. 64-/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK (TKIP/AES encryption). LED indication of status.

BASIC SPECIFICATIONS

Physical properties:

Ports: 4 x RJ-45 LAN 10/100BASE-TX, 1 x RJ-45 WAN 10/100BASE-TX, 1 x RS-232, 1 x SIM input, 1 x USB 2.0, 1 x SMA for LTE, 2 x SMA for Wi-Fi, 1 x SMA for GPS, 2 x TF card (max. 128G)

Design: for car

Power supply: DC 6 – 32V, total power consumption up to 3 W

Protection: ESD up to 15 kV

Operating temperature: -25°C – 65°C, humidity up to 95%

Dimensions: 168 x 104 x 25 mm (without antennas and connector)

Weight: 537 g (without antennas)

Supported LTE bands and frequencies:

FDD LTE B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800)
TDD LTE B38/B40/B41 (2600/2300/2500)
WCDMA B1/B5/B8 (2100/850/900)
GSM/EDGE B3/B8 (1800/900)

Wireless features:

Standard: IEEE 802.11b/g/n 2.4GHz

Wireless mode: Access Point

Transfer speed: 300 Mbps

Encryption: yes, 64/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Range: up to 150 m

Administration functions:

Management: console, Telnet, Web

Network security: supports IP, URL and MAC filter

VPN support: yes, GRE, PPTP, IPSec, L2TP

QoS: Bandwidth management

WAN connection method: PPPoE, Static, DHCP client

---

---

---

---
