HiLook Powered by HIKVISION/ WiFi KIT 1/ IKS-2044BTH-PH/W/ 4Mpx

Description

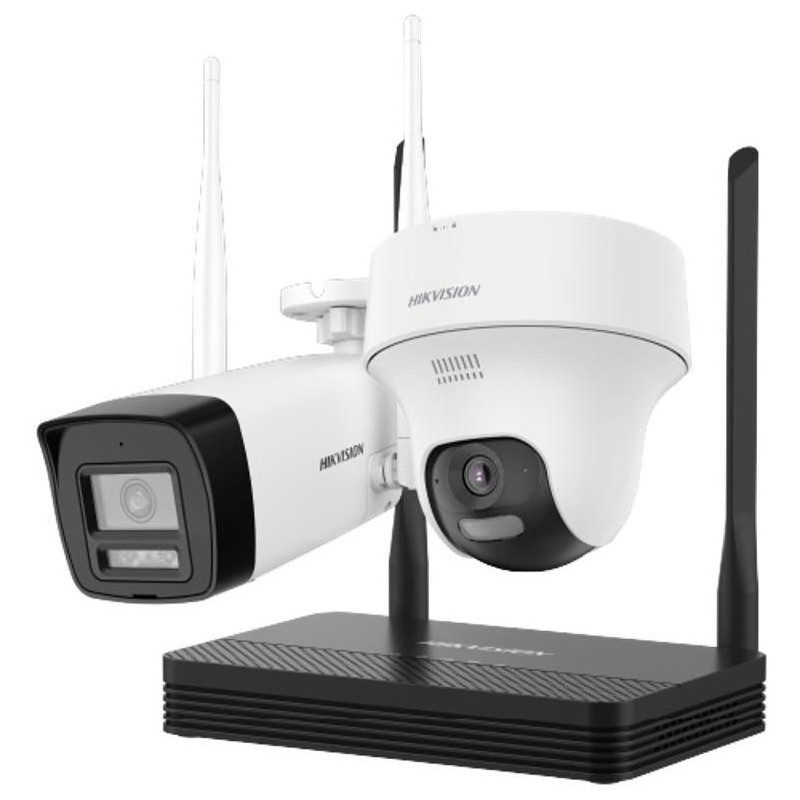

HiLook IKS-2044BTH-PH/W

Recording device assembly with one bullet camera and one turret camera.

NVR

Recording device for 4 IP cameras . Combinations of different resolutions up to 6 Mpx and data flow up to 20 Mb/s are allowed. There is a slot for a microSD card with a capacity of up to 512 GB. Connection is made via RJ-45 port or wirelessly using Wi-Fi technology.

Bullet camera

The 4-megapixel bullet IP camera offers a 1/2.7″ CMOS sensor with a resolution of 2560 × 1440 pixels. It guarantees high-quality video even during night shots thanks to IR illumination up to a distance of 30 m . The connection can be easily made using the RJ-45 port or wirelessly using Wi-Fi technology. The camera can be rotated 360° and tilted up to 90° . There is also a microphone and speaker for two-way communication. The camera is also resistant to adverse weather conditions according to IP66 certification.

Turret camera

The 4-megapixel turret IP camera offers a 1/2.7″ CMOS sensor with a resolution of 2560 × 1440 pixels. It guarantees high-quality video even during night shots thanks to IR illumination up to 20 m and LED illumination up to 15 m . The connection can be easily made using the RJ-45 port or wirelessly using Wi-Fi technology. The camera can be rotated 350° and tilted up to 75° . There is also a microphone and speaker for two-way communication. The camera is also resistant to adverse weather conditions according to IP54 certification.

BASIC SPECIFICATIONS

NVR

Number of channels: 4

Supported resolutions: 6 Mpx, 5 Mpx, 4 Mpx, 3 Mpx, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

Interface: Wi-Fi (802.11b/g/n/ax, 2.4 GHz), 1x RJ-45

Storage: microSD slot (max. capacity 512 GB)

PoE support: no

Dimensions: 163 × 125 × 26 mm

Weight: 500g

Bullet camera

Sensor chip: 1/2.7″ CMOS

Day/Night: yes

Integrated IR illuminator: yes, up to 30 m

Integrated LED light: no

Lens: f = 2.8 mm, angle of view 94° horizontally, 49° vertically, 114° diagonally

Maximum resolution: 2560 × 1440 at 20/25 fps

Interface: Wi-Fi, 1× RJ-45

Memory card slot: no

Power supply: DC 12 V, consumption max. 6 W

Dimensions: 260.9 × 113.9 × 67.4 mm

Turret camera

Sensor chip: 1/2.7″ CMOS

Day/Night: yes

Integrated IR illuminator: yes, up to 20 m

Integrated LED light: yes, up to 15 m

Lens: f = 2.8 mm, angle of view 91.1° horizontally, 47.9° vertically, 110.8° diagonally

Maximum resolution: 2560 × 1440 at 20/25 fps

Interface: Wi-Fi, 1× RJ-45

Memory card slot: no

Power supply: DC 12 V, consumption max. 9 W

Dimensions: 124 × 124 × 119 mm
