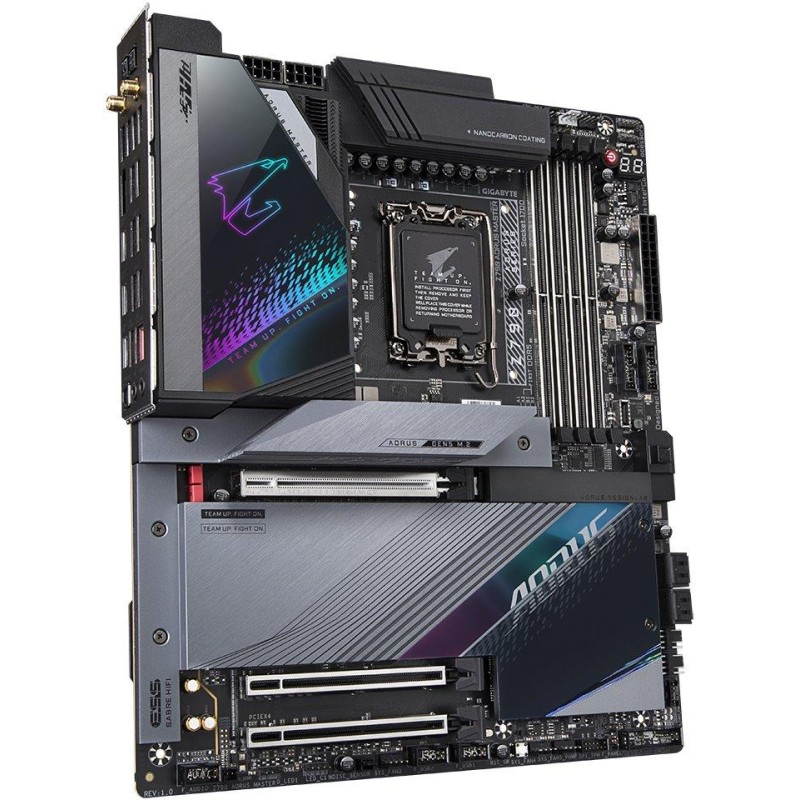

GIGABYTE Z790 AORUS MASTER / Intel Z790 / LGA1700 / 4x DDR5 / 5x M.2 / DP / 3x USB-C / WiFi / EATX

Description

GIGABYTE Z790 AORUS MASTER

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 13th and 12th generation Intel Core/ Pentium Gold/ Celeron processors

LGA1700 socket

Chipset

Intel Z790

Memory

4x DDR5 memory slots, support up to 192 GB

Support DDR5 8000 (OC)/ 7950 (OC)/ 7900 (OC)/ 7800 (OC)/ 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800/ 4000 MHz

Dual-channel memory architecture

Support non-ECC, unbuffered, 1Rx8/2Rx8/1Rx16

ECC memory support (non-ECC mode), 1Rx8/2Rx8

Intel Extreme Memory Profile (XMP) support

Slots

Intel CPU

1x PCIe 5.0 x16 slot

Intel Z790 chipset

1x PCIe 3.0 x16 slot (supports x4 mode)

1x PCIe 3.0 x16 slot (supports x1 mode)

Graphic arts

1x DisplayPort port, supporting max. resolution 4096 x 2304 at 60 Hz

Multi-GPU

AMD CrossFire technology support

Storage

Intel CPU

1x M.2 slot, M Key, for 2280/25110 type units (PCIe 5.0 x4/x2 mode)

1x M.2 slot, M Key, for 2280/22110 type units (PCIe 4.0 x4/x2 mode)

Intel Z790 chipset

1x M.2 slot, M Key, for 2280/22110 type units (PCIe 4.0 x4/x2 mode)

1x M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4/x2 mode)

1x M.2 slot, M Key, for 2260/2280 type units (SATA and PCIe 4.0 x4/x2 mode)

4x SATA 6Gb/s ports

RAID 0, RAID 1, RAID 5 and RAID 10 support for both SATA and NVMe SSDs

USB

3x USB 3.2 Gen2x2 Type C port (2 ports on the back panel, 1 port available via internal USB connector)

1x USB 3.2 Gen1 Type-C port on the back panel

7x USB 3.2 Gen2 Type A ports on the back panel

8x USB 3.2 Gen1 (USB 3.0) ports (4 ports on the back panel, 4 ports available via internal USB connectors)

4x USB 2.0 ports available via internal USB connectors

Audio

Realtek ALC1220-VB Codec

2/4/5.1 channel High Definition Audio

ESS ES9118 DAC chip

DTS:X Ultra support

S/PDIF output support

HIND

1x Marvell AQtion AQC113C 10Gigabit LAN controller

WLAN/Bluetooth

Intel Killer Wi-Fi 6E AX1690

Wi-Fi 802.11a/b/g/n/ac/ax

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Data transfer speed up to 2.4 Gbps

Bluetooth 5.3

Internal connectors

1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connector

1x CPU fan connector

1x CPU water cooling fan connector

4x system fan connector

4x system fan/water cooling pump connector

2x addressable LED strip connector

2x RGB LED strip connector

5x M.2 slots, M Key

4x SATA 6Gb/s connector

1x front panel connector

1x front panel audio connector

1x USB 3.2 Gen2x2 type C connector

2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x connectorr noise detection

2x Thunderbolt AIC connector

1x TPM connector (only supports GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)

1x Power button

1x Reset button

1x Reset jumper

1x Clear CMOS jumper

2x temperature sensor connector

1x voltage measurement points

Rear panel ports

1x Q-Flash Plus button

1x Clear CMOS button

2x Wi-Fi antenna connector

1x DisplayPort

1x USB 3.2 Gen1 Type-C

2x USB 3.2 Gen2x2 Type-C

7x USB 3.2 Gen2 (USB 3.1 Gen2)

4x USB 3.2 Gen1 (USB 3.0)

1x RJ-45

1x optical S/PDIF output

2x audio jacks

Dimensions

30.5 x 26 cm

E-ATX format
