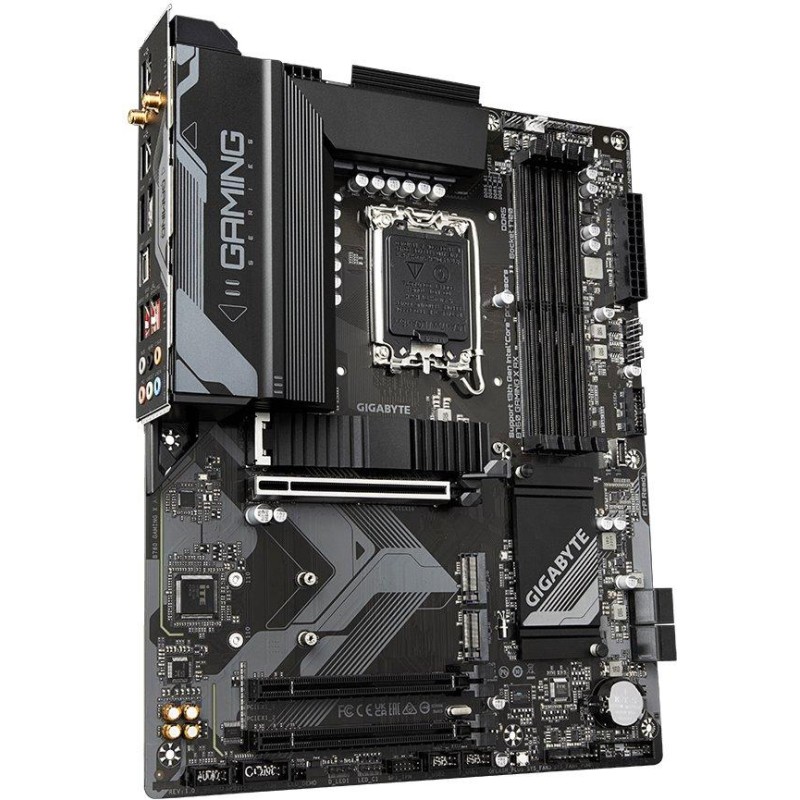

GIGABYTE B760 GAMING X AX

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel B760

Memory

4x DDR5 memory slots, support up to 192 GB

Support DDR5 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800 / 4000 MHz

Dual-channel memory architecture

ECC support, 1Rx8/2Rx8, unbuffered (non-ECC mode)

Support non-ECC, 1Rx8/2Rx8/1Rx16, unbuffered

Intel Extreme Memory Profile (XMP) support

Slots

Intel CPU

1x PCIe 4.0 x16 slot

Intel B760 chipset

2x PCIe 3.0 x16 slot (supports x1 mode)

Graphic arts

1x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz

1x DisplayPort port, supporting max. resolution 4096 x 2304 at 60 Hz

Storage

Intel CPU

1x M.2 slot, M Key, for 22110/2280 type units (PCIe 4.0 x4/x2 mode)

Intel B760 chipset

2x M.2 slot, M Key, for 22110/2280 type units (PCIe 4.0 x4/x2 mode)

4x SATA 6Gb/s ports

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

USB

1x USB 3.2 Gen2 Type C port available via internal USB connector

1x USB 3.2 Gen2 type A port on the back panel

3x USB 3.2 Gen1 (USB 3.0) ports (1 port on the back panel, 2 ports available via internal USB connector)

1x USB 3.2 Gen1 (USB 3.0) Type-C port on the back panel

9x USB 2.0 ports (5 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek Audio Codec

2/4/5.1/7.1 channel High Definition Audio

S/PDIF output support

HIND

1x Realtek 2.5Gigabit LAN controller

WLAN/Bluetooth

AMD Wi-Fi 6E RZ608

Wi-Fi 802.11a/b/g/n/ac/ax

Dual Band (2.4 GHz, 5 GHz, 6 GHz)

Bluetooth 5.2

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x CPU fan connector

1x CPU fan/water cooling pump connector

3x system fan connector

1x system fan/water cooling pump connector

2x addressable LED strip connector

2x RGB LED strip connector

3x M.2 slots, M Key

4x SATA 6 Gb/s connector

1x front panel connector

1x front panel audio connector

1x S/PDIF output connector

1x USB 3.2 Gen2 type C connector

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x TPM connector (only for GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)

1x serial port connector

1x Q-Flash Plus button

1x Reset jumper

1x Clear CMOS jumper

Rear panel ports

1x USB 3.2 Gen2 type A

1x USB 3.2 Gen1 (USB 3.0) type C

1x USB 3.2 Gen1 (USB 3.0) type A

5x USB 2.0

2x Wi-Fi antenna connector>
1x DisplayPort

1x HDMI

1x RJ-45

6x audio jacks

Dimensions

30.5 x 24.4 cm

ATX format
