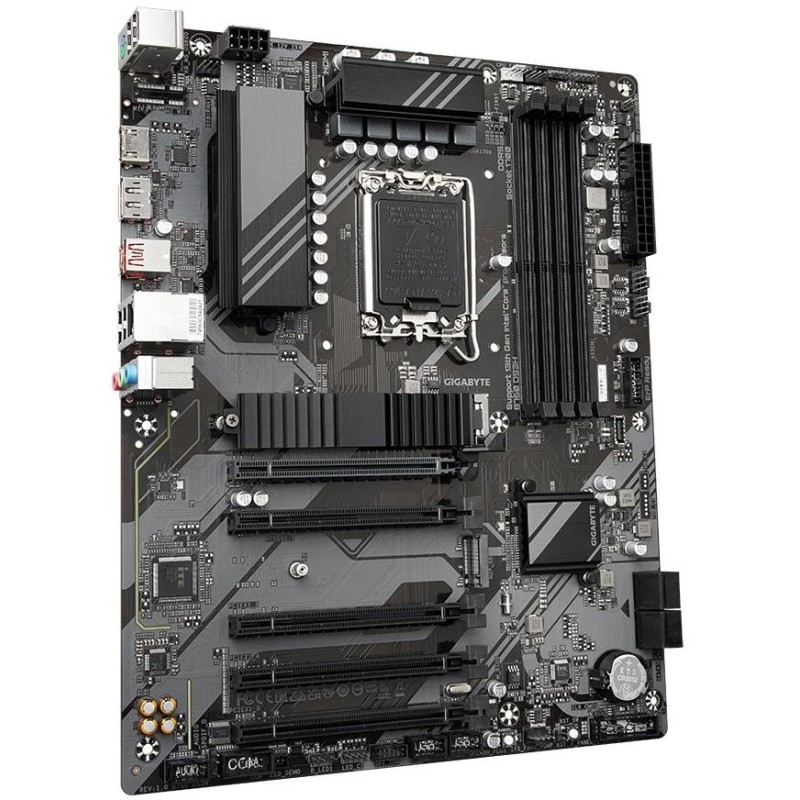

GIGABYTE B760 DS3H

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Supports 12th, 13th and 14th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel B760

Memory

4× DDR5 memory slots, support up to 192 GB

Support DDR5 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800/ 4000 MHz

Dual-channel memory architecture

ECC support, 1Rx8/2Rx8, unbuffered (non-ECC mode)

Support non-ECC, 1Rx8/2Rx8/1Rx16, unbuffered

Intel Extreme Memory Profile (XMP) support

Slots

Intel CPU

1× PCIe 4.0 x16 slot

Intel B760 chipset

4× PCIe 3.0 x16 slot (supports x1 mode)

Graphic arts

1× HDMI port, supporting max. resolution 4096 × 2160 at 60 Hz

1× DisplayPort port, supporting max. resolution 4096 × 2304 at 60 Hz

Storage

Intel CPU

1× M.2 slot, M Key, for 22110/2280 type units (PCIe 4.0 x4/x2 mode)

Intel B760 chipset

1× M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4/x2 mode)

4× SATA 6Gb/s ports

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

USB

1× USB-C 3.2 Gen2×2 port on the back panel

1× USB 3.2 Gen2 port on the back panel

1× USB-C 3.2 Gen1 (USB 3.0) port available via internal USB connector

2× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

8× USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

Realtek Audio Codec

2/4/5.1/7.1 channel High Definition Audio

S/PDIF output support

HIND

1× Realtek Gigabit LAN controller

Internal connectors

1× 24pin ATX main power connector

1× 8pin ATX 12V power connector

1× CPU fan connector

1× CPU fan/water cooling pump connector

3× system fan connector

1× system fan/water cooling pump connector

2× addressable LED strip connector

2× RGB LED strip connector

2× M.2 slot, M Key

4× SATA 6Gb/s connector

1× front panel connector

1× front panel audio connector

1× S/PDIF output connector

1× USB-C 3.2 Gen1 (USB 3.0) connector

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× TPM connector (only for GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)

1× serial port connector

1× Q-Flash Plus button

1× Reset button

1× Reset jumper

1× Clear CMOS jumper

Rear panel ports

1× PS/2 keyboard and mouse combo port

1× USB-C 3.2 Gen2×2

1× USB 3.2 Gen2

4× USB 2.0

1× DisplayPort

1× HDMI

1× RJ-45

3× audio jacks

Dimensions

30.5 × 24.4 cm

ATX format
