GIGABYTE B650 EAGLE AX / AMD B650 / AM5 / 4x DDR5 / ATX

Description

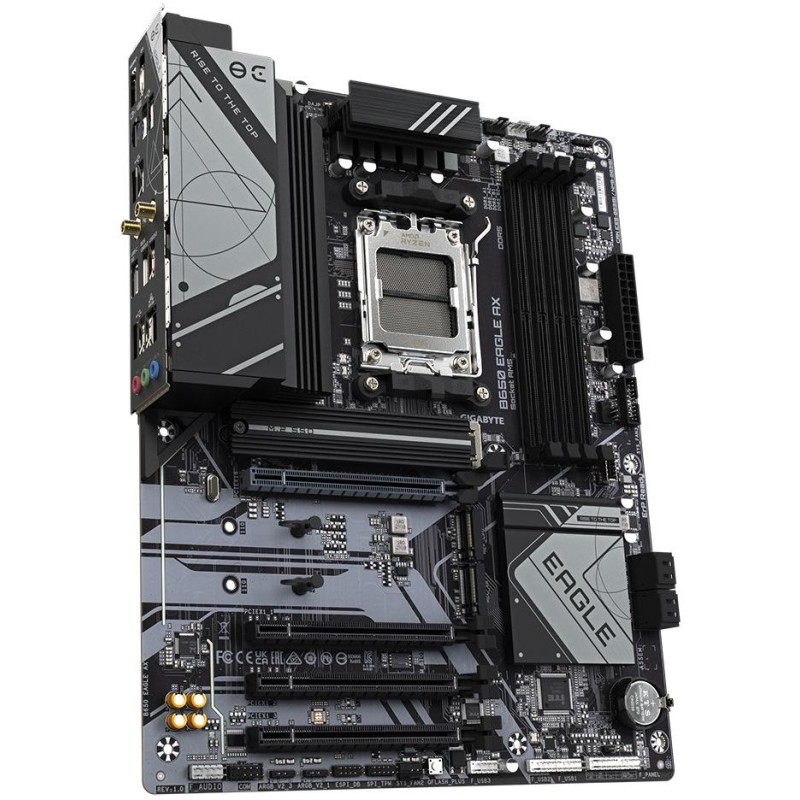

GIGABYTE B650 EAGLE AX

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 9000/8000/7000 series processors (Socket AM5)

Chipset

AMD B650

Memory

4× DDR5 memory slots, support up to 256 GB

Support DDR5 8000 (OC)/ 7800 (OC)/ 7600 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5600 (OC)/ 5200/ 4800 MT/s

Dual-channel memory architecture

Support non-ECC, unbuffered (1Rx8/ 2Rx8/ 1Rx16)

Support for AMD EXtended Profiles for Overclocking (EXPO)

Extreme Memory Profile (XMP) support

Slots

AMD CPU

1× PCIe 4.0 x16 slot

The Ryzen 8000 Phoenix 1 series CPU supports PCIe 4.0 x8 mode

The Ryzen 8000 Phoenix 2 series CPU supports PCIe 4.0 x4 mode

2× PCIe 3.0 x16 slot (supports x1 mode)

AMD B650 chipset

1× PCIe 3.0 x16 slot (supports x1 mode)

Graphic arts

1× HDMI 2.1 port, supporting max. resolution 4096 × 2160 at 60 Hz

1× DisplayPort 1.4 port, supporting max. resolution 3840 × 2160 at 144 Hz

Storage

AMD CPU

1× M.2 slot, M Key, for units of type 25110/22110/2580/2280 (PCIe 5.0 x4/x2 mode)

Ryzen 8000 series CPU supports PCIe 4.0 x4/x2 mode

1× M.2 slot, M Key, for 22110/2280 type units (PCIe 4.0 x2 mode)

AMD B650 chipset

1× M.2 slot, M Key, for 22110/2280 type units (PCIe 4.0 x4/x2 mode)

4× SATA 6Gb/s ports

RAID 0, RAID 1, and RAID 10 support for SATA and M.2 NVMe drives

USB

AMD CPU

2× USB 3.2 Gen2 (USB 3.1) ports on the back panel

1× USB-C 3.2 Gen1 (USB 3.0) port on the back panel

4× USB 2.0 ports on the rear panel

AMD B650 chipset

2× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

1× USB-C 3.2 Gen1 (USB 3.0) port available via internal USB connector

8× USB 2.0 ports (2 ports on the back panel, 6 ports available via internal USB connectors)

Audio

Realtek Audio Codec

2/4/5.1/7.1 channel High Definition Audio

HIND

1× Realtek Gigabit LAN controller

WLAN/Bluetooth

Wi-Fi 802.11a/b/g/n/ac/ax

Triple Band (2.4 GHz, 5 GHz, 6 GHz)

Bluetooth 5.3

Internal connectors

1× 24pin ATX main power connector

1× 8pin ATX 12V power connector

1× CPU fan connector

1× CPU fan/water cooling pump connector

2× system fan connector

1× system fan/water cooling pump connector

3× addressable RGB Gen2 LED strip connector

1× RGB LED strip connector

3× M.2 slots, M Key

4× SATA 6Gb/s connector

1× front panel connector

1× front panel audio connector

1× USB-C 3.2 Gen1 (USB 3.0) connector

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

3× USB 2.0 connector (supports 6× USB 2.0 port)

1× TPM connector (supports GC-TPM2.0 SPI/ GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI v2 module)

1× Q button-Flash

1× serial port connector

1× Clear CMOS jumper

Rear panel connectors

2× Wi-Fi antenna connector

1× DisplayPort

1× HDMI

1× PS/2 keyboard and mouse combo port

1× USB-C 3.2 Gen1(USB 3.0)

2× USB 3.2 Gen2 (USB 3.1)

6× USB 2.0

1× RJ-45

3× audio jacks

Dimensions

30.5 × 24.4 cm

ATX format
