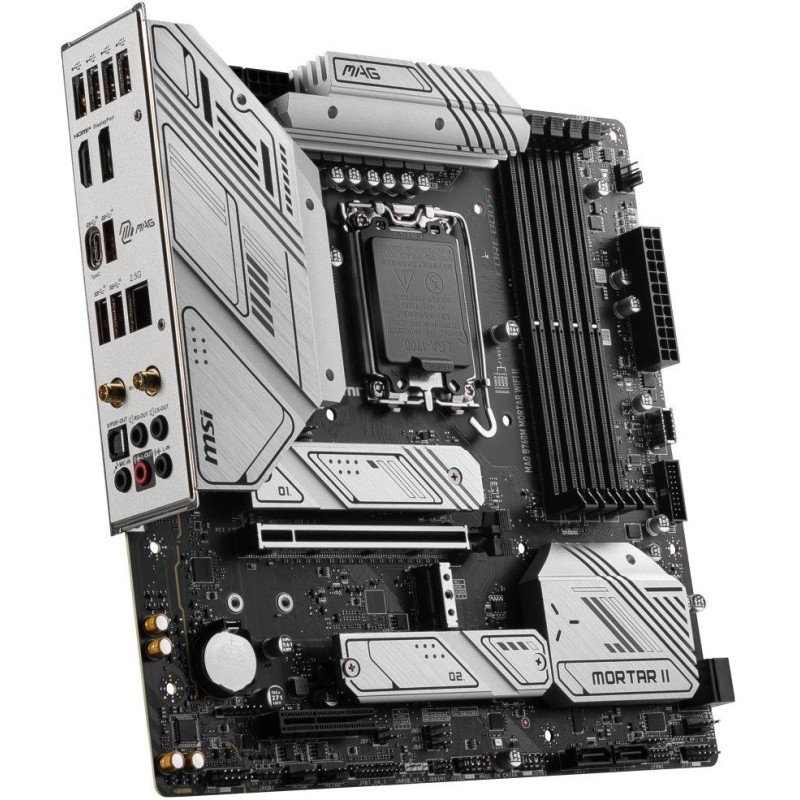

MSI MAG B760M MORTAR WIFI II / Intel B760 / LGA1700 / 4x DDR5 / 3x M.2 / HDMI / DP / USB-C / WiFi / mATX

MSI MAG B760M MORTAR WIFI II / Intel B760 / LGA1700 / 4x DDR5 / 3x M.2 / HDMI / DP / USB-C / WiFi / mATX

194,36 €

SKU: MotherboardsMSI-MAG-B760M-MORTAR-1700 Category: Tags: ,

Description

MSI MAG B760M MORTAR WIFI II

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Supports 12th/13th/14th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel B760

Memory

4× DDR5 memory slots, support up to 192 GB

Support DDR5 7800+ (OC)/ 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) support

Slots

Intel CPU

1× PCIe 5.0 x16 slot

Intel B760 chipset

1× PCIe 3.0 x4 slot

Graphic arts

1× HDMI port, supporting max. resolution 4K at 60 Hz

1× DisplayPort port, supporting max. resolution 4K at 60 Hz

Storage

Intel CPU

1× M.2 slot, M Key, for units of type 2280/2260/2242 (PCIe 4.0 x4 mode)

Intel B760 chipset

4× SATA 6Gb/s ports

1× M.2 slot, M Key, for 2280 type units (SATA and PCIe 4.0 x4 mode)

1× M.2 slot, M Key, for 2280/2260 type units (PCIe 4.0 x4 mode)

RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

USB

8× USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

2× USB 3.2 Gen1 (USB 3.0) ports available via internal USB connectors

3× USB 3.2 Gen2 ports on the back panel

1× USB-C 3.2 Gen2 port available via internal USB connector

1× USB-C 3.2 Gen2×2 port on the back panel

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

HIND

1× Realtek 2.5Gigabit LAN controller

WLAN/Bluetooth

Intel Wi-Fi 6E

Wi-Fi 802.11a/b/g/n/ac/ax

Dual Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO TX/RX support

Data transfer speed up to 2.4 Gbps

Bluetooth 5.3

Internal connectors

1× 24pin ATX main power connector

2× 8pin 12V power connector

1× 4pin CPU fan connector

1× 4pin water cooling pump fan connector

4× 4pin system fan connector

2x system panel connector

1× chassis opening detection connector

1× front panel audio connector

1× controller tuning connector

2× 3pin connector A-RAINBOW V2 (ARGB Gen2) LED

1× 4-pin RGB LED connector

1× TPM connector (supports TPM 2.0)

3× M.2 slots, M Key

4× SATA 6Gb/s connector

2x USB 2.0 connector (supports 4x USB 2.0 port)

1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)

1× USB-C 3.2 Gen2 (USB 3.1) connector

1× USB4 card connector

1× Clear CMOS jumper

4× EZ debug LEDs

Rear panel ports

1× DisplayPort

1× HDMI

1× RJ-45

4× USB 2.0

3x USB 3.2 Gen2 (USB 3.1 Gen2)

1× USB-C 3.2 Gen2×2

2× Wi-Fi antenna connector

1× optical S/PDIF port

5× audio jack

Dimensions

24.4 × 24.4 cm

Micro ATX format

Additional information

Brand

MSI
Model

B760M
Warranty period for registration number (months)

36
Manufacturer

MSI
Warranty length (months)

36
Processed

Approved
Wi-Fi

Yes
RJ-45 (number)

1
Dimensions

244 × 244 mm
Dropshipment - Alza

Yes
USB 2.0 (number)

4
Gigabit LAN

Yes
Wi-Fi standard

802.11a/b/g/n/ac/ax
USB Type C (number)

1
Analog audio input/output (number)

5
HDMI (number)

1
TDP (W)

150
USB 3.1 (number)

3
RAM type

DDR5
Chipset

Intel B760
Number of memory slots

4
DisplayPort (number)

1
Motherboard format

MATX
PCI Express X16 (number)

1
RAID controller

Yes
Max RAM size (GB)

192
Processor socket

1700
M.2 port (for expansion cards)

No
SATA III (number)

4
M.2 port (number)

3
Optical audio output (number)

1
PCI Express X4 (number)

1
SPDIF optical (number)

1
