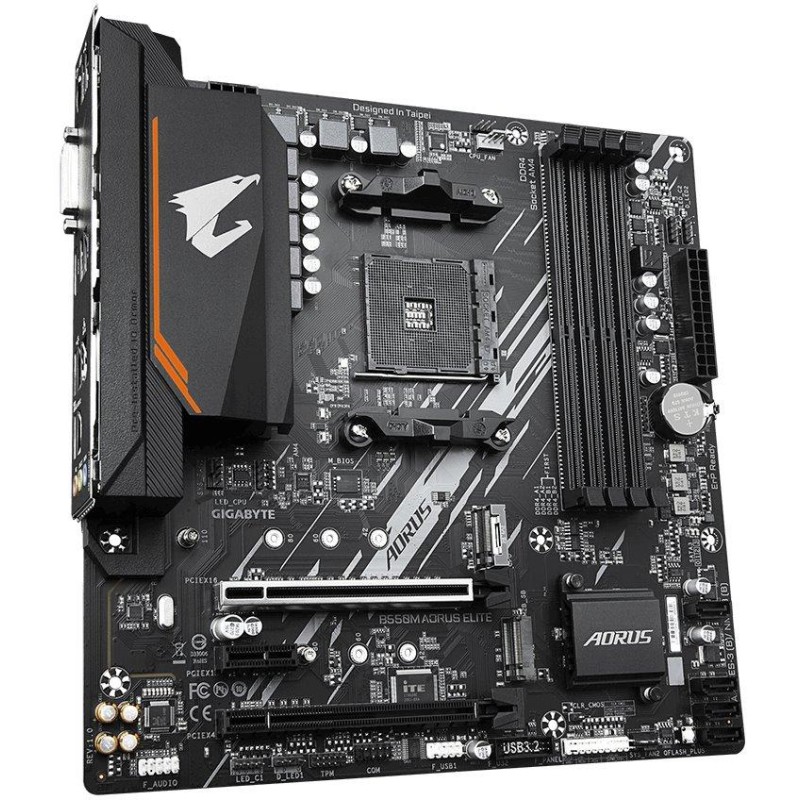

GIGABYTE B550M AORUS ELITE / AMD B550 / AM4 / 4x DDR4 / 2x M.2 / DVI-D / HDMI / mATX

Description

GIGABYTE B550M AORUS ELITE

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 3rd generation AMD Ryzen processors (AM4 socket)

Chipset

AMD B550

Memory

4 x DDR4 memory slots, support up to 128 GB

Supports DDR4 4000 (OC)/ 3600 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz

Ryzen 3rd Gen CPU with integrated graphics supports DDR4 4733 (OC)/ 4600 (OC)/ 4400 (OC)/ 4000 (OC)/ 3600 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz

Dual-channel memory architecture

Support non-ECC DIMM, unbuffered, 1Rx8/2Rx8/1Rx16

ECC DIMM support, unbuffered, 1Rx8/2Rx8

Extreme Memory Profile (XMP) support

Graphic arts

The on-board graphics outputs are only functional when used with AMD Ryzen processors with integrated Radeon Vega graphics.

1 x DVI-D port, supporting max. resolution 1920 x 1200 at 60 Hz

1 x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz

Slots

1 x PCIe 4.0 x16 slot

Ryzen 3rd Gen CPU with integrated graphics supports PCIe 3.0

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slot

Storage

AMD CPU

1 x M.2 slot, M Key, for drives type 2242/2260/2280/22110 (SATA and PCIe 4.0 x4/x2 mode)

Ryzen 3rd gen CPU with integrated graphics supports SATA and PCIe 3.0 x4/x2 mode

AMD B550 chipset

1 x M.2 slot, M Key, for drives type 2242/2260/2280 (SATA and PCIe 3.0 x2 mode)

4 x SATA 6Gb/s

RAID 0, RAID 1 and RAID 10 support

USB

AMD B550 chipset

2 x USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

6 x USB 2.0 ports (4 ports on the back panel, 2 ports available via internal USB connectors)

AMD CPU

4 x USB 3.2 Gen1 (USB 3.0) ports on the back panel

Audio

Realtek ALC887 Codec

2/4/5.1/7.1 channel High Definition Audio

HIND

1 x Realtek Gigabit LAN controller

Internal connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

2 x M.2 slots, M Key

4 x SATA 6Gb/s connectors

1 x CPU fan connector

2 x system fan connector

1 x CPU cooler LED strip/RGB LED strip connector

2 x addressable LED strip connector

2 x RGB LED strip connector

1 x front panel connector

1 x front panel audio connector

1 x USB 3.2 Gen1 (USB 3.0) connector (supports 2 x USB 3.2 Gen1 port)

1 x USB 2.0 connector (supports 2 x USB 2.0 port)

1 x TPM connector

1 x serial port connector

1 x Q-Flash Plus button

1 x Clear CMOS jumper

Rear panel connectors

1 x PS/2 keyboard and mouse combo port

1 x HDMI

1 x DVI-D

4 x USB 3.2 Gen1 (USB 3.0)

4 x USB 2.0

1 x RJ-45

3 x audio jacks

Dimensions

24.4 x 24.4 cm

Micro ATX format
