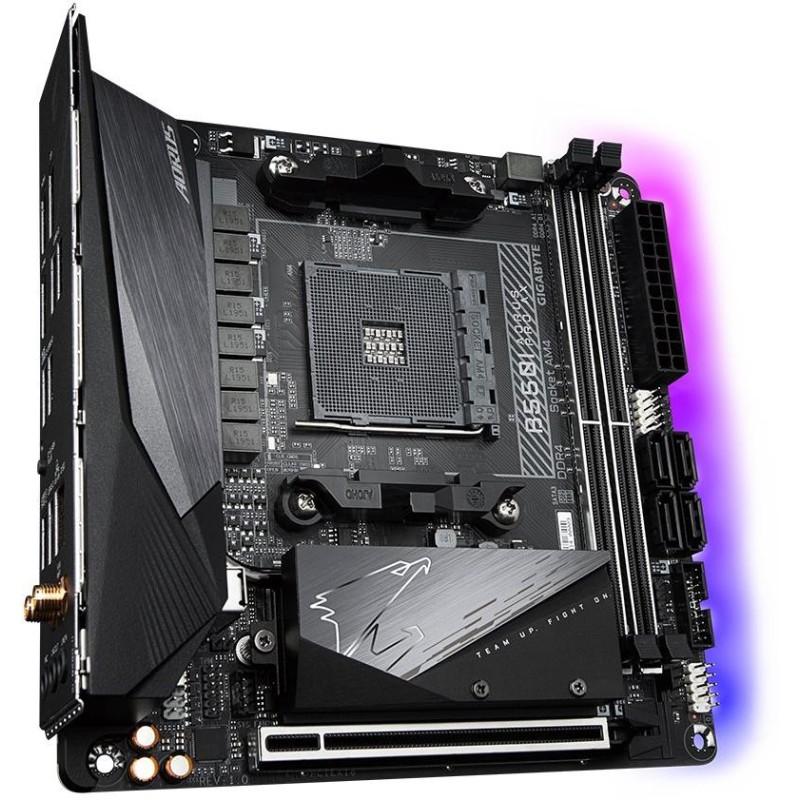

GIGABYTE B550I AORUS PRO AX / AMD B550 / AM4 / 2x DDR4 / 2x M.2 / 2x HDMI / DP / WiFi 6 / mini-ITX

Description

GIGABYTE B550I AORUS PRO AX

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for AMD Ryzen 3rd generation and higher processors (AM4 socket)

Chipset

AMD B550

Memory

2 x DDR4 memory slots, support up to 64 GB

Support DDR4 4866 (OC)/ 4600 (OC)/ 4400 (OC)/ 4000 (OC)/ 3600 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz

Dual-channel memory architecture

Support non-ECC DIMM, unbuffered, 1Rx8/2Rx8/1Rx16

ECC DIMM support, unbuffered, 1Rx8/2Rx8

Extreme Memory Profile (XMP) support

Graphic arts

The on-board graphics outputs are only functional when used with AMD Ryzen processors with integrated Radeon Vega graphics.

1 x DsiplayPort port, supporting max. resolution 5120 x 2880 at 60 Hz

2 x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz

Slots

1 x PCIe 3.0 x16 slot

Ryzen 3rd Gen CPU supports PCIe 4.0

Storage

AMD CPU

1 x M.2 slot, M Key, for 2260/2280 type units (SATA and PCIe 3.0 x4/x2 mode)

Ryzen 3rd Gen CPU supports SATA and PCIe 4.0 x4/x2 mode

AMD B550 chipset

1 x M.2 slot, M Key, for 2260/2280 type units (SATA and PCIe 3.0 x4/x2 mode)

4 x SATA 6Gb/s

RAID 0, RAID 1 and RAID 10 support

USB

AMD B550 chipset

1 x USB 3.2 Gen2 Type-C port on the back panel

1 x USB 3.2 Gen2 (USB 3.1 Gen2) port on the back panel

2 x USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

2 x USB 2.0 ports available via internal USB connector

AMD CPU

4 x USB 3.2 Gen1 (USB 3.0) ports on the back panel

Audio

Realtek ALC1220-VB Codec

2/4/5.1/7.1 channel High Definition Audio

HIND

1 x Realtek 2.5Gigabit LAN controller

WLAN/Bluetooth

Intel AX200

Wi-Fi 802.11a/b/g/n/ac/ax

Dual Band (2.4GHz, 5GHz)

Data transfer speed up to 2.4 Gbps

Bluetooth 5.0

Internal connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

2 x M.2 slots, M Key

4 x SATA 6Gb/s connectors

1 x CPU fan connector

2 x system fan connector

1 x addressable LED strip connector

1 x RGB LED strip connector

1 x front panel connector

1 x front panel audio connector

1 x USB 3.2 Gen1 (USB 3.0) connector (supports 2 x USB 3.2 Gen1 port)

1 x USB 2.0 connector (supports 2 x USB 2.0 port)

1 x TPM connector

1 x Clear CMOS jumper

1 x speaker connector

Rear panel ports

2 x Wi-Fi antenna connector

1 x DisplayPort

2 x HDMI

1 x USB 3.2 Gen2 Type-C

1 x USB 3.2 Gen2 (USB 3.1 Gen2)

4 x USB 3.2 Gen1 (USB 3.0)

1 x RJ-45

1 x Q-Flash Plus button

3 x audio jacks

Dimensions

17 x 17 cm

Mini ITX format
