GIGABYTE B550 AORUS ELITE V2 / AMD B550 / AM4 / 4x DDR4 / 2x M.2 / HDMI / DP / ATX

Description

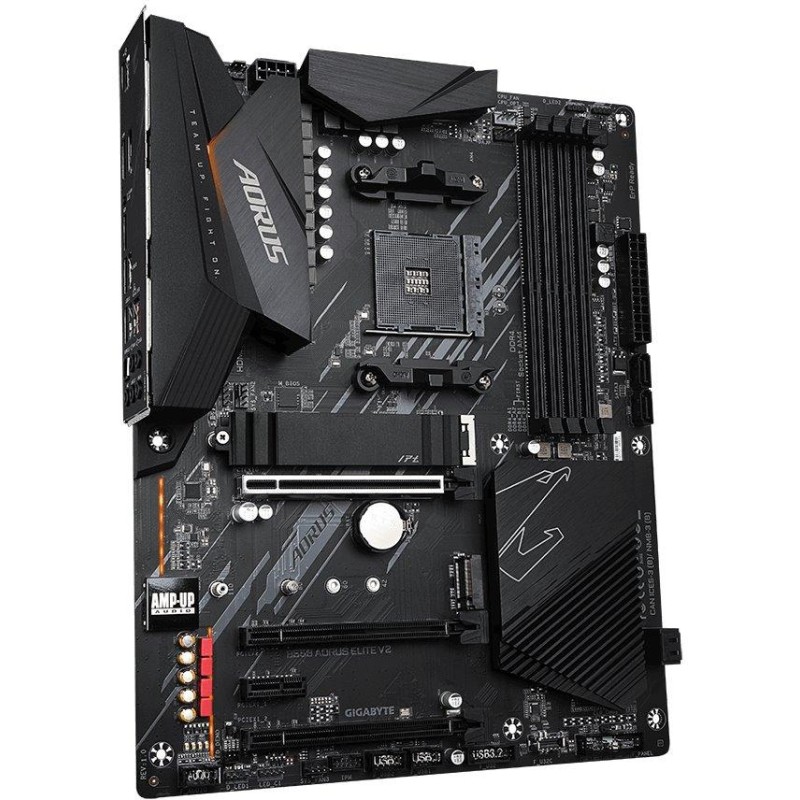

GIGABYTE B550 AORUS ELITE V2

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

AMD Ryzen 5000/ Ryzen 3rd Gen Processor Support (AM4 Socket)

Chipset

AMD B550

Memory

4x DDR4 memory slots, support up to 128 GB

Supports DDR4 4400 (OC)/ 4000 (OC)/ 3600 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz

Ryzen 3rd Gen CPU with Radeon Graphics supports DDR4 4733 (OC)/ 4600 (OC)/ 4000 (OC)/ 3600 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz

Support non-ECC DIMM, unbuffered, 1Rx8/2Rx8/1Rx16

ECC DIMM support, unbuffered, 1Rx8/2Rx8

Extreme Memory Profile (XMP) support

Dual-channel memory architecture

Slots

1x PCIe 4.0 x16 slot

Ryzen 3rd gen CPU with Radeon graphics card supports PCIe 3.0

1x PCIe 3.0 x16 slot (supports x2 mode)

1x PCIe 3.0 x16 slot (supports x1 mode)

1x PCIe 3.0 x1 slot

Graphic arts

Onboard graphics outputs are only functional when used with AMD Ryzen processors with integrated Radeon Vega graphics

1x DisplayPort, supporting max. resolution 5120 x 2880 at 60 Hz

1x HDMI port, supporting max. resolution 4096 x 2160 at 60 Hz

Storage

AMD CPU

1x M.2 slot, M Key, for 2242/2260/2280/22110 type units (SATA and PCIe 4.0 x4/x2 mode)

CPU Ryzen 3rd gen. with Radeon graphics card supports SATA and PCIe 3.0 x4/x2 mode

AMD B550 chipset

1x M.2 slot, M Key, for 2242/2260/2280/22110 type units (SATA and PCIe 3.0 x4/x2 mode)

4x SATA 6Gb/s

RAID 0, RAID 1 and RAID 10 support

USB

AMD B550 chipset

1x USB 3.2 Gen1 Type C port available via internal USB connector

3x USB 3.2 Gen1 (USB 3.0) ports (1 port on the back panel, 2 ports available via internal USB connector)

6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

AMD CPU

2x USB 3.2 Gen1 (USB 3.0) ports on the back panel

2x USB 3.2 Gen2 (USB 3.1 Gen2) ports on the back panel

Audio

Realtek ALC1200 Codec

2/4/5.1/7.1 channel High Definition Audio

Support for digital S/PDIF output

HIND

1x Realtek 2.5Gigabit LAN controller

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

2x M.2 slots, M Key

4x SATA 6Gb/s connector

1x CPU fan connector

1x water cooling fan connector

3x system fan connector

1x connector for LED on CPU cooler/ RGB LED strip

2x addressable LED strip connector

2x RGB LED strip connector

1x front panel connector

1x front panel audio connector

1x USB 3.2 Gen1 Type-C connector

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x TPM connector

1x Clear CMOS jumper

Rear panel connectors

1x HDMI

1x DisplayPort

2x USB 3.2 Gen1 (USB 3.0)

3x USB 3.2 Gen2 (USB 3.1 Gen2)

2x USB 2.0

1x RJ-45

1x Q-Flash Plus button

1x optical S/PDIF output

5x audio jacks

Dimensions

30.5 x 24.4 cm

ATX format
