FIXED - MSI PRO B760-P WIFI DDR4 / Intel B760 / LGA1700 / 4x DDR4 / 2x M.2 / HDMI / DP / USB-C / WiFi / ATX

FIXED – MSI PRO B760-P WIFI DDR4 / Intel B760 / LGA1700 / 4x DDR4 / 2x M.2 / HDMI / DP / USB-C / WiFi / ATX

111,60 €

SKU: MotherboardsFIXED-MSI-PRO-B760-P-1700 Category: Tag:

Description

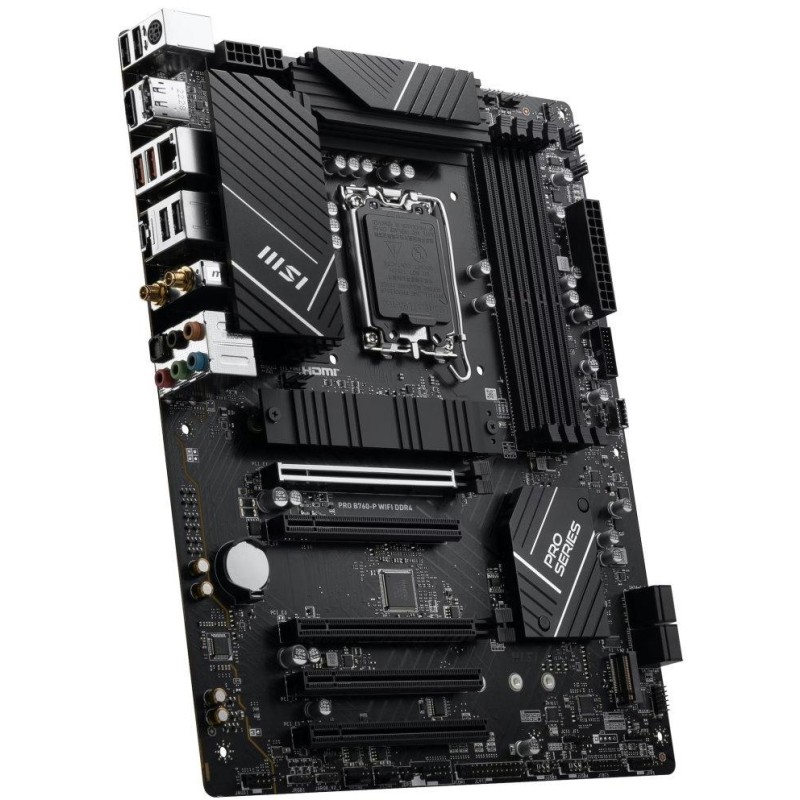

MSI PRO B760-P WIFI DDR4

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without the use of a corresponding processor, these outputs will be inoperative.

CPU

Support for 12th and 13th generation Intel Core/ Pentium/ Celeron processors (LGA1700 socket)

Chipset

Intel B760

Memory

4x DDR4 memory slots, support up to 128 GB

Support DDR4 5333 (OC)/ 5200 (OC)/ 5066 (OC)/ 5000 (OC)/ 4800 (OC)/ 4600 (OC)/ 4400 (OC)/ 4266 (OC)/ 4200 (OC)/ 4000 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3200 (JEDEC)/ 2933 (JEDEC)/ 2666 (JEDEC)/ 2400 (JEDEC)/ 2133 (JEDEC) MHz

Dual-channel memory architecture

Support non-ECC, unbuffered memory

Intel Extreme Memory Profile (XMP) support

Slots

Intel CPU

1x PCIe 4.0 x16 slot

Intel B760 chipset

1x PCIe 4.0 x16 slot

3x PCIe 3.0 x16 slot (supports x1 mode)

Graphic arts

1x HDMI port, supporting max. resolution 4K at 60 Hz

1x DisplayPort port, supporting max. resolution 4K at 60 Hz

Storage

Intel CPU

1x M.2 slot, M Key, for units of type 22110/2280/2260/2242 (PCIe 4.0 x4 mode)

Intel B760 chipset

4x SATA 6Gb/s ports

1x M.2 slot, M Key, for 2280/2260/2242 type units (SATA and PCIe 4.0 x4 mode)

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA drives

USB

8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

2x USB 3.2 Gen1 (USB 3.0) ports available via internal USB connector

2x USB 3.2 Gen2 type A port on the back panel

1x USB 3.2 Gen1 Type C port available via internal USB connector

1x USB 3.2 Gen2 Type-C on the back panel

Audio

Realtek ALC897 Codec

7.1 channel High Definition Audio

HIND

1x Realtek RTL8125BG 2.5Gigabit LAN controller

WLAN/Bluetooth

Intel Wi-Fi 6E

Wi-Fi 802.11a/b/g/n/ac/ax

Dual Band (2.4 GHz, 5 GHz, 6 GHz)

MU-MIMO TX/RX support

Data transfer speed up to 2.4 Gbps

Bluetooth 5.3

Internal connectors

1x 24-pin ATX main power connector

1x 8-pin 12V power connector

1x 4-pin ATX 12V power connector

1x 4-pin CPU fan connector

1x 4-pin water cooling pump fan connector

5x 4-pin system fan connector

1x front panel audio connector

2x system panel connector

1x case opening detection connector

1x TPM connector (supports TPM 2.0)

1x serial port connector

1x parallel port connector

1x TBT connector (supports RTD3)

1x Clear CMOS jumper

4x EZ Debug LEDs

1x 4-pin RGB LED connector

2x 3-pin connector A-RAINBOW V2 ARGB LED

2x USB 2.0 connector (supports 4x USB 2.0 port)

1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)

1x USB 3.2 Gen1 Type-C connector

Rear panel ports

1x PS/2

4x USB 2.0

1x DisplayPort

1x HDMI

1x RJ-45

2x USB 3.2 Gen2 (USB 3.1 Gen2) type A

1x USB 3.2 Gen2 Type-C

2x Wi-Fi connectorand antennas

5x audio jacks

1x optical S/PDIF output

Dimensions

30.4 x 24.4 cm

ATX format

Additional information

Brand

FIXED
Model

FIXED
Warranty period for registration number (months)

6
Manufacturer

MSI
Warranty length (months)

12
Processed

Approved
Wi-Fi

Yes
RJ-45 (number)

1
Dimensions

304 × 244 mm
USB 2.0 (number)

4
Gigabit LAN

Yes
Wi-Fi standard

802.11a/b/g/n/ac/ax
USB Type C (number)

1
Analog audio input/output (number)

5
HDMI (number)

1
TDP (W)

150
USB 3.1 (number)

2
RAM type

DDR4
Chipset

Intel B760
Number of memory slots

4
DisplayPort (number)

1
Motherboard format

ATX
PCI Express X16 (number)

5
RAID controller

Yes
Processor socket

1700
M.2 port (for expansion cards)

No
SATA III (number)

4
M.2 port (number)

2
Optical audio output (number)

1
SPDIF optical (number)

1
